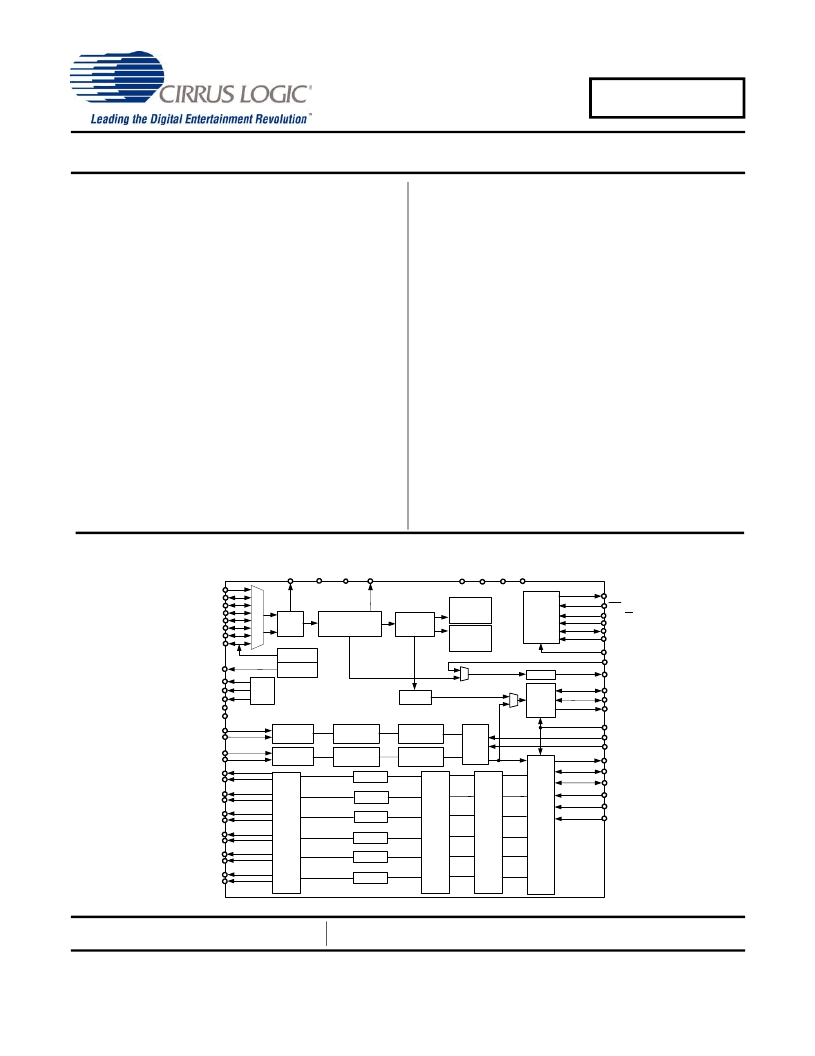

Preliminary Product Information
This document contains information for a new product.
Cirrus Logic reserves the right to modify this product without notice.
Copyright
Cirrus Logic, Inc. 2005
(All Rights Reserved)
Cirrus Logic, Inc.
http://www.cirrus.com
CS42526
114 dB, 192 kHz 6-Ch Codec with S/PDIF Receiver
Features
z
Six
24-bit D/A, two 24-bit A/D Converters
z
114 dB DAC / 114 dB ADC Dynamic Range
z
-100 dB THD+N
z
System Sampling Rates up to 192 kHz
z
S/PDIF Receiver Compatible with EIAJ CP1201
and IEC-60958
z
Recovered S/PDIF Clock or System Clock
Selection
z
8:2 S/PDIF Input MUX
z
ADC High-pass Filter for DC Offset Calibration
z
Expandable ADC Channels and One-line Mode
Support
z
Digital Output Volume Control with Soft Ramp
z
Digital +/-15dB Input Gain Adjust for ADC
z
Differential Analog Architecture
z
Supports logic levels between 5 V and 1.8 V.
General Description
The CS42526 codec provides two analog-to-digital and six dig-
ital-to-analog delta-sigma converters, as well as an integrated
S/PDIF receiver, in a 64-pin LQFP package.
The CS42526 integrated S/PDIF receiver supports up to eight
inputs, clock recovery circuitry and format auto-detection. The
internal stereo ADC is capable of independent channel gain
control for single-ended or differential analog inputs. All six
channels of DAC provide digital volume control and differential
analog outputs. The general purpose outputs may be driven
high or low, or mapped to a variety of DAC mute controls or
ADC overflow indicators.
The CS42526 is ideal for audio systems requiring wide dynam-
ic range, negligible distortion and low noise, such as A/V
receivers, DVD receivers, digital speaker and automotive audio
systems.
ORDERING INFORMATION
CS42526-CQZ
CS42526-DQZ
CDB42528
-10° to 70° C
-40° to 85° C
Evaluation Board
64-pin LQFP
64-pin LQFP
Lead Free
Lead Free
RST
AD0/CS
RXP0
RXP1/GPO1
RXP2/GPO2
RXP3/GPO3
RXP4/GPO4
RXP5/GPO5
RXP6/GPO6
RXP7/GPO7
SCL/CCLK
SDA/CDOUT
VLC
OMCK
AOUTA1+
AOUTB1+
AOUTA3+
AOUTA2-
AOUTA2+
AOUTB2-
AOUTB3+
AOUTB3-
AINL+
AINR+
AINR-
FILT+
VQ
REFGND
Ref
ADC#1
ADC#2
Digital Filter
Digital Filter
Gain & Clip
Gain & Clip
CX_SCLK
CX_LRCK
CX_SDIN3
CX_SDIN2
CX_SDIN1
DGND
VD
LPFLT
TXP
INT
Rx
Clock/Data
Recovery
S/PDIF
Decoder
Control
Port
DAC#1
DAC#2
DAC#3
DAC#4
DAC#5
DAC#6
D
V
DGND
VD
MUTEC
GPO
MUTE
A
VARX
AGND
AGND
VA
CODEC
Serial
Port
CX_SDOUT
ADCIN1
ADCIN2
VLS
SAI_LRCK
SAI_SCLK
SAI_SDOUT
RMCK
Serial
Audio
Interface
Port
ADC
Serial
Data
Internal MCLK
Mult/Div
DEM
C&U Bit
Data Buffer
Format
Detector
JAN ‘05
DS585PP5
