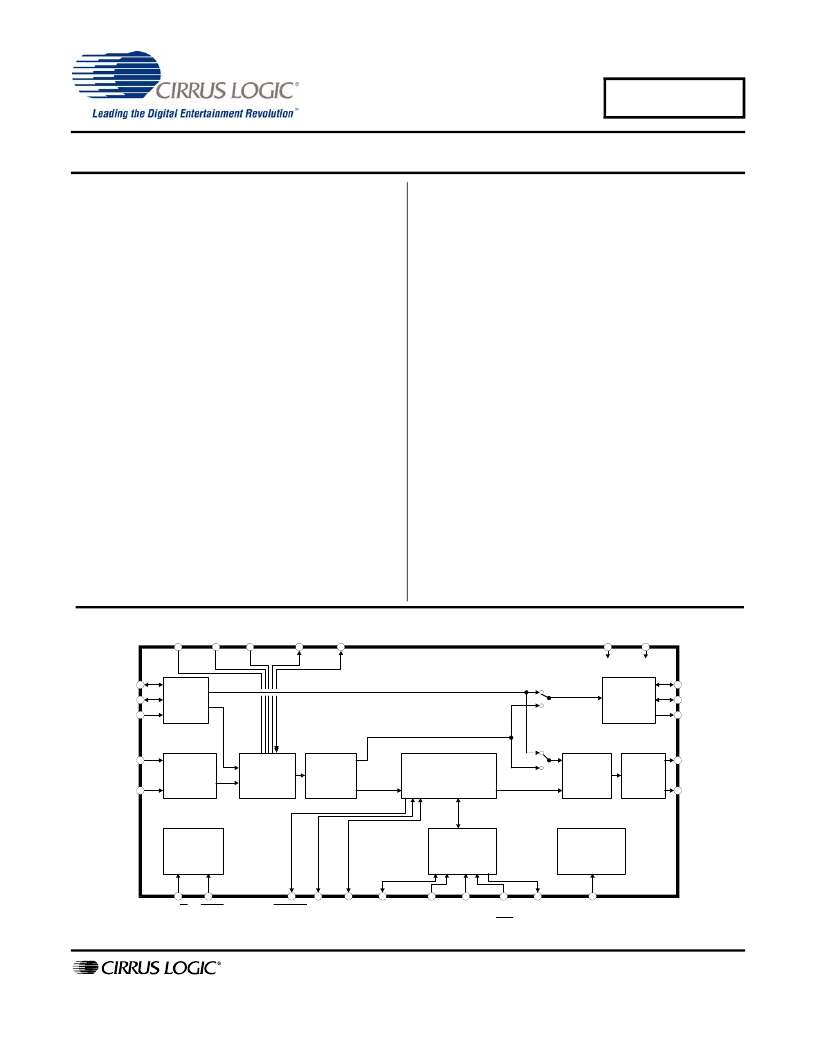

1
Copyright
Cirrus Logic, Inc. 2005
(All Rights Reserved)
www.cirrus.com
CS8427
96 kHz Digital Audio Interface Transceiver
Features
z
Complete EIAJ CP1201, IEC-60958, AES3,
S/PDIF-compatible Transceiver
z
+5.0 V Analog Supply (VA+)
z
+3.3 V or +5.0 V Digital Interface (VL+)
z
Flexible 3-wire Serial Digital I/O Ports
z
Adjustable Sample Rate up to 96 kHz
z
Low-jitter Clock Recovery
z
Pin and Microcontroller Read/Write Access to
Channel Status and User Data
z
Microcontroller and Standalone Modes
z
Differential Cable Driver and Receiver
z
On-chip Channel Status and User Data Buffer
Memories Permit Block Reads & Writes
z
OMCK System Clock Mode
z
Decodes Audio CD Q Sub-code
General Description
The CS8427 is a stereo digital audio transceiver with
AES3 and serial digital audio inputs, AES3 and serial
digital audio outputs, and includes comprehensive con-
trol ability through a 4-wire microcontroller port. Channel
status and user data are assembled in block-sized buff-
ers, making read/modify/write cycles easy.
A low-jitter clock recovery mechanism yields a very clean
recovered clock from the incoming AES3 stream.
Target applications include A/V receivers, CD-R, DVD
receivers, multimedia speakers, digital mixing consoles,
effects processors, set-top boxes, and computer and au-
tomotive audio systems.
ORDERING INFORMATION
CS8427-CS
CS8427-CSZ, Lead Free 28-pin SOIC -10 to +70°C
CS8427-CZ
28-pin TSSOP -10 to +70°C
CS8427-DS
28-pin SOIC -40 to +85°C
CS8427-DZ
28-pin TSSOP -40 to +85°C
CDB8427
Evaluation Board
28-pin SOIC -10 to +70°C
I
Serial
Audio
Input
Clock &
Data
Recovery
Misc.
Control
AES3
S/PDIF
Encoder
Serial
Audio
Output
Receiver
AES3
S/PDIF
Decoder
C & U bit
Data
Buffer
Control
Port &
Registers
Output
Clock
Generator
RXN
RXP
ILRCK
ISCLK
SDIN
OLRCK
OSCLK
SDOUT
TXP
TXN
RST
OMCK
EMPH U
TCBL SDA/
CDOUT
SCL/
CCLK
AD1/
CDIN
AD0/
CS
INT
VA+ AGND FILT
RERR
VL+
DGND
H/S
RMCK
Driver
JAN ‘05
DS477F3
