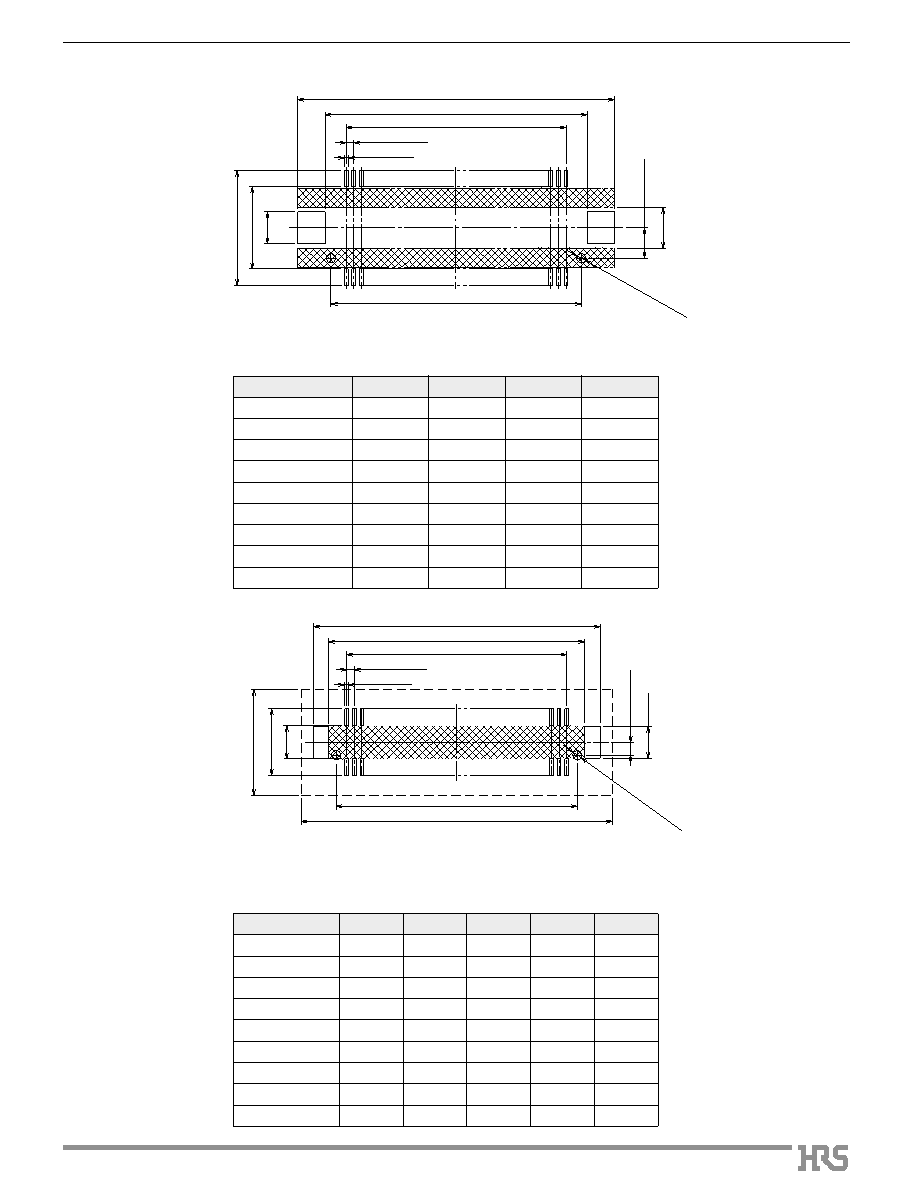

A209
DF16 Seriesq0.5mm Pitch SMT Board to Board Connector
Number of Contacts
14
16
20
30
34
40
50
60
80
C
03.0
03.5
04.5
07.0
08.0
09.5
12.0
14.5
19.5
G
05.0
05.5
06.5
09.0
10.0
11.5
14.0
16.5
21.5
M
09.4
09.9
10.9
13.4
14.4
15.9
18.4
20.9
25.9
N
05.8
06.3
07.3
09.8
10.8
12.3
14.8
17.3
22.3
qReceptacle
sRecommended PCB mounting pattern
qHeader (Board to Board 2.0, 2.5mm)
Number of Contacts
14
16
20
30
34
40
50
60
80
B
03.0
03.5
04.5
07.0
08.0
09.5
12.0
14.5
19.5
E
04.4
04.9
05.9
08.4
09.4
10.9
13.4
15.9
20.9
G
07.4
07.9
08.9
11.4
12.4
13.9
16.4
18.9
23.9
H
05.4
05.9
06.9
09.4
10.4
11.9
14.4
16.9
21.9
K
09.0
09.5
10.5
13.0
14.0
15.5
18.0
20.5
25.5
Note1: If the pattern is included in the shaded area, and is not treated with resist, it could touch the
connector contact.
Note2: If the boss isn't included, the boss hole shown in the above isn't required.
Note1: If the pattern is included in the shaded area, and is not treated with resist, it could touch the
connector contact .
Note2: If the boss isn't included, the boss hole shown in the above isn't required.
Note3: Don't install any part in the shaded area. If installed, the connectors can't be mated with each other.
2±0.03
0.6
+0.05
0
(Note
2)
G±0.03
2.7
0.25±0.02
P=0.5±0.02
C±0.03
N
0
M
+0.1
0
2.1
+0.1
0
5.4
0
-0.1
7.6
+0.1
0
0.85±0.03
0.6
(N
ote
2)
+0.05
0
E±0.03
K
2.2
0 -0.1
4.4
+0.1
0
7
0.25±0.02
P=0.5±0.02
B±0.03
H
0
-0.1
G
+0.1
0
2.1
+0.1
0
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
