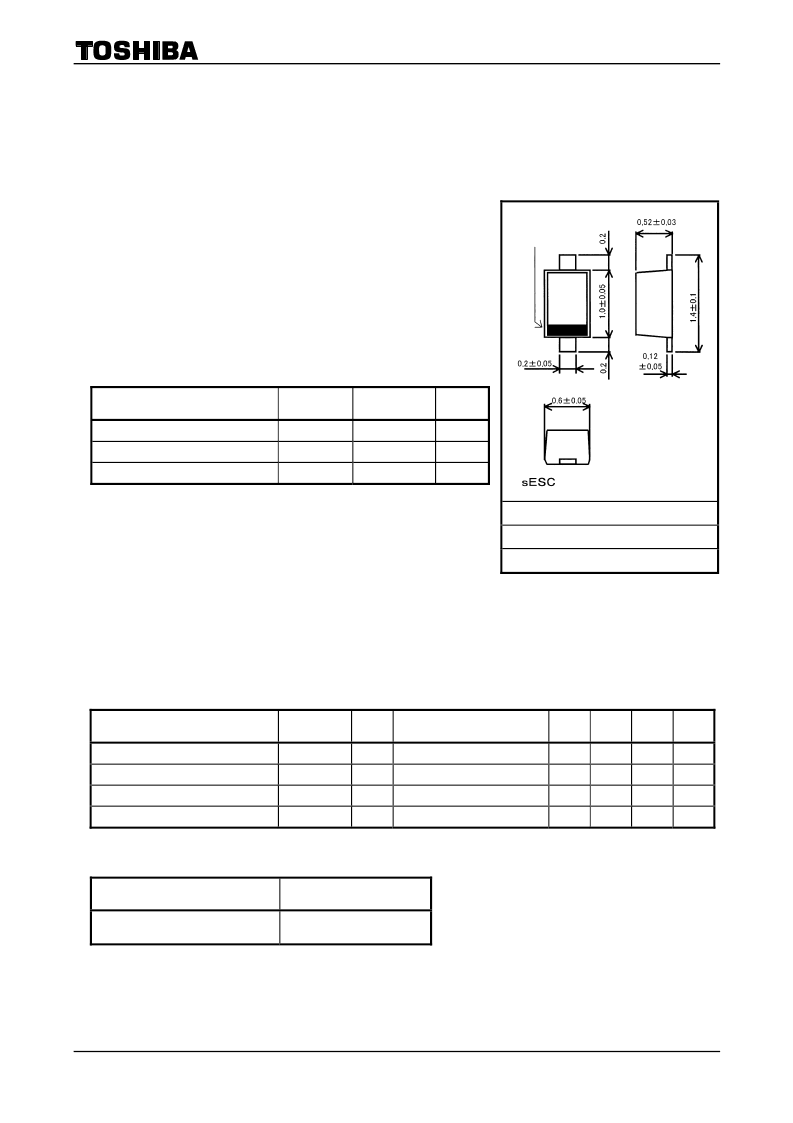

DF2S16S
2007-11-01
1
TOSHIBA Diodes for Protecting against ESD Epitaxial Planar Type
DF2S16S
Product for Use Only as Protection against Electrostatic
Discharge (ESD).
*
This product is for protection against electrostatic discharge (ESD)
only and is not intended for any other usage, including without
limitation, the constant voltage diode application.
z
2terminal ultra small package suitable for mounting on small space.
z
Low total capacitance: C
T
= 10 pF (typ.)
Absolute Maximum Ratings
(Ta = 25°C)
Characteristic
Symbol
Rating
Unit
Power dissipation
P
*
150
mW
Junction temperature
T
j
150
°C
Storage temperature range
T
stg
55~150
°C
Note: Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the
reliability significantly even if the operating conditions (i.e.
operating temperature/current/voltage, etc.) are within the
absolute maximum ratings.
Please design the appropriate reliability upon reviewing the
Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/“Derating Concept and Methods”) and
individual reliability data (i.e. reliability test report and estimated failure rate, etc).
*
: Mounted on a glass-epoxy circuit board of 20 × 20 mm, pad dimensions of 4 × 4 mm.
Electrical Characteristics
(Ta = 25°C)
Characteristic
Symbol
Test
Circuit
Test Condition
Min
Typ.
Max
Unit
Zener voltage
V
Z
―
I
Z
= 5 mA
15.3
16.0
17.1
V
Dynamic impedance
Z
Z
―
I
Z
= 5 mA
―
―
35
Ω
Reverse current
I
R
―
V
R
= 12 V
―
―
0.5
μ
A
Total capacitance
C
T
―
V
R
= 0 V, f = 1 MHz
―
10
―
pF
Guaranteed Level of ESD Immunity
Test Condition
ESD Immunity Level
IEC61000-4-2
(contact discharge)
±
12 kV
Judgment contents: No element destruction
Unit: mm
C
JEDEC
JEITA
TOSHIBA
1-1K1A
Weight: 0.0011 g (typ.)
