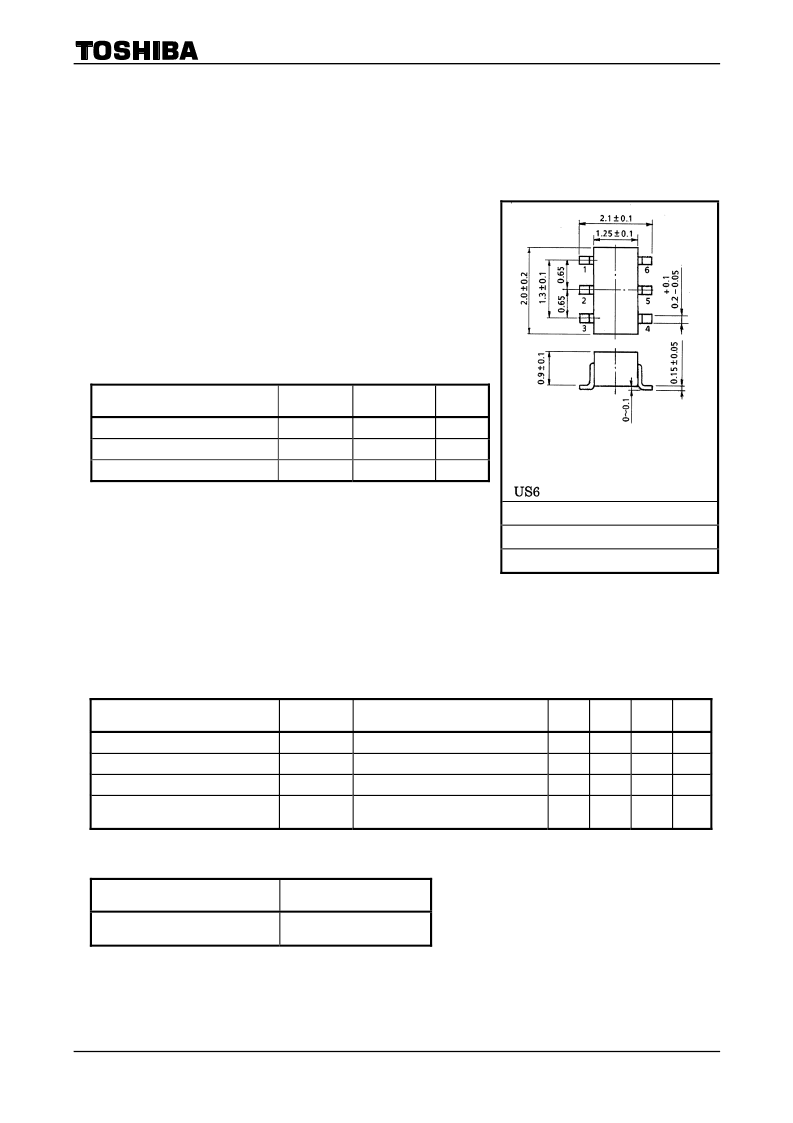

DF6A6.8FU
2007-11-01
1
TOSHIBA Diodes for Protecting against ESD Epitaxial Planar Type
DF6A6.8FU
Product for Use Only as Protection against Electrostatic
Discharge (ESD).
*
This product is for protection against electrostatic discharge (ESD)
only and is not intended for any other usage, including without
limitation, the constant voltage diode application.
z
The incorporation of four devices in an ultra-compact package reduces
the number of parts and lowers assembly cost.
Absolute Maximum Ratings
(Ta = 25°C)
Characteristic
Symbol
Rating
Unit
Power dissipation
P
200
mW
Junction temperature
T
j
150
°C
Storage temperature range
T
stg
55~150
°C
Note: Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the
reliability significantly even if the operating conditions (i.e.
operating temperature/current/voltage, etc.) are within the
absolute maximum ratings.
Please design the appropriate reliability upon reviewing the
Toshiba Semiconductor Reliability Handbook (“Handling
Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test report and
estimated failure rate, etc).
Electrical Characteristics
(Ta = 25°C)
Characteristic
Symbol
Test Condition
Min
Typ.
Max
Unit
Zener voltage
V
Z
I
Z
= 5mA
6.4
6.8
7.2
V
Dynamic impedance
Z
Z
I
Z
= 5mA
―
―
25
Reverse current
I
R
V
R
= 5V
―
―
0.5
μ
A
Terminal capacitance
(between Cathode and Anode)
C
T
V
R
= 0, f = 1MHz
―
45
―
pF
Guaranteed Level of ESD Immunity
Test Condition
ESD Immunity Level
IEC61000-4-2
(Contact discharge)
±
30 kV
Criterion: No damage to device elements
Unit: mm
1.CATHODE1
2.CATHODE2
3.ANODE2
4.CATHODE3
5.CATHODE4
6.ANODE1
JEDEC
JEITA
TOSHIBA
1-2T1A
Weight: 6.8 mg (typ.)
