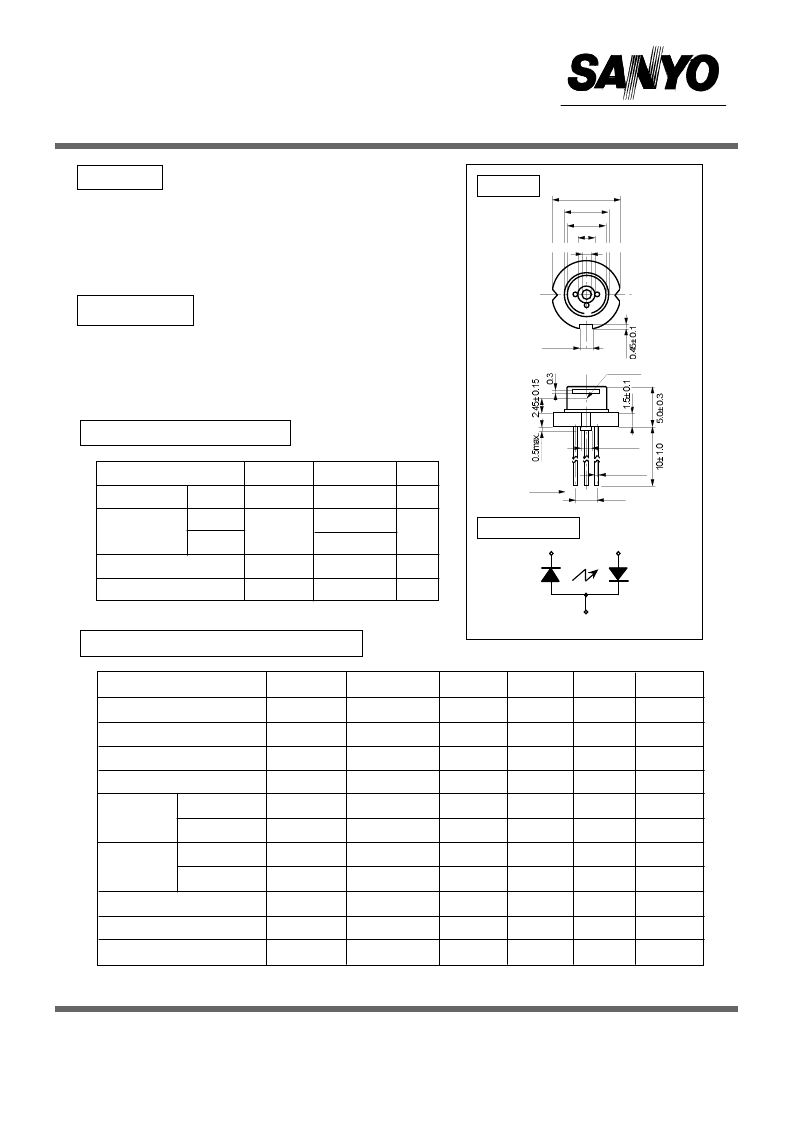

DL-8032-001
INFRARED LASER DIODE
Features
Lasing wavelength : 830 nm (Typ.)
High output power : 150 mW at 50°C
Low threshold current : Ith = 50 mA (Typ.)
Absolute Maximum Ratings
Electrical and Optical Characteristics
Tottori SANYO Electric Co., Ltd.
LED Division
5-318, Tachikawa, Tottori 680-8634 Japan
EIectronic Device Business Headquarters
TEL : +81-857-21-2137 FAX : +81-857-21-2161
Ver.4 Apr. 1999
Note : The above product specification are subject to change without notice.
Parameter
Light Output
Reverse
Voltage
2
30
Symbol
Po
Ratings
Unit
mW
V
R
V
Operating Temperature
Storage Temperature
-10 to +50
-40 to +85
Topr
Tstg
°C
°C
Laser
PD
CW
150
1) Full angle at half maximum
(Tc=25°C)
Parameter
Threshold Current
Operating Current
Lasing Wavelength
Symbol
Ith
Iop
Lp
Condition
Po=150mW
Po=150mW
Min.
-
-
815
Typ.
50
185
830
Max.
70
220
840
Unit
mA
mA
nm
Beam
Divergence
Perpendicular
Parallel
Differential Efficiency
Monitoring Output Current
Off Axis
Angle
Qv
Qh
dAv
dQh
dPo/dIop
Im
Po=150mW
Po=150mW
Po=150mW
12
5
-
-
18
7
-
1.0
0.5
25
11
± 3
± 3
-
°
°
°
°
mW/mA
mA
1)
Astigmatism
Ac
Po=150mW
10
μm
-
-
-
-
-
-
CW
Operating Voltage
Vop
Po=150mW
-
1.8
2.2
V
0.15
Package
3
1
PD
LD
2
Pin Connection
(Tc=25°C)
Perpendicular
Parallel
1
3.0
4.75± 0.15
5.35
9.0 - 0.03
Top view
1.0± 0.1
Effective window diameter 2.0min.
2
3
2.54
Pin No.
1.4max.
LD facet
3 -
1
3
2
2.0
0.7
Tolerance : ± 0.2
(Unit : mm)
Applications
Bar-code scanner
Laser beam printer
