FAN53180
PRODUCT SPECIFICATION
16
REV. 1.0.0 6/10/03

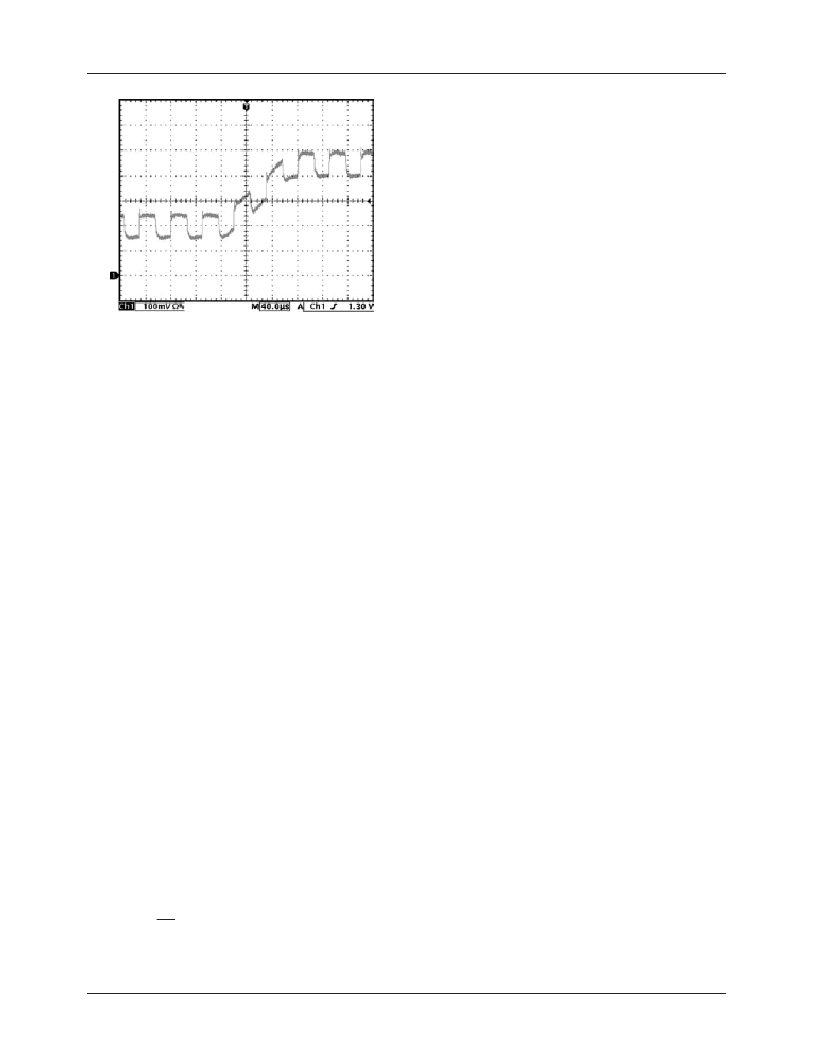

Figure 4. VID On-the-Fly Waveforms, Circuit of Figure 1,
VID Change = 5mV, 5μs, 50 steps,
I
OUT
Change = 5A to 65A
Power Good Monitoring
The Power Good comparator monitors the output voltage via
the CSREF pin. The PWRGD pin is an open drain output
whose high level (when connected to a pull-up resistor)
indicates that the output voltage is within the nominal limits
specified in the specifications above based on the VID
voltage setting. PWRGD will go low if the output voltage is
outside of this specified range. PWRGD is blanked during a
VID OTF event for a period of 250μs to prevent false signals
during the time the output is changing.
Output Crowbar
As part of the protection for the load and output components
of the supply, the PWM outputs will be driven low (turning
on the low-side MOSFETs) when the output voltage exceeds
the upper Power Good threshold. This crowbar action will
stop once the output voltage has fallen below the release
threshold of approximately 450mV.
Turning on the low-side MOSFETs pulls down the output as
the reverse current builds up in the inductors. If the output
overvoltage is due to a short of the high side MOSFET, this
action will current limit the input supply or blow its fuse,
protecting the microprocessor from destruction.
Output Enable and UVLO
The input supply (VCC) to the controller must be higher
than the UVLO threshold and the EN pin must be higher
then its logic threshold for the FAN53180 to begin switch-
ing. If UVLO is less than the threshold or the EN pin is a
logic low, the FAN53180 is disabled. This holds the PWM
outputs at ground, shorts the DELAY capacitor to ground,
and holds the ILIMIT pin at ground.
In the application circuit, the ILIMIT pin should be con-
nected to the OD pins of the FAN53418 drivers. Because
ILIMIT is grounded, this disables the drivers such that both
DRVH and DRVL are grounded. This feature is important to
prevent discharging of the output capacitors when the con-
troller is shut off. If the driver outputs were not disabled,
then a negative voltage could be generated on the output due
to the high current discharge of the output capacitors through
the inductors.
APPLICATION INFORMATION
The design parameters for a typical Intel VRD10-compliant
CPU application are as follows:
Input voltage (V
IN
) = 12 V
VID setting voltage (V
VID
) = 1.500 V
Duty cycle (D) = 0.125
Nominal output voltage at no load (V
ONL
) = 1.480 V
Nominal output voltage at 65 A load (V
OFL
) = 1.3955 V
Static output voltage drop based on a 1.3 m
load line
(R
O
) from no load to full load
(V
D
) = V
ONL
– V
OFL
= 1.480 V – 1.3955 V = 84.5 mV
Maximum Output Current (I
O
) = 65 A
Maximum Output Current Step (
I
O
)= 60A
Number of Phases (n) = 3
Switching frequency per phase (f
SW
) = 228 kHz
Setting the Clock Frequency
The FAN53180 uses a fixed-frequency control architecture.
The frequency is set by an external timing resistor (R
T
).
The clock frequency and the number of phases determine the
switching frequency per phase, which relates directly to
switching losses and the sizes of the inductors and input
and output capacitors. With n = 3 for three phases, a clock
frequency of 684kHz sets the switching frequency of each
phase, f
SW
, to 228kHz, which represents a practical trade-off
between the switching losses and the sizes of the output filter
components. TPC 1 shows that to achieve a 684kHz oscilla-
tor frequency, the correct value for R
T
is 301k
. Alterna-
tively, the value for R
T
can be calculated using:
where 5.83pF and 1.5M
are internal IC component
values. For good initial accuracy and frequency stability,
it is recommended to use a 1% resistor.
Soft-Start and Current Limit Latch-Off Delay Times
Because the soft-start and current limit latch off delay
functions share the DELAY pin, these two parameters must
be considered together. The first step is to set C
DLY
for the
soft-start ramp. This ramp is generated with a 20μA internal
current source. The value of R
DLY
will have a second order
impact on the soft-start time because it sinks part of the
current source to ground. However, as long as R
DLY
is kept
greater than 200k
, this effect is minor. The value for C
DLY
can be approximated using:
R
T
n
f
SW
×
5.83pF
×
(
)
------------------
–
--------------------------------------------------------------------------
=
(1)
C
DLY
20
μ
A
V
DLY
-----------------------
–
t
V
VID
------------
×
=
(2)
