參數資料
| 型號： | FAN8008 |
| 廠商： | FAIRCHILD SEMICONDUCTOR CORP |
| 元件分類： | 光電元器件 |
| 英文描述： | 6-Channel Motor Drive IC |
| 中文描述： | CD MOTOR DRIVER, PQFP52 |
| 封裝： | 14 X 14 MM, HEAT SINK, QFP-48 |
| 文件頁數： | 1/24頁 |
| 文件大小： | 360K |
| 代理商： | FAN8008 |

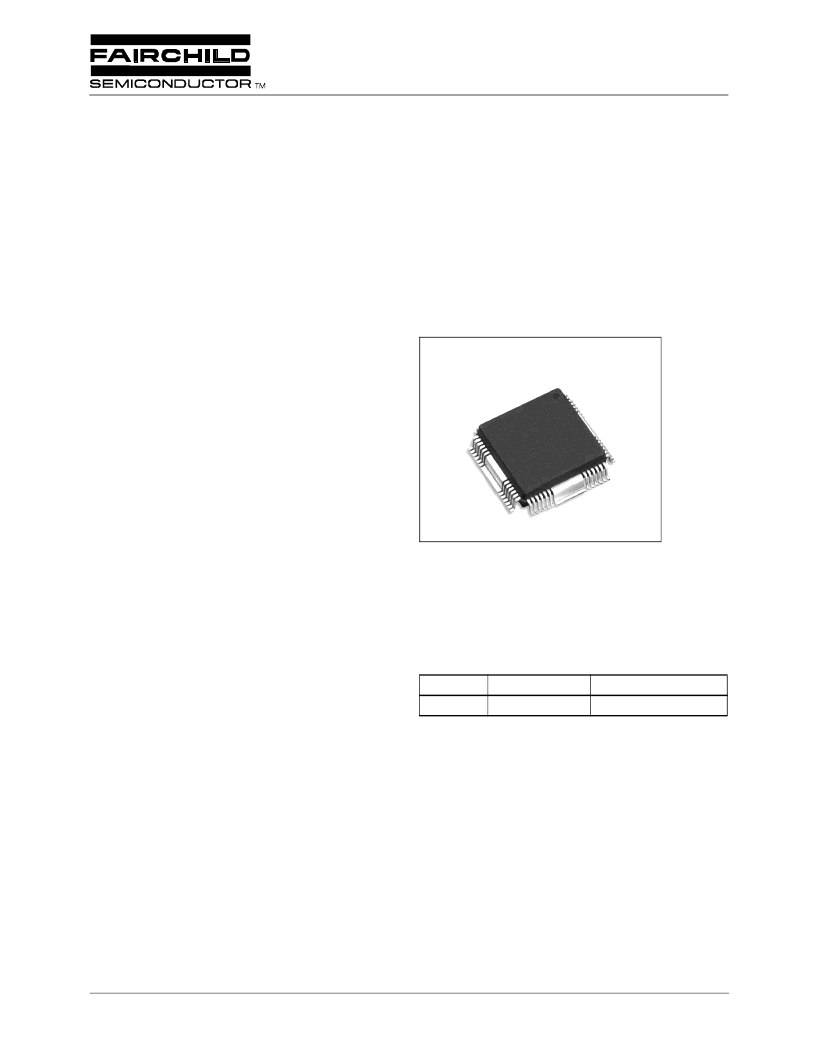

2000 Fairchild Semiconductor international
www.fairchildsemi.com
Rev. 1.0.1
February. 2000.
Features
4-CH balanced transformerless (BTL) driver
2-CH (forward-reverse) control DC motor driver
Operating supply voltage (4.5V ~ 16V)
Built-in thermal shut down circuit (TSD)
Built-in under voltage lockout circuit (UVLO)
Built-in over voltage protection circuit (OVP)
Built-in mute circuit (CH1, CH2, CH3 and CH4)
Built-in normal op-amp
Built-in 3.3V regulator with reset
Description
The FAN8008 is a monolithic integrated circuit suitable for a
6-ch motor driver which drives the tracking actuator, focus
actuator, sled motor, tray motor, change motor and spindle
motor of the CDP/CAR-CD systems.
48-QFPH-1414
Typical Applications
Compact disk player (CDP) with tray and changer
Video compact disk player (VCD) with tray and changer
Automotive compact disk player (CDP) with tray and
changer
Other compact disk media
Ordering Information
Device
FAN8008
Package
48-QFPH-1414
Operating Temp.
35
°
C ~ +85
°
C
FAN8008
6-Channel Motor Drive IC
