參數資料
| 型號： | FAN8403D3 |
| 廠商： | FAIRCHILD SEMICONDUCTOR CORP |
| 元件分類： | 運動控制電子 |
| 英文描述： | 3-Phase BLDC Motor Driver with PLL |
| 中文描述： | BRUSHLESS DC MOTOR CONTROLLER, 1 A, PDSO30 |
| 封裝： | 0.375 INCH, HEAT SINK, SSOP-28 |
| 文件頁數： | 1/12頁 |
| 文件大小： | 80K |
| 代理商： | FAN8403D3 |
2002 Fairchild Semiconductor Corporation
www.fairchildsemi.com
Rev.1.0.0

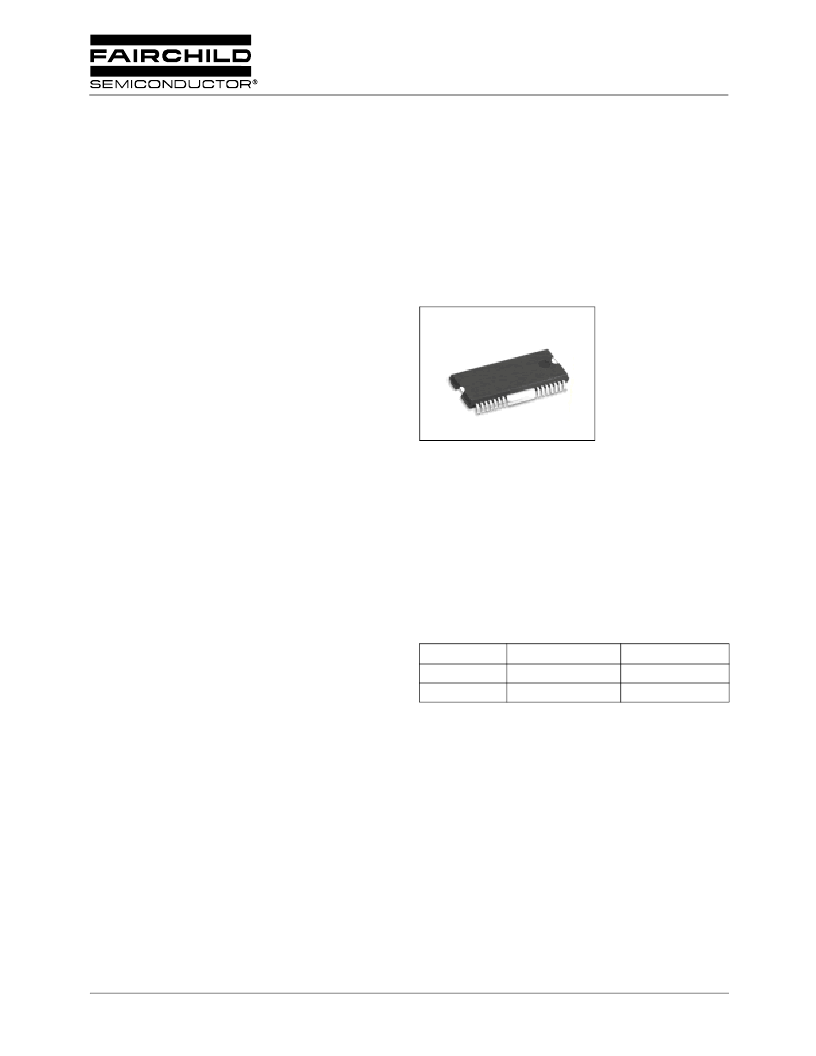

Features
3-Phase BLDC motor drive IC with speed control
Phase Locked Loop (PLL) speed control
Built-in phase locked detector output
External clock for control of motor speed
Built-in FG amplifier and FG schmidt comparator
Built-in integrating amplifier with phase error
Auto Gain Control (AGC) circuit for compensation hall
amplifier
Built-in protection circuits (over-current limit, under-
voltage limit, thermal shut down)
Description
The FAN8403D3 is a monolithic integrated circuit. It is suit-
able for polygon mirror motor of laser beam printer (LBP).
28-SSOPH-375SG2
Typical application
Polygon mirror motor for laser beam printer
Polygon mirror motor for facsimile
Polygon mirror motor for duplicator
Polygon mirror motor for multi-function printer
General 3 phase BLDC motor
Ordering Information
Device
FAN8403D3
Package
28-SSOPH-375SG2
Operating Temp.
20
°
C ~ +80
°
C
20
°
C ~ +80
°
C
FAN8403D3TF
28-SSOPH-375SG2
FAN8403D3
3-Phase BLDC Motor Driver w ith PLL
