參數資料
| 型號： | FAN8423D3TF |
| 廠商： | FAIRCHILD SEMICONDUCTOR CORP |
| 元件分類： | 運動控制電子 |
| 英文描述： | 3-Phase BLDC Motor Driver |
| 中文描述： | BRUSHLESS DC MOTOR CONTROLLER, 1.3 A, PDSO30 |
| 封裝： | 0.375 INCH, HEAT SINK, SSOP-28 |
| 文件頁數： | 2/18頁 |
| 文件大小： | 249K |
| 代理商： | FAN8423D3TF |

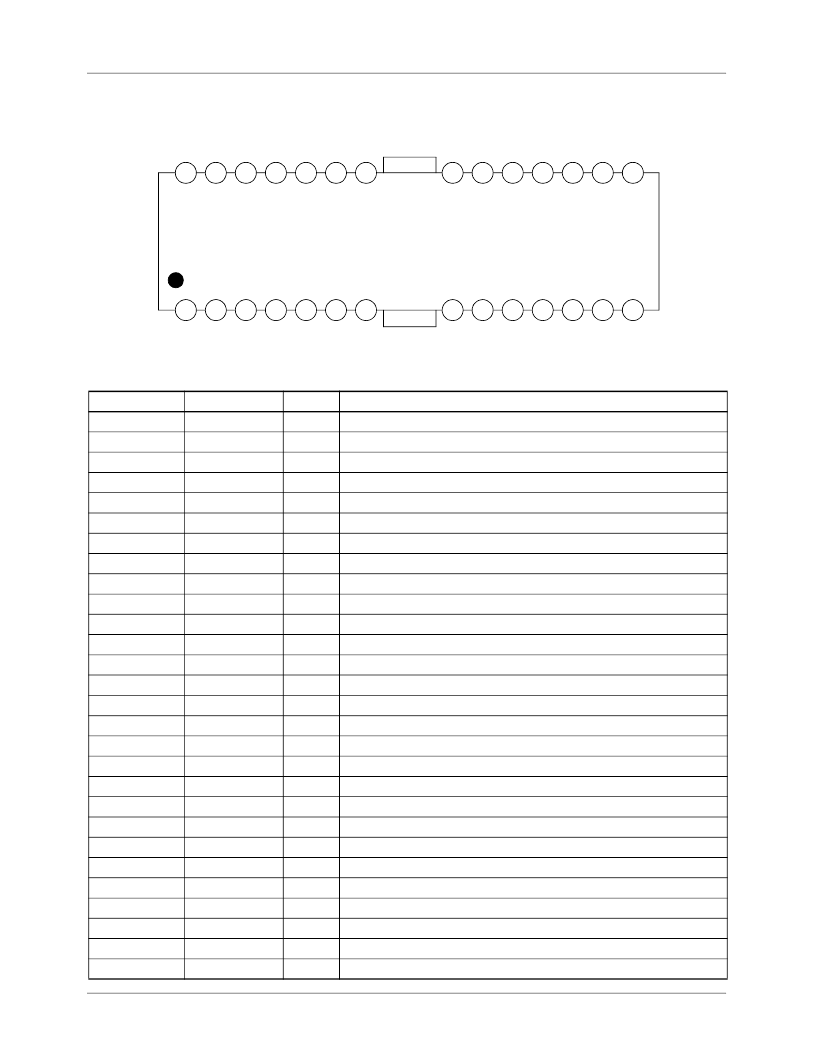

FAN8423D3
2
Rev. 1.0.1
Oct. 2000.
Pin Assignments
Pin Definitions
Pine Number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
Pin Name
NC
A3
NC
A2
NC
NC
A1
GND
H1+
H1-
H2+
H2-
H3+
H3-
VH
NC
PC1
SB
FG3X
DIR
ECR
EC
S/S
FG1X
VCC
NC
VM
CS1
I/O
-
O
-
O
-
-
O
-
I
I
I
I
I
I
I
-
-
I
O
O
I
I
I
O
-
-
-
-
Pin Function Description
No connection
Output (A3)
No connection
Output (A2)
No connection
No connection
Output (A1)
Ground
Hall signal (H1+)
Hall signal (H1-)
Hall signal (H2+)
Hall signal (H2-)
Hall signal (H3+)
Hall signal (H3-)
Hall bias
No connection
Phase compensation capacitor
Short brake
FG waveform (3X)
Rotational direction output
Output current control reference
Output current control voltage
Power save (Start/Stop switch)
FG waveform (1X)
Supply voltage (Signal)
No connection
Supply voltage (Motor)
Output current detection
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
FAN8423D3
N
A
N
A
N
A
N
G
H
H
H
H
H
H
C
V
N
V
S
E
F
E
D
F
S
P
N
V
FIN(GND)
FIN(GND)
