FAN8725 (KA3025)
18

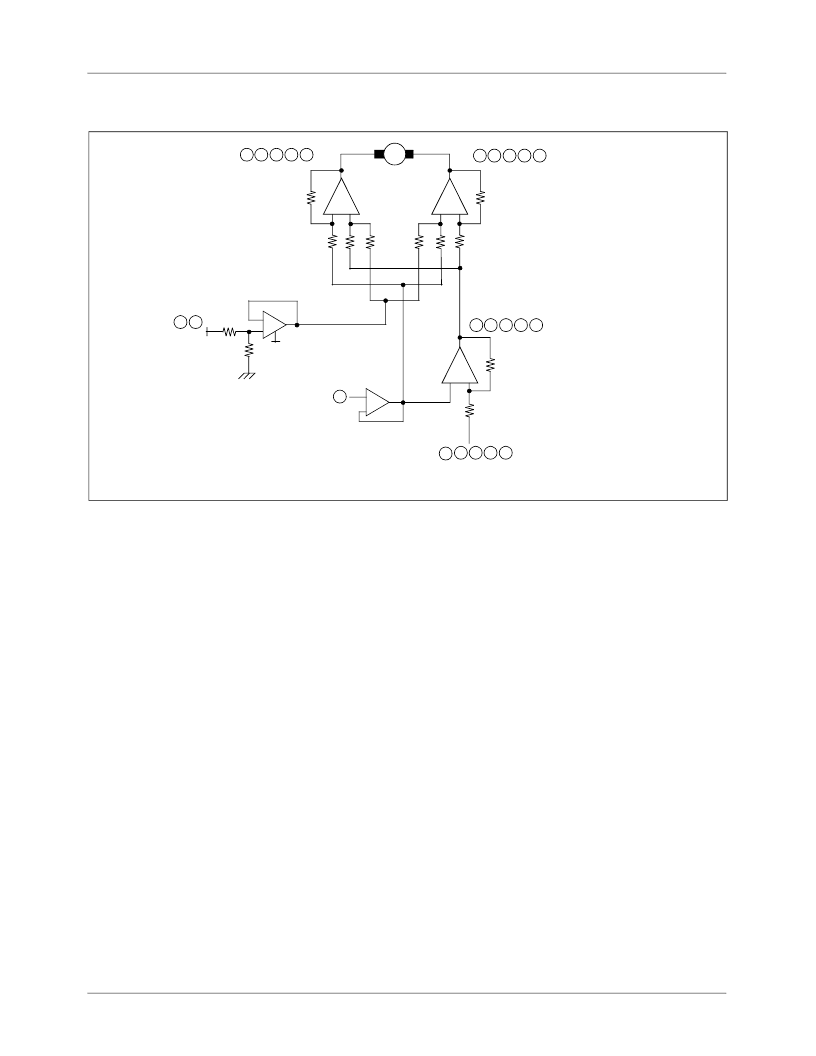

12. BTL DRIVE PART
The reference voltage REF is given externally through pin 42.
The error amp output signal is amplified by R2 / R1 times and then fed to the power amp circuit.
The power amp circuit produces the differential output voltages and drives the two output power amplifier circuit.
Since the differential gain of the output amplifiers of CH1/CH2 is equal to 2
×
(25K / 10K) , the output signal of the error
amp is amplified by (R2 / R1)
×
5.
Since the differential gain of the output amplifiers of CH3/CH4/CH5 is equal to 2
×
(40K / 10K) , the output signal of the
error amp is amplified by (R2 / R1)
×
8.
If the total gain is insufficient, the input error amp can be used to increase the gain.
The CH1/CH2 are generally used as actuator drive circuit so this channels are not affected by TSD circuit.
+
+
+
+
M
42
Vref
18 20 22
R1
R2
1
25K
(40K)
Power amp
24 39
17 19 21 24 38
+
R
R
VM2
(VM3)
25K
(40K)
25K
(40K)
25K
(40K)
1
1
1
VM2
(VM3)
DO+26 28 31 33 35
27 29 32 34 36
DO
Error
Amp
23 40
