FAN8727
18

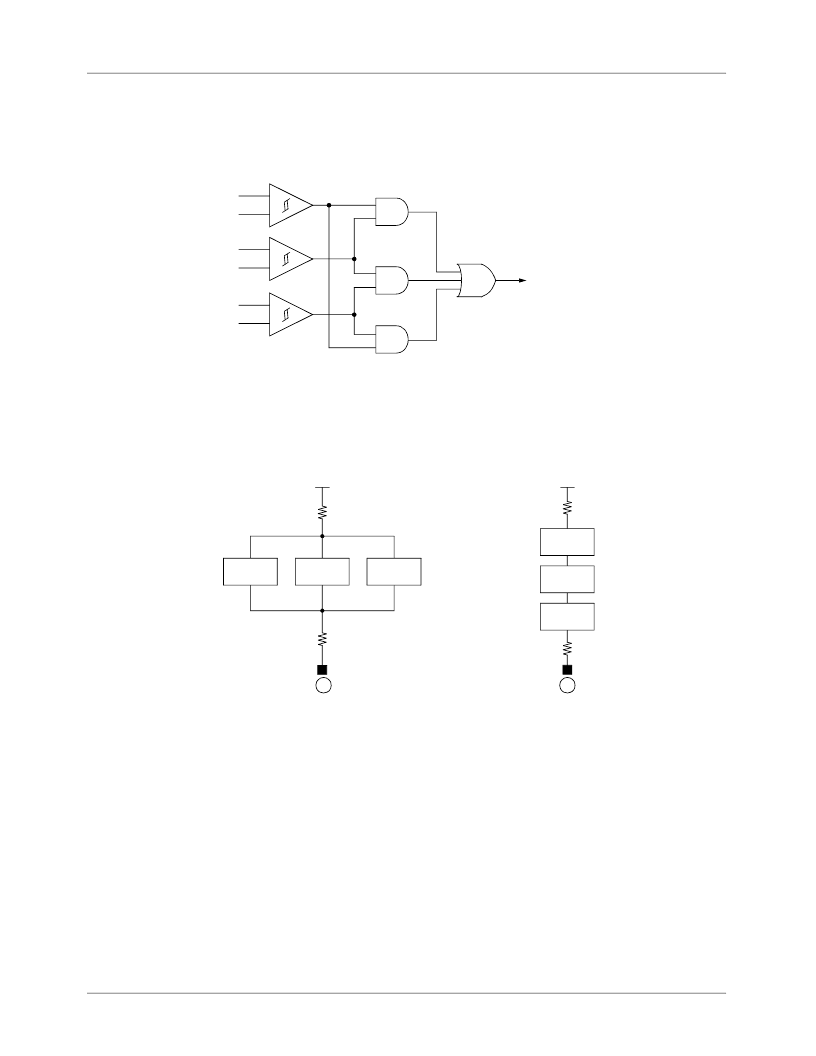

9. FG Output Function
The FG output, which detects the number of rotations of the MD, is generated by combination zero-crossing the output wave-
forms of the hall sensors. The FG output circuit is as shown below.
10. Hall Sensor Connection
External Hall sensors are used in series or parallel connection as shown below.
+
+
+
H1
H2
H3
FG OUTPUT
V
CC
HALL 1
HALL 2
HALL 3
1
VH
V
CC
HALL 1
HALL 2
HALL 3
1
VH
