參數資料
| 型號： | FM50S3X_NL |
| 廠商： | Fairchild Semiconductor Corporation |
| 元件分類： | 溫度/濕度傳感器 |
| 英文描述： | Analog Temperature Sensor |
| 中文描述： | 模擬溫度傳感器 |
| 文件頁數： | 1/8頁 |
| 文件大小： | 50K |
| 代理商： | FM50S3X_NL |
www.fairchildsemi.com
REV. 1.1.0 10/5/04
Features
Analog output: 10 mV/°C
Range: -40 to 125°C range:
Accuracy: ±2°C at 25°C
Supply Current, 170 μA max.
Output Drive, 25 μA
Self-heating < 0.1°C
Operating Voltage: +2.4V to +6V
Applications
Mobile Phones
Computers
Battery Management
Office Equipment
HVAC
Power Supply Modules
Disk Drives
Automotive
Description
As a precision CMOS temperature sensor, the FM50 is
cost-effective for accurate low-power temperature monitor-
ing applications. Output voltage versus temperature is
extremely linear. With no load, the supply current is
typically 130μA. For normal operation, the load on V
should be 100K
or less.
OUT
In a typical application, a remotely mounted FM50 is
monitored by a microcontroller with an analog A/D
converter input. Alternatively, the FM50 can drive a
comparator with a high impedance input.
Accuracy is typically ± 0.5°C at room temperature; and
better than ±2°C from 0 to 75°C.
Available in both standard and Lead Free 3-pin SOT-23
package.

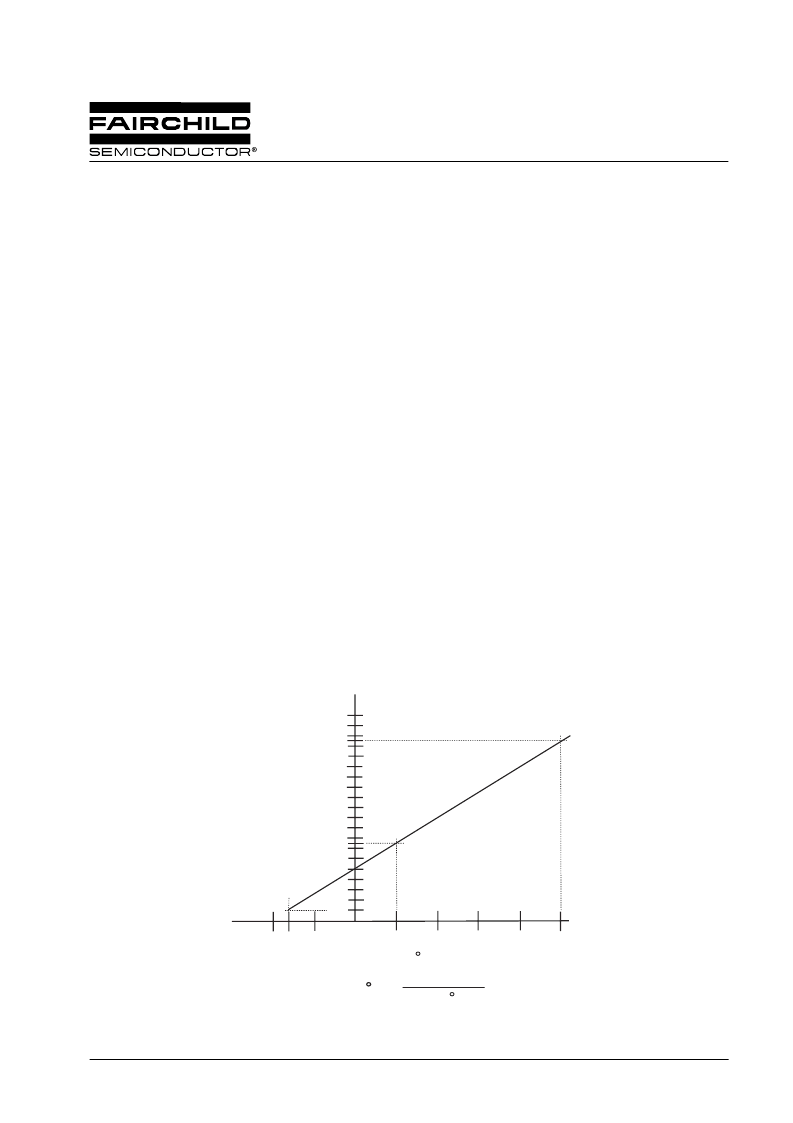

Thermal Response
FM50
Analog Temperature Sensor
-50 -40
-25
25
50
75
100
125
100
V
OUT
(mV)
Temperature ( C)
0
Temperature ( C) =
V
OUT
- 500 mV
10 mV/ C
500
1750
750
FM50 Output Voltage vs. Temperature
