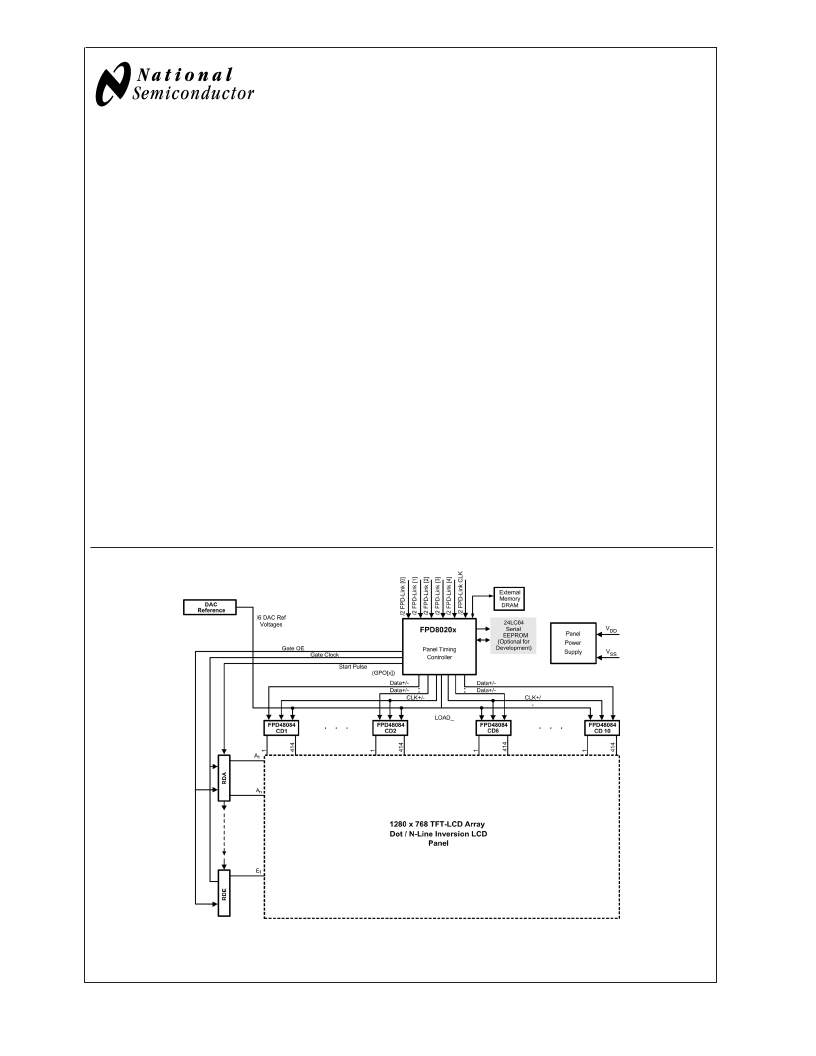

FPD80200
LCD TV TFT-LCD Timing Controller with PPDS
Interface
General Description
The FPD80200 timing controllers (TCONs) are designed to
meet the needs of today’s advanced LCD TV applications.
The FPD80200 supports both WXGA (1280 x 768) and
WXGA+ (1366 x 768) resolutions with true 8-bit color (16.7
million colors).
When combined with the FPD48084 column driver, the
FPD80200 provides true independent gamma curves for the
red, green, and blue subpixels through internal lookup tables
(LUTs). The FPD80200 also uses an advanced Response
Time Compensation algorithm to improve the motion video
performance of the LCD panel.
The FPD80200 TCONs incorporate National’s PPDS
inter-
face (Point to Point Differential Signaling) that enables ad-
vanced features, independent column driver control, large
panel sizes, and lower overall system cost.
Panel timing and control parameters can be programmed
into an internal ROM for production or changed using and
external EEPROM for initial product development.
Features
n
Targeted at WXGA (1280x768) and HDTV (1366x768)
applications for LCD TV
n
Differential point-to-point interface to column drivers
n
10-bit resolution LUT for digital independent gamma
support
n
Response time compensation support (8-8-8) includes
external DDR memory interface
n
Single FPD-Link
input bus for high speed, low EMI
n
90 MHz input clock rate
n
Operating Supply Range: V
cc
= 2.25 to 2.75V
n
Optional 3.3V Outputs to support Row Driver
compatibility
n
Optional EEPROM programming allows finetuning in
development and production environments. (24LC64 or
equivalent)
n
EDID version 1.3 and 2.0 supported with the optional
EEPROM.
n
Internal pattern generation for panel self-test
n
Supports data configuration for 384 or 414 output
column drivers
n
144-pin LQFP package
20108801
ADVANCE INFORMATION
May 2004
F
2004 National Semiconductor Corporation
DS201088
www.national.com
