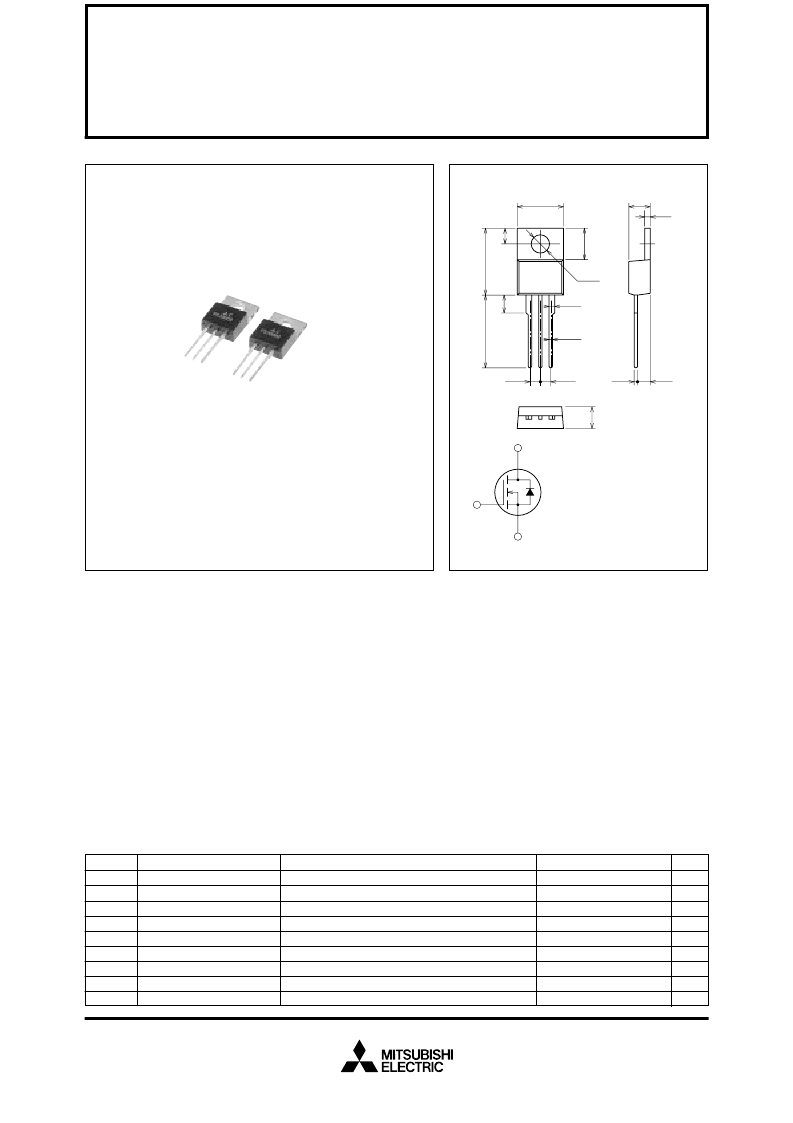

PRELIMINARY
Some parametric limits are subject to change.
Sep.1998
FS20UMA-5A
OUTLINE DRAWING
Dimensions in mm
TO-220
MITSUBISHI Nch POWER MOSFET
FS20UMA-5A
HIGH-SPEED SWITCHING USE
APPLICATION
C
S
Switch for CRT Display monitor
250
±20
20
60
20
90
–55 ~ +150
–55 ~ +150
2.0
V
GS
= 0V
V
DS
= 0V
L = 200
μ
H
Typical value
Drain-source voltage
Gate-source voltage
Drain current
Drain current (Pulsed)
Avalanche drain current (Pulsed)
Maximum power dissipation
Channel temperature
Storage temperature
Weight
V
V
A
A
A
W
°C
°C
g
V
DSS
V
GSS
I
D
I
DM
I
DA
P
D
T
ch
T
stg
—
Symbol
MAXIMUM RATINGS
(Tc = 25°C)
Parameter
Conditions
Ratings
Unit
G
10V DRIVE
G
V
DSS ...............................................................................
250V
G
r
DS (ON) (MAX) .............................................................
0.20
G
I
D.........................................................................................
20A
10.5MAX.
4.5
1.3
φ
3.6
3
1
1
3
1.0
0.8
2.54
2.54
4
0.5
2.6
7
GATE
DRAIN
SOURCE
DRAIN
