August 2006
F
2005 Fairchild Semiconductor Corporation
FSAV433 Rev. 1.4.1
www.fairchildsemi.com
FSAV433
High-Bandwidth (550MHz) Three-Channel 3:1 Video
Switch
Features
■
Ground between channels to optimize isolation and
reduce hostile crosstalk
■
-70dB non-adjacent channel crosstalk at 30MHz
■
6.5
Ω
typical On Resistance (R
ON
)
■
-3dB bandwidth: 550MHz
■
Low power consumption (1μA max)
Applications
■
RGB Video Switch in LCD, Plasma, and Projection
displays
■
DVD-RW, notebook
Description
The FSAV433 is an ultra-low power, high-bandwidth
video switch specially designed for switching three ana-
log video signals, including computer RGB and high-def-
inition YPbPr signals. The wide bandwidth (550MHz) of
the switch allows signal passage with minimum edge
and phase distortion, while
70dB non-adjacent channel
crosstalk generates negligible image noise between
active channels. Optimized differential gain and phases
maintain the image integrity of video applications, while
low On Resistance offers low signal insertion loss.
The Fairchild switch family derives from and embodies
Fairchild’s proven switch technology used for years in its
74LVX3L384 (FST3384) bus switch product.
Ordering Information
Notes:
1.
Pb-Free package per JEDEC J-STD-020B.

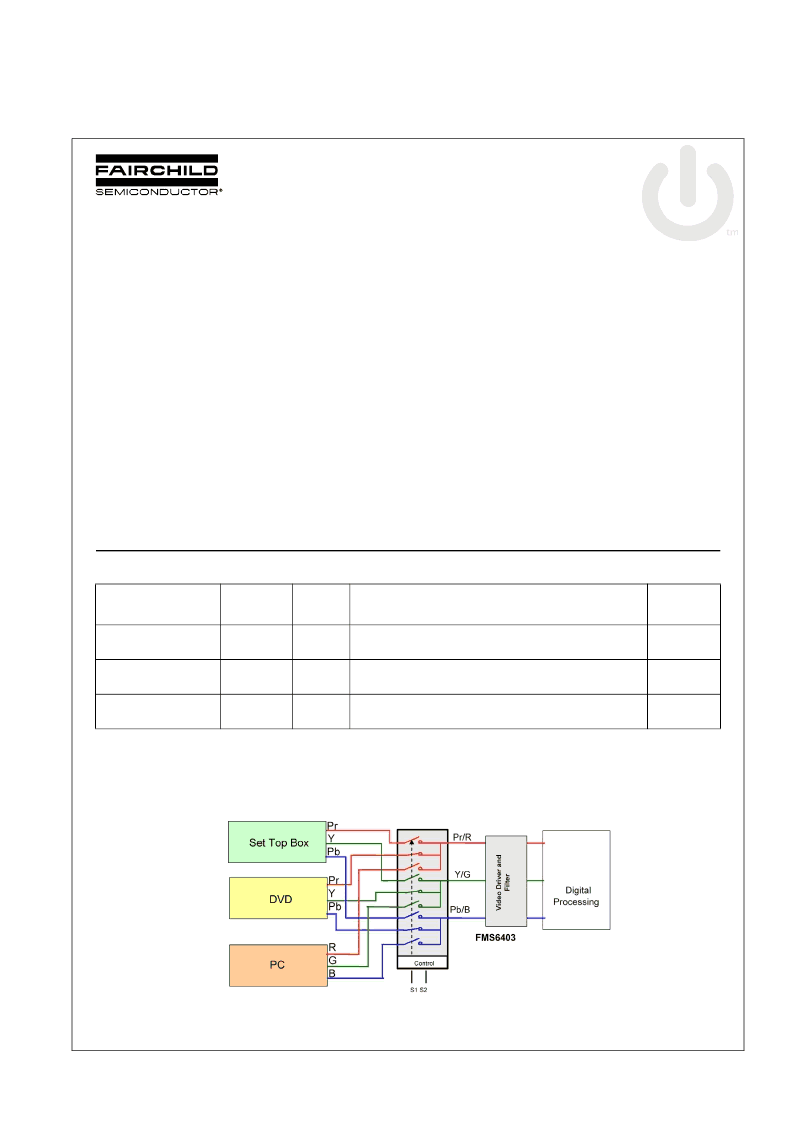

Application Diagram
Order Number
Package
Number
Pb-
Free
(1)
Package Description
Packing
Method
FSAV433BQX
MLP020B
Yes
20-Terminal Depopulated Quad Very-Thin Flat Pack No
Leads (DQFN), JEDEC MO-241, 2.5 x 4.5mm
Tape & Reel
FSAV433MTC
MTC20
Yes
20-Lead Thin Shrink Small Outline Package (TSSOP),
JEDEC MO-153, 4.4mm Wide
Tube
FSAV433MTCX
MTC20
Yes
20-Lead Thin Shrink Small Outline Package (TSSOP),
JEDEC MO-153, 4.4mm Wide
Tape & Reel
