參數資料
| 型號： | FSDH0165 |
| 廠商： | FAIRCHILD SEMICONDUCTOR CORP |
| 元件分類： | 穩(wěn)壓器 |
| 英文描述： | Fairchild Power Switch(FPS) |
| 中文描述： | 0.7 A SWITCHING REGULATOR, 100 kHz SWITCHING FREQ-MAX, PDIP8 |
| 封裝： | DIP-8 |
| 文件頁數： | 1/8頁 |
| 文件大小： | 93K |
| 代理商： | FSDH0165 |
2001 Fairchild Semiconductor Corporation
www.fairchildsemi.com
Rev.1.0.4
Features
Single Chip 650V 1A SenseFET PowerSwitch
Precision Fixed Operating Frequency (100kHz)
Internal Start-up Switch
UVLO with Hysterisis (6.7V/8.7V)
Over Load Protection (typ. 4.5V)
Over Current Protection (typ. 0.6A)
Internal Thermal Shutdown Function
Secondary Side Regulation
Auto-restart mode
No load consumption <250mW at 265VAC input
Applications
Charger & Adaptor for Mobile Phone, PDA & MP3
Auxiliary Power for PC
Description
The FSDH0165 is specially designed for an off-line SMPS with
minimal external components. The FSDH0165 is a monolithic
high voltage power switching regulator that combine the
SenseFET(LDMOS) with voltage mode PWM control block.
Included PWM controller features integrated fixed oscillator,
under voltage lock out, leading edge blanking, optimized gate
turn-on/turn-off driver, thermal shut down protection and
temperature compensated precision current sources for loop
compensation and fault protection circuitry. compared to
discrete MOSFET and controller or R
CC
switching converter
solution, a FSDH0165 can reduce total component count,
design size, weight and at the same time increase efficiency,
productivity, and system reliability. It has a basic platform well
suited for cost effective design in a flyback converter.
1.Vstr 2.Vfb 3.4.5.6.GND 7.Vcc 8.Drain
8-DIPH
1

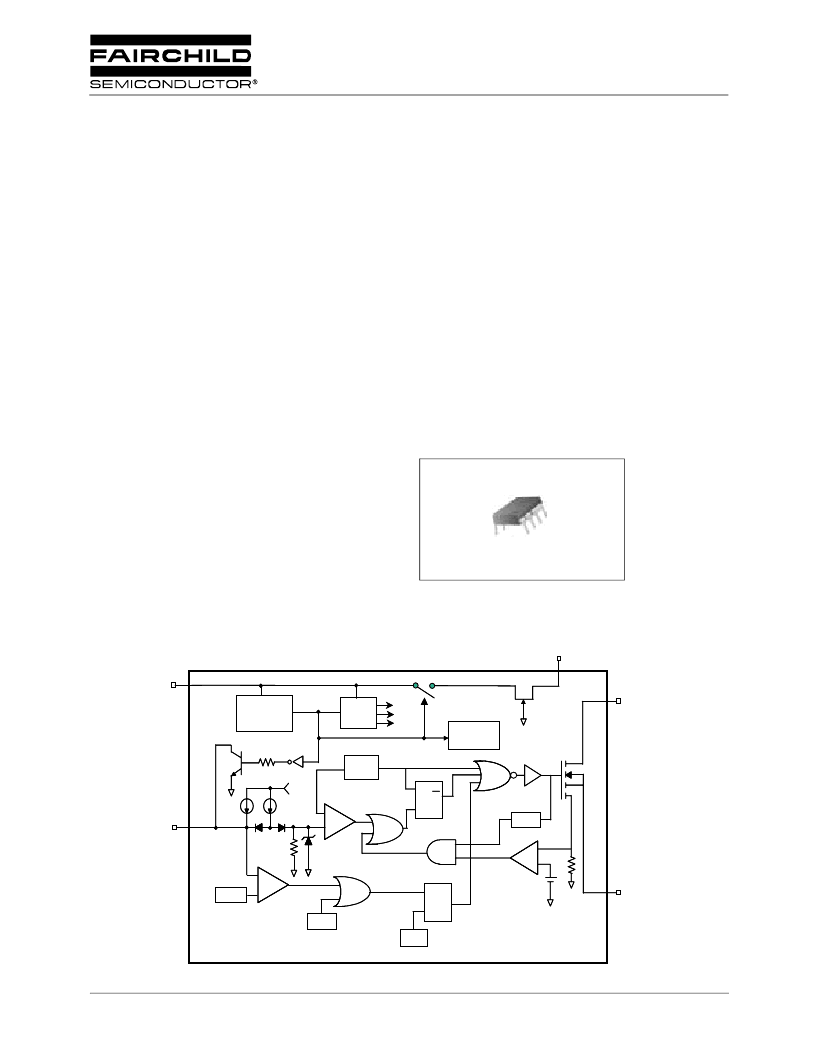

Internal Block Diagram
FS DH0165
Fairchild Power S witch(FPS)
#8 : Drain
GND
#7 : Vcc
#2 : Vfb
SFET
VREF
OSC
BIAS
_
+
5.8V
0.45 mA
5 uA
+
_
4.5V
TSD
Q
S
R
÷4
L.E.B
_
+
Vth
VREG(5.8V)
Q
S
R
#1 : Vstr
OLP
PWM
OCP
UVLO
≥
8.7V
UVLO
≤
6.7V
#3,#4,#5,#6
4.5V
INTERNAL
UVLO
