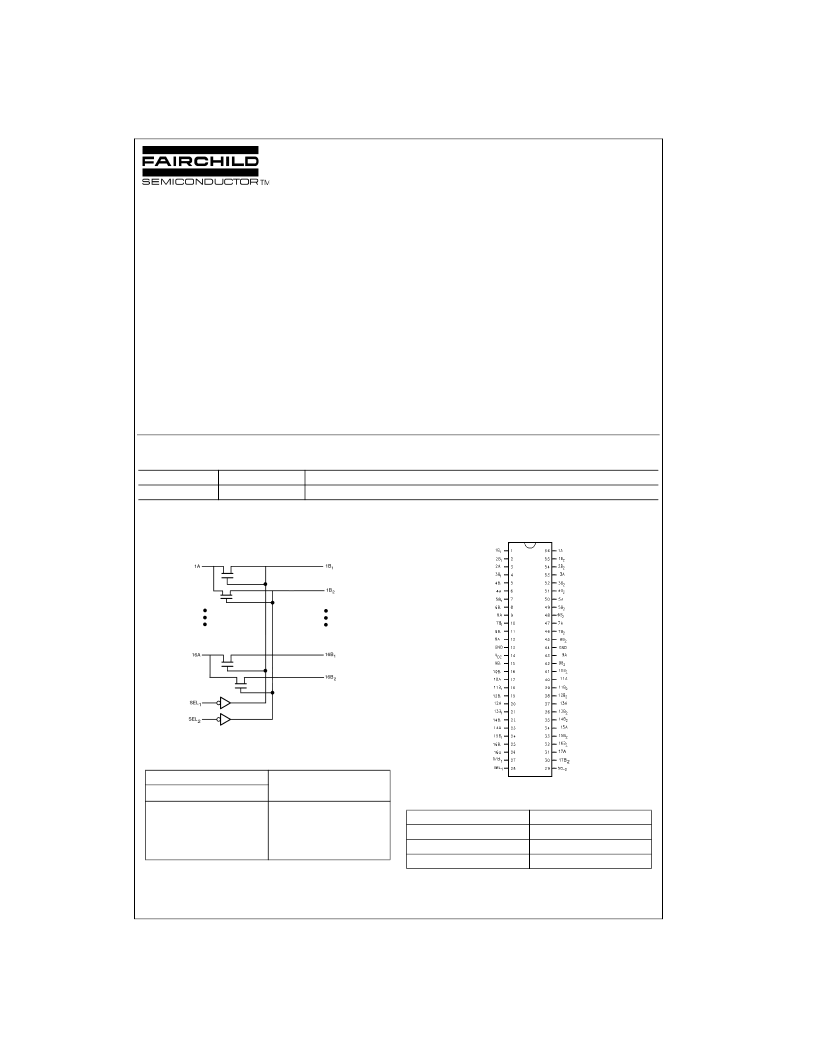

2000 Fairchild Semiconductor Corporation
DS500450
www.fairchildsemi.com
October 2000
Revised December 2000
F
FST34170
17-Bit to 34-Bit Multiplexer/Demultiplexer Bus Switch
General Description
The Fairchild Switch FST34170 is a 17-bit to 34-bit high-
speed CMOS TTL-compatible multiplexer/demultiplexer
bus switch. The low on resistance of the switch allows
inputs to be connected to outputs without adding propaga-
tion delay or generating additional ground bounce noise.
The device can be used in applications where two buses
need to be addressed simultaneously. The FST34170 is
designed so that the A Port demultiplexes into B
1
or B
2
or
both.
Two select (SEL
1
, SEL
2
) inputs provide switch enable con-
trol.
Features
I
Slower Output Enable times prevent signal disruption
I
4
switch connection between two ports.
I
Minimal propagation delay through the switch.
I
Low l
CC
.
I
Zero bounce in flow-through mode.
I
Control inputs compatible with TTL level.
I
See Applications Note AN-5008 for details
Ordering Code:
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Logic Diagram
Truth Table
Connection Diagram
Pin Descriptions
UHC
is a trademark of Fairchild Semiconductor Corporation.
Order Number
FST34170MTD
Package Number
MTD56
Package Description
56-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
Inputs
Function
SEL
1
L
H
L
H
SEL
2
H
L
L
H
x A
=
x B
1
x A
=
x B
2
x A
=
x B
1
and x B
2
Switch Open
Pin Name
SEL
1
, SEL
2
A
B
1
, B
2
Description
Select Inputs
Bus A
Bus B
