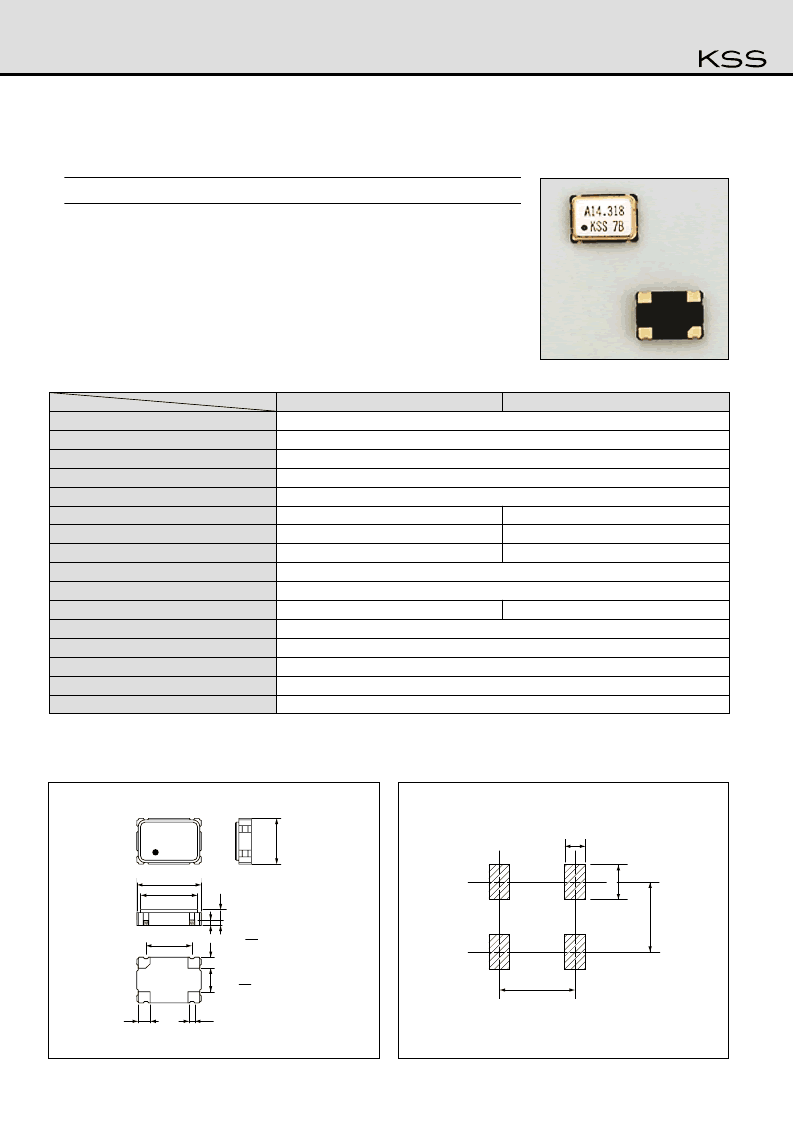

FXO-32F
Miniature Clock Crystal Oscillator
I
Features
Ideal for use as an image sensor clock for compact video cameras.
Lower noise and lower current for reduced power consumption.
This crystal oscillator has a built-in C-MOS IC with tri-state function.
I
Specifications
I
Outline
I
Land Pattern(reference)
Item
Type
FXO-32F
FXO-32FL
Frequency Range
8.0~32.0MHz
Standard Frequency
14.31818, 17.734476, 28.375, 28.63636MHz *1
Frequency Stability
±
30
×
10
–
6
Operating Temperature Range
-10~+60
:
Storage Temperature Range
-20~+80
:
Supply Voltage
5V
±
5%
3V
±
5%
Current
12mA MAX.
8mA MAX.
Load
15pF (2TTL)
15pF (1TTL)
Output Level
V
OH
: 0.9
×
V
DD
MIN. V
OL
: 0.5V MAX.
Output Symmetry
40~60% (VT=1/2V
DD
)
Rise Time/Fall Time
12ns MAX.
16ns MAX.
Start-up Time
3ms MAX.
Vibration
10~55Hz Ampulitude 1.5mm, Cycle 2 minute, 3 direction, 2 hour each
Shock
1000G
Weight
0.2g
Application
for Audio-Visual Equipment
*1 Please inquire about frequencies other than the above.
*2 3.3V supply model also available.
* Taping item packaging : one unit 3,000 pcs or 1,000 pcs
*2
0
1
2
7.0
±
0.2
6.2
±
0.2
32.000
KSS 4G
1
2
3
4
1
±
0
5
±
0
5.08
±
0.2
1.4
0.6
CONNECTION
1:INH
2:GND
3:OUTPUT
4:V
DD
INH:Hi or Open:Fout
Low:Output-Stop
(L Level)
5.08
2
4
1.8
Dimensions(mm)
FXO-32F
