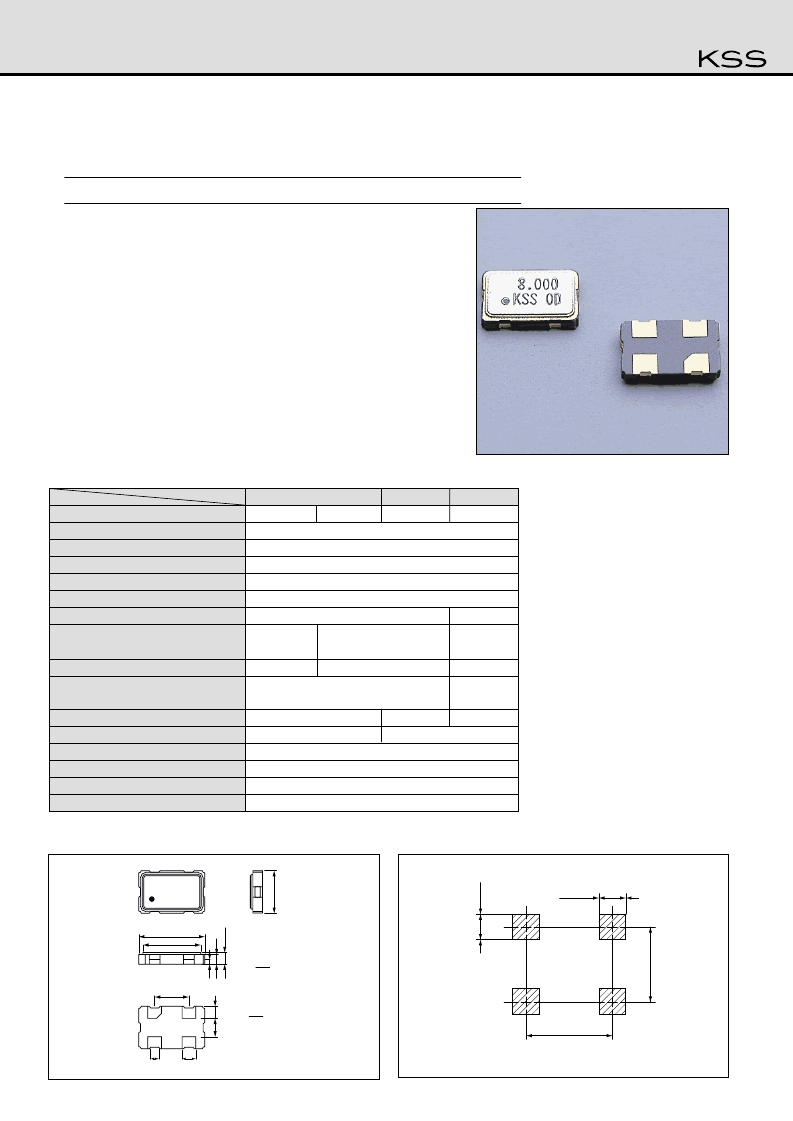

FXO-61F
Miniature Clock Crystal Oscillator
I
Features
Ultra-thin,thickness (5
×
3.2
×
1.2mm).
It is a compact and thin ceramic package with a matalized lead for surface
mounting that is able to be automatically loaded.
Reflow soldering is possible.
CMOS, TTL IC direct drive is possible. Depending upon the frequency
band, there is also a crystal oscillator with a CMOS-IC with a tri-state
function built in.
Use in the broad frequency band from 1.8MHz to 50MHz is possible.
I
Specifications
I
Outline
Item
Type
FXO-61F
FXO-61FH
C-MOS Output
Heavy Load Type
FXO-61FT
FXO-61FL
Application
C-MOS Output Type
TTL Output Type
Low Voltage Type
Frequency Range
1.8~50MHz
Standard Frequency
*1
Frequency Stability
±
100
×
10
–
6
Operating Temperature Range
-10~+70
:
Storage Temperature Range
-55~+125
:
Supply Voltage
5V
±
0.5V
25mA MAX. (1.8~15.0MHz)
30mA MAX. (15.1~32.0MHz)
45mA MAX. (32.1~50.0MHz)
3.3V
±
0.3V
18mA MAX.
(1.8~39.9MHz)
25mA MAX.
(40.0~50.0MHz)
Current
25mA MAX.
Load
15pF (LS10TTL)
50pF (10TTL)
20pF (5TTL)
Output Level
V
OH
: 0.9
×
V
DD
MIN.
V
OH
: 0.9
×
V
DD
MIN.
V
OL
: 0.5V MAX.
V
OL
: 0.4V MAX.
40~6(VT=1/2V
Output Symmetry
40~60%(VT=1/2V
DD
)
40~60%(VT=1.4V)
DD
)
Rise Time/Fall Time
10ns MAX.
6ns MAX.
Start-up Time
10ms MAX.
Vibration
10~55Hz Amplitude 1.5mm, Cycle 2 minute, 3 direction, 2 hour each
Shock
1000G
Weight
0.1g
*1 Please contact us for standard frequency.
I
Land Pattern(reference)
Dimensions(mm)
1.6
2
2.54
1
FXO-61F
KSS 8K
CONNECTION
1:INH
2:GND
3:OUTPUT
4:V
DD
INH:Hi or Open:Fout
Low:Output-Stop
(High Z)
0
1
1
0
1
5.0
±
0.15
4.5
40.000
2.54
±
0.1
3
±
0
0.6
1.2
#4
#3
#1
#2
#1
#4
#2
#3
