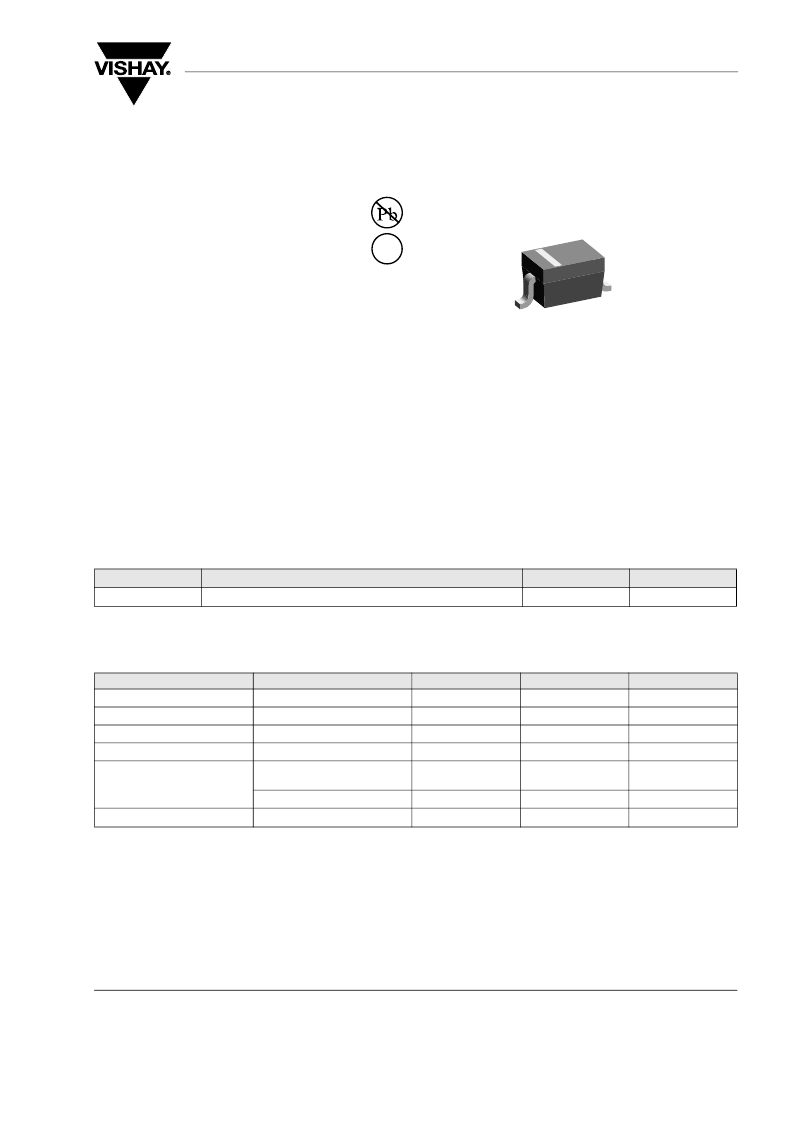

GSD2004WS-V
Vishay Semiconductors
Document Number 85730
Rev. 1.5, 17-May-06
www.vishay.com
1
20145
Small Signal Switching Diode, High Voltage
Features
Silicon Epitaxial Planar Diode
Fast switching diode,especially suited for
applications requiring high voltage capa-
bility
Lead (Pb)-free component
Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
Mechanical Data
Case
: SOD323 Plastic case
Weight
: approx. 5.0 mg
Packaging Codes/options
:
GS18/10 k per 13" reel (8 mm tape), 10 k/box
GS08/3 k per 7" reel (8 mm tape), 15 k/box
Parts Table
Absolute Maximum Ratings
T
amb
= 25 °C, unless otherwise specified
Parameter
Continuous reverse voltage
1)
Device on Fiberglass Substrate, see layout on second page
Part
Ordering code
Marking
Remarks
GSD2004WS-V
GSD2004WS-GS18 or GSD2004WS-GS08
B6
Tape and Reel
Test condition
Symbol
V
R
V
RRM
I
F
I
FRM
I
FSM
Value
240
Unit
V
Peak repetitive reverse voltage
300
V
Forward current (continuous)
225
mA
Peak repetitive forward current
625
mA
Non-repetitive peak forward
current
t
p
= 1 μs
4.0
A
t
p
= 1 s
I
FSM
P
tot
1.0
A
Power dissipation
200
1)
mW
e3
