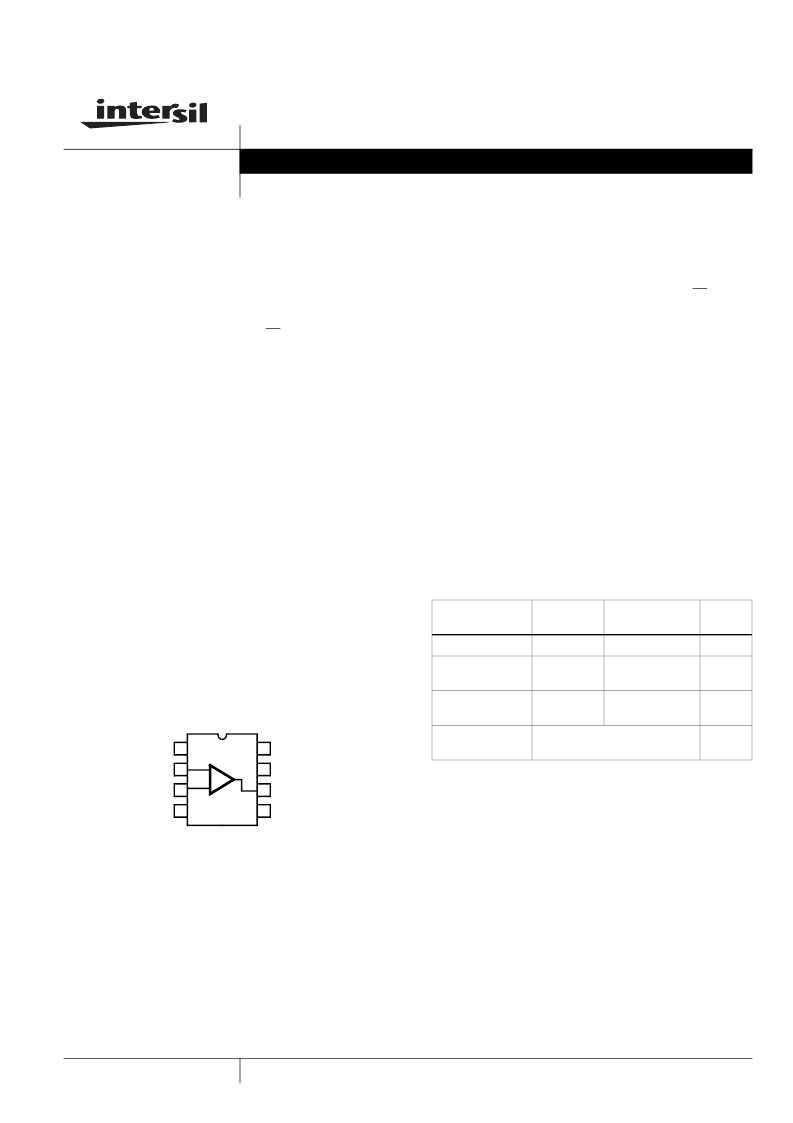

1
HA-5127, HA-5127A
8.5MHz, Ultra-Low Noise
Precision Operational Amplifier
The HA-5127 monolithic operational amplifier features an
unparalleled combination of precision DC and wideband
high speed characteristics. Utilizing the Intersil D. I.
technology and advanced processing techniques, this
unique design unites low noise (3nV/
√
Hz) precision
instrumentation performance with high speed (10V/
μ
s)
wideband capability.
This amplifier’s impressive list of features include low V
OS
(10
μ
V), wide unity gain-bandwidth (8.5MHz), high open loop
gain (1800V/mV), and high CMRR (126dB). Additionally, this
flexible device operates over a wide supply range (
±
5V to
±
15V) while consuming only 140mW of power.
Using the HA-5127 allows designers to minimize errors while
maximizing speed and bandwidth.
This device is ideally suited for low level transducer signal
amplifier circuits. Other applications which can utilize the
HA-5127’s qualities include instrumentation amplifiers, pulse
amplifiers, audio preamplifiers, and signal conditioning
circuits. This device can easily be used as a design
enhancement by directly replacing the 725, OP25, OP06,
OP07, OP27 and OP37. For the military grade product, refer
to the HA-5127/883 data sheet.
Pinout
HA-5127
(CERDIP, SOIC)
TOP VIEW
Features
Slew Rate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10V/
μ
s
Unity Gain Bandwidth. . . . . . . . . . . . . . . . . . . . . . 8.5MHz
Low Noise . . . . . . . . . . . . . . . . . . . . . . . 3nV/
√
Hz at 1kHz
Low V
OS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
μ
V
High CMRR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126dB
High Gain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1800V/mV
Pb-Free Plus Anneal Available (RoHS Compliant)
Applications
High Speed Signal Conditioners
Wide Bandwidth Instrumentation Amplifiers
Low Level Transducer Amplifiers
Fast, Low Level Voltage Comparators
Highest Quality Audio Preamplifiers
Pulse/RF Amplifiers
1
2
3
4
8
7
6
5
V+
OUT
BAL
V-
+
BAL
NC
-IN
+IN
-
Ordering Information
PART NUMBER
(BRAND)
TEMP.
RANGE (
o
C)
PACKAGE
PKG.
DWG. #
HA7-5127A-5
0 to 75
8 Ld CERDIP
F8.3A
HA9P5127-5
(H51275)
0 to 75
8 Ld SOIC
M8.15
HA9P5127-5Z
(H51275Z) (Note)
0 to 75
8 Ld SOIC
(Pb-free)
M8.15
HA9P5127-5ZX96
(H51275Z) (Note)
8 Ld SOIC Tape and Reel
(Pb-free)
M8.15
NOTE: Intersil Pb-free plus anneal products employ special Pb-free
material sets; molding compounds/die attach materials and 100%
matte tin plate termination finish, which are RoHS compliant and
compatible with both SnPb and Pb-free soldering operations. Intersil
Pb-free products are MSL classified at Pb-free peak reflow
temperatures that meet or exceed the Pb-free requirements of
IPC/JEDEC J STD-020.
Data Sheet
July 27, 2005
FN2906.6
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright Intersil Americas Inc. 2002, 2005. All Rights Reserved
All other trademarks mentioned are the property of their respective owners.
