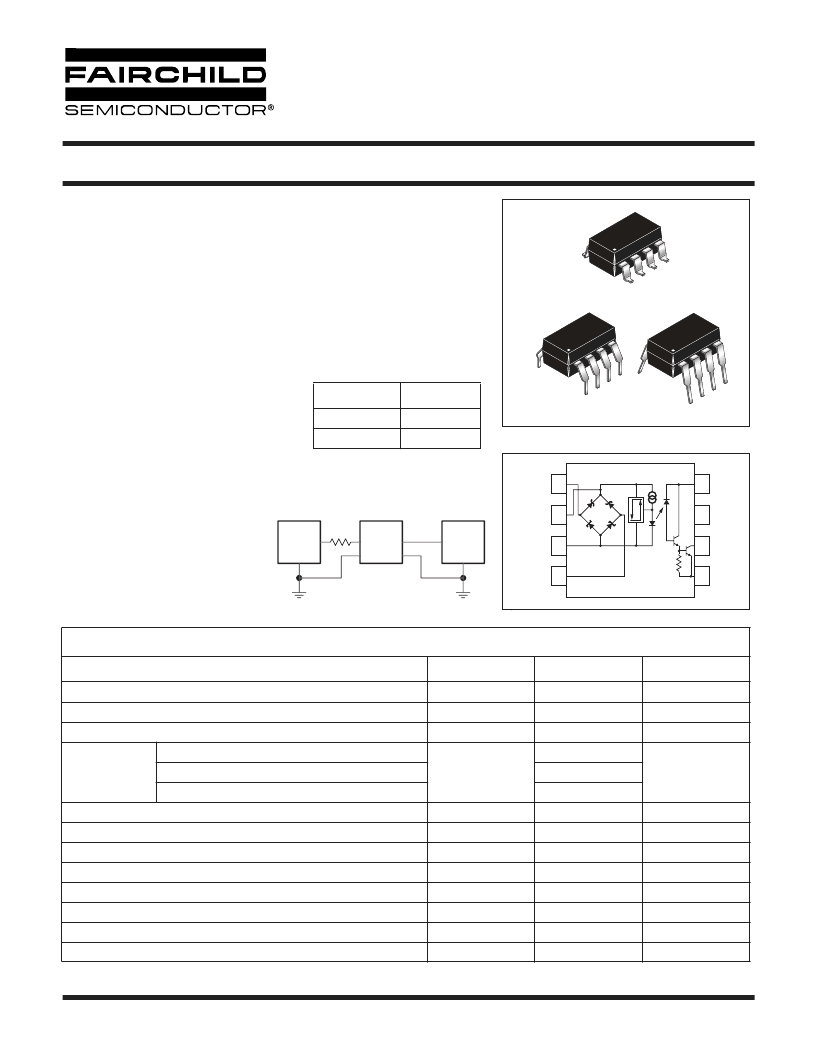

4/9/03
Page 1 of 10
2003 Fairchild Semiconductor Corporation
AC/DC TO LOGIC INTERFACE
OPTOCOUPLER
HCPL-3700
DESCRIPTION
The HCPL-3700 voltage/current threshold detection optocoupler consists of an
AlGaAs LED connected to a threshold sensing input buffer IC which are optically
coupled to a high gain darlington output. The input buffer chip is capable of con-
trolling threshold levels over a wide range of input voltages with a single resistor.
The output is TTL and CMOS compatible.
FEATURES
AC or DC input
Programmable sense voltage
Logic level compatibility
Threshold guaranteed over temperature
(0°C to 70°C)
Optoplanar construction for high
common mode immunity
UL recognized (file # E90700)
APPLICATIONS
Low voltage detection
5 V to 240 V AC/DC voltage sensing
Relay contact monitor
Current sensing
Microprocessor Interface
Industrial controls
ABSOLUTE MAXIMUM RATINGS
(No derating required up to 70°C)
Parameter
Symbol
Value
Units
Storage Temperature
T
STG
-55 to +125
°C
Operating Temperature
T
OPR
T
SOL
-40 to +85
°C
Lead Solder Temperature
EMITTER
260 for 10 sec
°C
Average
I
IN
50 (MAX)
mA
Input Current
Surge
3 ms, 120 Hz Pulse Rate
140 (MAX)
Transient
10 μs, 120 Hz Pulse Rate
500 (MAX)
Input Voltage (Pins 2-3)
V
IN
-0.5 (MIN)
V
Input Power Dissipation
(Note 1)
P
IN
230 (MAX)
mW
Total Package Power Dissipation
DETECTOR
(Note 2)
P
T
305 (MAX)
mW
Output Current
(Average)
(Note 3)
I
O
30 (MAX)
mA
Supply Voltage
(Pins 8-5)
V
CC
V
O
P
O
-0.5 to 20
V
Output Voltage
(Pins 6-5)
-0.5 to 20
V
Output Power Dissipation
(Note 4)
210 (MAX)
mW
8
8
1
8
1
1
TRUTH TABLE
(Positive Logic)
A 0.1 μF bypass capacitor
must be connected between
pins 8 and 5.
Input
Output
H
L
L
H
1
2
3
4
5
8
6
7
AC
DC+
DC-
AC
GND
V
NC
V
O
CC
AC/DC
POWER
LOGIC
R
X
HCPL-3700
GND 1
GND 2
