SL74HCT04
S ystem Logic
Semiconductor
SLS
AC ELECTRICAL CHARACTERISTICS
(V
CC
=5.0 V
±
10%,C
L
=50pF,Input t
r
=t
f
=6.0 ns)
Guaranteed Limit
Symbol
Parameter
25
°
C to
-55
°
C
≤
85
°
C
≤
125
°
C
Unit
t
PLH
Maximum Propagation Delay, Input A
15
19
22
ns
t
PHL
to Output Y (Figures 1 and 2)
17
21
26
t
TLH
, t
THL
Maximum Output Transition Time, Any Output
(Figures 1 and 2)
15
19
22
ns
C
IN
Maximum Input Capacitance
10
10
10
pF
Power Dissipation Capacitance (Per Inverter)
Typical @25
°
C,V
CC
=5.0 V
C
PD
Used to determine the no-load dynamic power
consumption:
P
D
=C
PD
V
CC
2
f+I
CC
V
CC
22
pF

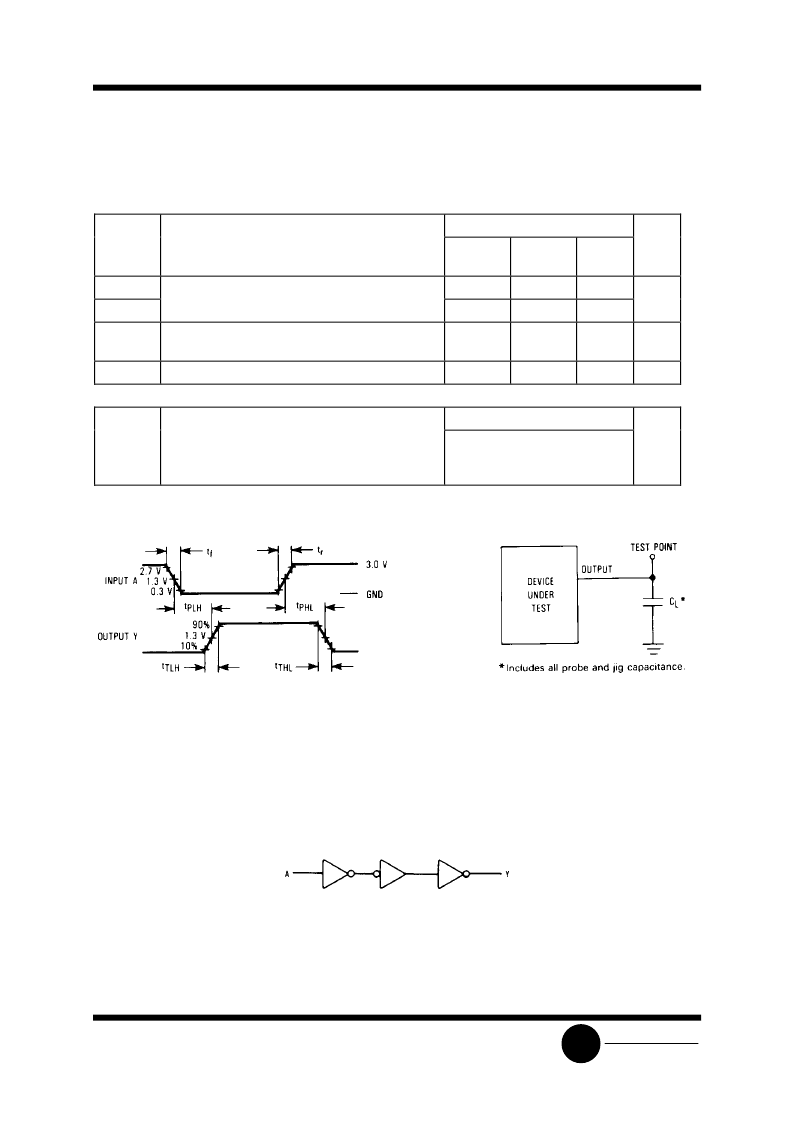

Figure 1. Switching Waveforms. Figure 2. Test Circuit
EXPANDED LOGIC DIAGRAM
(1/6 of the Device)
