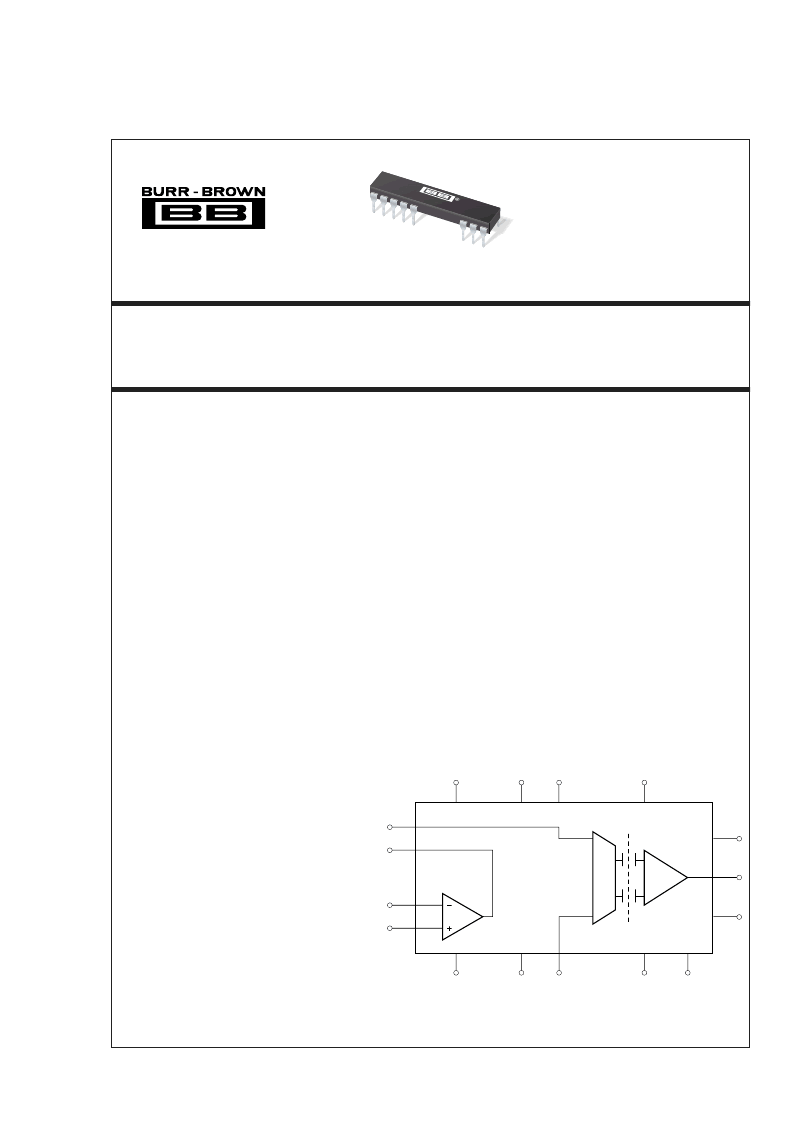

1996 Burr-Brown Corporation
PDS-1294A
Printed in U.S.A. May, 1996
MOD
Shield 1
Ext Osc
+V
S1
+V
S2
–V
S1
3
Com1
–V
S2
13
GND2
20
23
12
5
22
4
15
Shield 2
OUT
Com2
14
11
10
V
OUT
V
IN–
V
IN+
21
2
24
1
GND1
Precision, Isolated
OPERATIONAL AMPLIFIER
DESCRIPTION
ISO176 is a precision isolation amplifier incorporating
an uncommitted operational amplifier for input condi-
tioning, a novel duty cycle modulation-demodulation
technique and excellent accuracy. Internal input pro-
tection can withstand up to
±
30V differential without
damage. The signal is transmitted digitally across a
differential capacitive barrier. With digital modulation
the barrier characteristics do not affect signal integrity.
This results in excellent reliability and good high
frequency transient immunity across the barrier. Both
the amplifier and barrier capacitors are housed in a
plastic DIP.
ISO176 is easy to use. No external components are
required. A power supply range of
±
4.5V to
±
18V
makes this amplifier ideal for a wide range of applica-
tions.
FEATURES
G
RATED
1500Vrms Continuous
2500Vrms for One Minute
100% TESTED FOR PARTIAL DISCHARGE
G
HIGH IMR: 115dB at 50Hz
G
LOW NONLINEARITY:
±
0.05%
G
LOW INPUT BIAS CURRENT:
±
5nA max
G
LOW INPUT OFFSET VOLTAGE:
±
20
μ
V
G
OP AMP INPUTS PROTECTED TO
±
30V
G
MOD INPUT PROTECTED TO
±
100V
G
BIPOLAR OPERATION: V
O
=
±
10V
G
SYNCHRONIZATION CAPABILITY
G
24-PIN PLASTIC DIP: 0.3" Wide
APPLICATIONS
G
INDUSTRIAL PROCESS CONTROL
Transducer Isolator, Thermocouple
Isolator, RTD Isolator, Pressure Bridge
Isolator, Flow Meter Isolator
G
POWER MONITORING
G
MEDICAL INSTRUMENTATION
G
ANALYTICAL MEASUREMENTS
G
BIOMEDICAL MEASUREMENTS
G
DATA ACQUISITION
G
TEST EQUIPMENT
G
POWER MONITORING
G
GROUND LOOP ELIMINATION
International Airport Industrial Park Mailing Address: PO Box 11400, Tucson, AZ 85734 Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 Tel: (520) 746-1111 Twx: 910-952-1111
Internet: http://www.burr-brown.com/ FAXLine: (800) 548-6133 (US/Canada Only) Cable: BBRCORP Telex: 066-6491 FAX: (520) 889-1510 Immediate Product Info: (800) 548-6132
ISO176
A
ISO176
