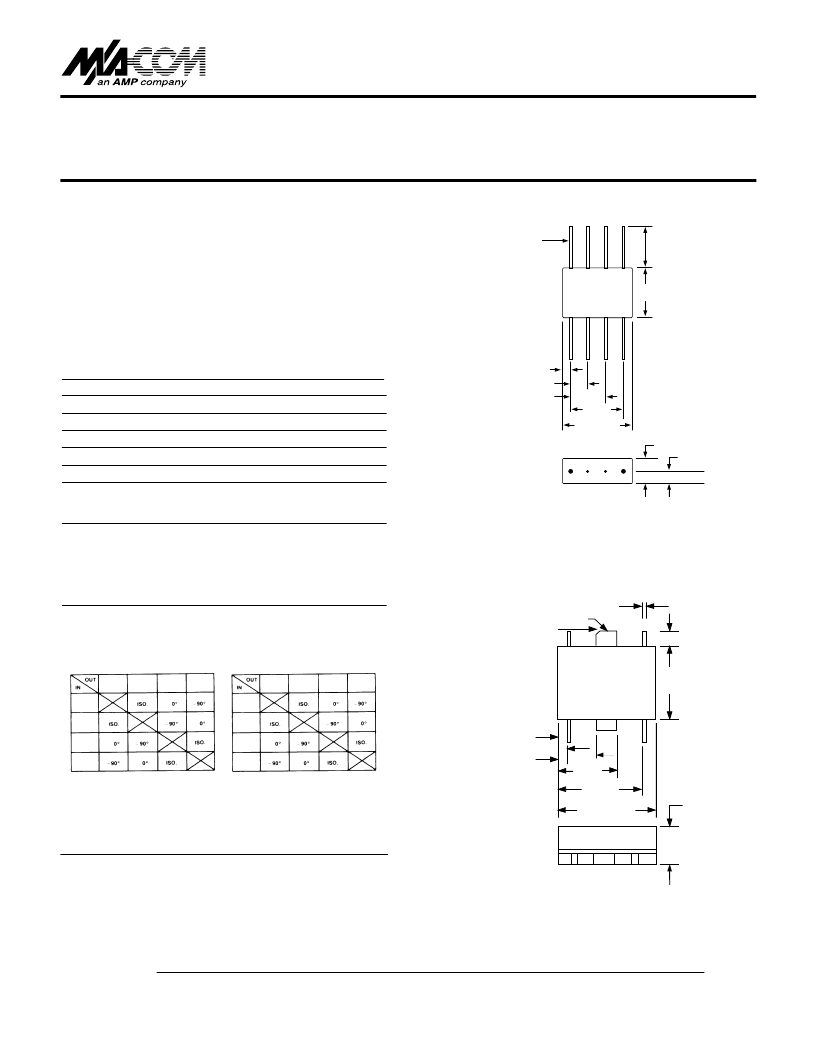

Quadrature Hybrid
7 - 14 MHz
JH-/JHS-113
M/A-COM, Inc.
North America:
Tel. (800) 366-2266
Fax (800) 618-8883
I
Asia/Pacific: Tel. +81 (03) 3226-1671
Fax +81 (03) 3226-1451
I
Europe: Tel. +44 (1344) 869 595
Fax +44 (1344) 300 020
1
Specifications Subject to Change Without Notice.
V2.00
Features
Octave Bandwidth
Low VSWR: 1.2:1
Low Loss: 0.5 dB Max.
Impedance: 50 Ohms Nom.
Input power: 4 W. Max. @ 25°C
MIL-STD-202 Screening Available
G
Guaranteed Specifications*
Frequency Range
Insertion Loss (less Coupling)
Isolation
Amplitude Balance
VSWR
Deviation from Quadrature
*All specifications apply with 50 ohm source and load impedance.
**Average of coupled outputs less 3 dB.
(From -55°C to +85°C)
7 - 14 MHz
0.5 dB Max.**
20 dB Min.
0.75 dB Max.
1.2:1 Max.
3° Max.
Pin Configuration
FP-2
A; P1, B; P4, C; P8, D; P5
Case and all other pins are ground.
A; P1, B; P2, C; P4, D; P3
Case and all other pins are ground.
SF-1
1
2
3
4
5
6
7
8
PIN 0.015 DIA
±
0.005
(0.038
±
0.13)
8 PLACES
0.312 MIN TYP
(7.9 MIN)
0.385
±
0.020
(9.8
±
0.5)
0.080 (2.0)
0.100 (2.5)
0.250 (6.3)
0.350 (8.9)
0.51
(12.9
±
0.5)
0.150 MAX
(3.8 MAX)
0.060 (1.5)
G
G
G
G
G
FP-2
SF-1
1
2
3
4
0.016 W
±
0.002 (0.41
±
0.5) X
0.010 T
±
0.001 (0.25
±
0.03)
GROUND TAB
ORIENTATION
MARK
0.060
(1.52)
0.510
±
0.20
(12.9
±
0.5)
0.385
±
0.020
(0.8
±
0.5)
0.205
(5.21)
(10.72)
0.072
(1.83)
0.170
(4.31)
MAX
0.305
(7.75)
Ordering Information
Part Number
JH-113 PIN
JHS-113 PIN
Package
Flatpack
Surface Mount
FP-2
SF-1
Phasing Diagram
1
4
8
5
1
4
8
5
1
2
4
3
1
2
4
3
All other pins and case
are ground
All other pins and case
are ground
FP-2
SF-1
Dimensions in ( ) are in mm.
Unless Otherwise Noted: .xxx = ±0.010 (.xx = ±0.25)
.xx = ±0.02 (.x = ±0.5)
WEIGHT (APPROX.): 0.09 OUNCES 2.5 GRAMS
Dimensions in ( ) are in mm.
Unless Otherwise Noted: .xxx = ±0.010 (.xx = ±0.25)
.xx = ±0.02 (.x = ±0.5)
WEIGHT (APPROX.): 0.07 OUNCES 2 GRAMS
