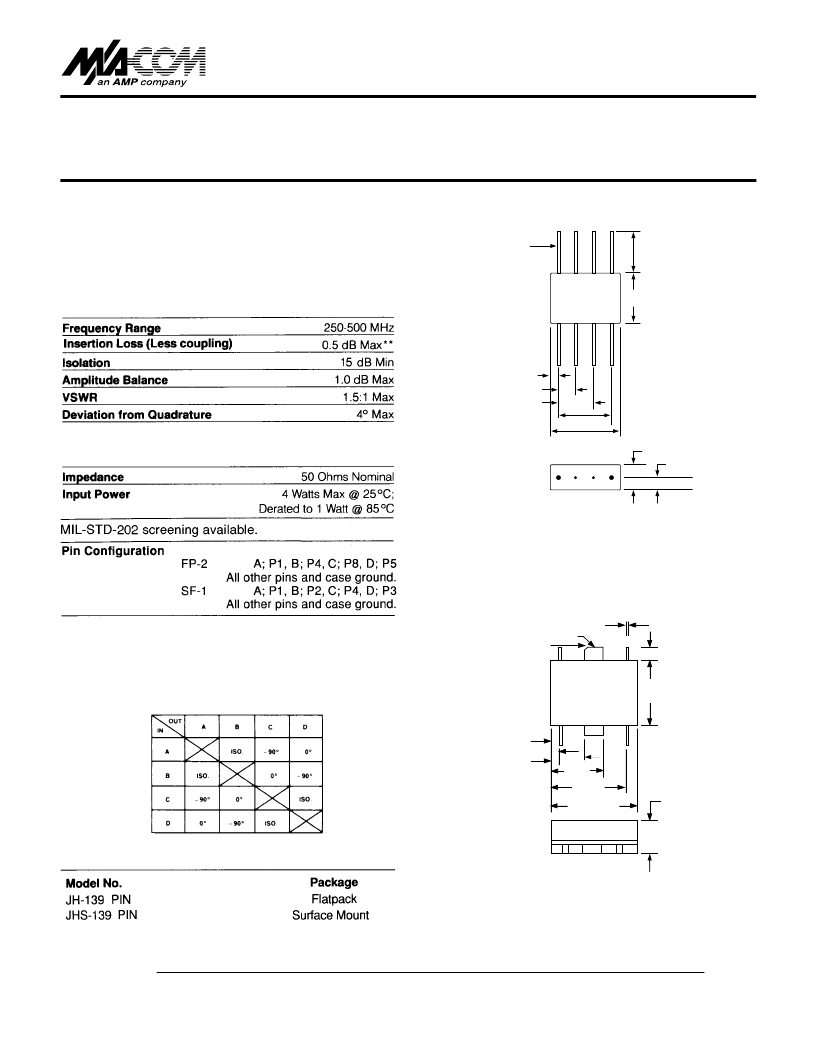

Quadrature Hybrid
250 - 500 MHz
JH-/JHS-139
M/A-COM, Inc.
North America:
Tel. (800) 366-2266
Fax (800) 618-8883
I
Asia/Pacific: Tel. +81 (03) 3226-1671
Fax +81 (03) 3226-1451
I
Europe: Tel. +44 (1344) 869 595
Fax +44 (1344) 300 020
1
Specifications Subject to Change Without Notice.
V2.00
Features
Octave Bandwidth
Low VSWR – 1.1:1 Typical
High Isolation – 30 dB Typical
G
Guaranteed Specifications*
(From -55°C to +85°C)
Ordering Information
Operating Characteristics
Phasing Diagram
1
2
3
4
5
6
7
8
PIN 0.015 DIA
±
0.005
(0.38
±
0.13)
8 PLACES
0.312 MIN TYP
(7.9 MIN)
0.385
±
0.020
(9.8
±
0.5)
0.080 (2.0)
0.100 (2.5)
0.250 (6.3)
0.350 (8.9)
0.51
(12.9
±
0.5)
0.150 MAX
(3.8 MAX)
0.060 (1.5)
G
G
FP-2
1
2
3
4
0.016 W
±
0.002 (0.41
±
0.5) x
0.010 T
±
0.001 (0.25
±
0.03)
GROUND TAB
ORIENTATION
MARK
0.060
(1.52)
0.510
±
0.20
(12.9
±
0.5)
0.385
±
0.020
(0.8
±
0.5)
0.205
(5.21)
(10.72)
0.072
(1.83)
0.170
(4.31)
MAX
WEIGHT (APPROX ) 0 0 OUNCES 2 GRAMS
Unless Otherwise Noted: .xxx = ±0.010 (.xx = ±0.25)
WEIGHT (APPROX.): 0.07 OUNCES 2 GRAMS
0.305
(7.7
SF-1
Dimensions in ( ) are in mm.
Unless Otherwise Noted: .xxx = ±0.010 (.xx = ±0.25)
.xx = ±0.02 (.xx = ±0.5)
WEIGHT (APPROX.): 0.09 OUNCES 2.5 GRAMS
*
* All specifications apply with 50 ohm source and load impedance.
** Average of coupled outputs less 3 dB.
This product contains elements protected by United States Patent
Number 3,484,724.
