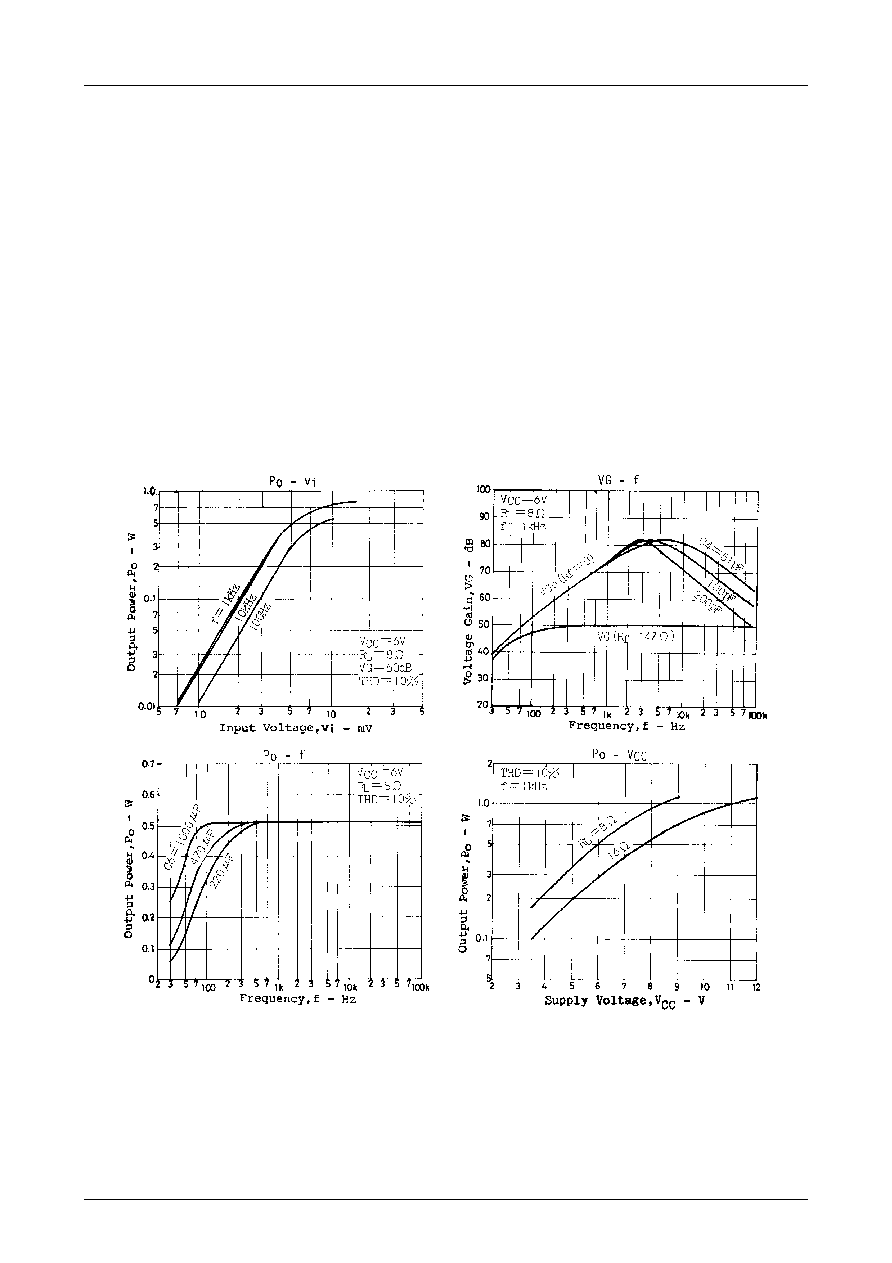

LA4140
No.528–3/5
[Peripheral Parts]
C1, 220pF :
Anti-noise capacitor.
C2, 3.3
F :
Coupling capacitor. Large C2 makes operating noise of variable resistor large. Small one makes fre-
quency response of low frequency range narrow.
C3, 47
F :
Feedback capacitor. Small C3 makes the starting time short, but frequency response of low range
narrow.
C4, 100pF :
For frequency response adjusting of high range, but excessive small one is apt to oscillate.
C5, 0.068
F : For anti-oscillation. Polyester film capacitor is available which has good thermal and high frequency
characteristics.
C6, 470
F : Output capacitor. It deciders power of low frequency.
C7, 47
F :
Bootstrap capacitor. Excssive small C7 causes wave from clipping point to be unbalanced at low
frequency range.
C8, 470
F : Filter capacitor.
C9, 0.01
F : Anti-oscillation. Polyester film capacitor is available.
C10, 100
F : Filter capacitor. Rejects power line hum. Small C10 decreases ripple rejection ratio.
Rf, 47 :
Decides voltage gain. Closed loop voltage gain is nearly calculated as follows. But about
±3dB toler-
ance should be prepared owing to scatter of internal resistance of IC.
VG=20 log (15000/Rf []) [dB]
