LA4270
No.1724-2/10
Electrical Characteristics at Ta = 25
°C, VCC = 25V, RL = 8Ω, f = 1kHz, Rg = 600Ω, See specified test circuit
Ratings
Parameter
Symbol
Conditions
min
typ
max
Unit
Quiescent current
ICCO
25
45
90
mA
Voltage gain
VG
38
40
42
dB
Output power
PO
THD = 1%
5.0
6.0
W
Total harmonic distortion
THD
PO = 2W
0.1
0.8
%
Output noise voltage
VNO
Rg = 10k
Ω, BW = 20Hz to 20kHz
0.25
1.0
mV
Ripple rejection
SVRR
Rg = 10k
Ω, fR = 100Hz, VR = 0dBm
45
58
dB
Crosstalk
CT
Rg = 10k
Ω
45
60
dB
Channel balance
ΔVG
1.5
dB

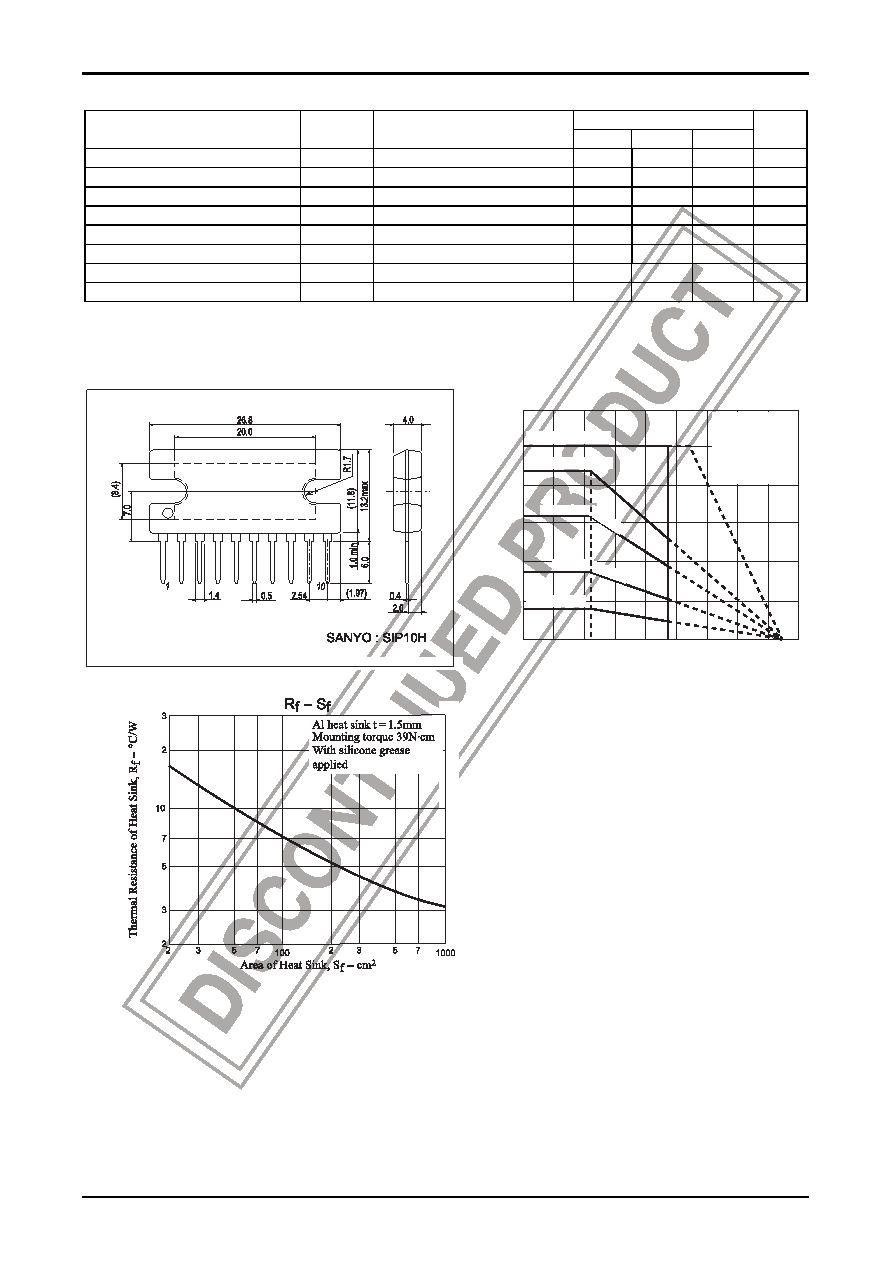

Package Dimensions
unit : mm (typ)
3024B
4
8
12
16
20
24
0
-20
0
20
40
60
100
120
140
160
80
Allowable
Power
Dissipation,
Pd
max
-
W
Pd max -- Ta
Ambient Temperature, Ta --
°C
Al heat sink
Mounting torque
39Ncm
With silicone
grease applied
1.5mm
3
1.5mm
3
Infinite heat sink
No heat sink
200
×200×1.5mm3
100
×100×
50
×50×
