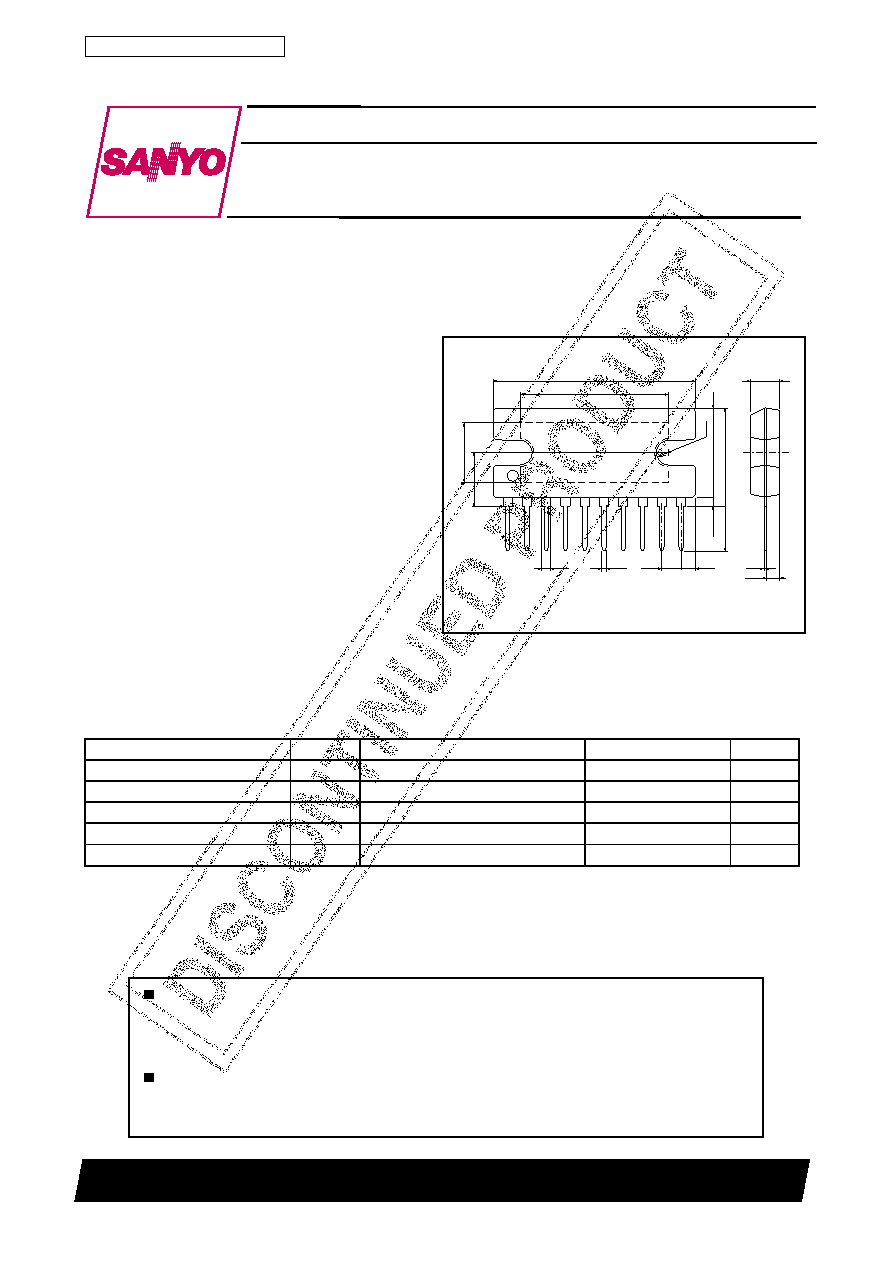

LA4601
No. 6013-1/7
LA4601
This is a different-package version of the power
amplifier LA4600 with ultralow peripheral
component count. Basic power supply spec is Vcc
= 15V, but a 9V spec for operation without
heatsink is also possible. BS capacitor, NF
capacitor, and oscillation-stopping CR components
are incorporated into the IC circuitry.
Functions
Pin compatible with the LA4600
Heatsink not required for 9V version
Output power VCC =15V/3
....7.0W X 2
Built-in stanby switching
Built-in overheat protection (TSD)
Specifications
Overview
[LA4601]
Maximum Ratings at Ta = 25
°C
Ordering number : EN6013
N1298RM(KI)
Monolithic Linear IC
Audio Power Amplifier for
Radio Cassette Recorders
Package Dimensions
unit: mm
3024-SIP10H
SANYO : SIP10H
Parameter
Symbol
Conditions
Ratings
Unit
Maximum supply voltage
Vcc max
Rg=0 (No signal)
24
V
Allowable power dissipation
Pd max
With an arbitrary large heatsink
25.0
W
Thermal resistance
θ j-c
3.0
°C/W
Operating temperature
Topr
°C
Storage temperature
Tstg
°C
– 20 to +75
– 40 to +150
27.0
20.0
R1.7
8.4
10
1
11.8
4.0
0.4
2.0
7.0
0.5
2.54
2.07
1.4
6.0
1.0
m
in
13.2max
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft's
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co., Ltd. Semiconductor Business Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
