Overview
The LA7775M is an FM receiver for CATV or FM
communications equipment. In addition to functions for
FM demodulation (oscillator, mixer, limiting IF amplifier,
and quadrature detection circuits) it also includes on chip
an FSK data shaper circuit, an RF amplifier, and a local
oscillator frequency switching circuit.
Functions
RF amplifier
Mixer
Oscillator
Oscillator switching
Limiting IF amplifier
Quadrature detection
Data shaper
Features
Wideband RF input
On-chip RF amplifier
On-chip oscillator frequency switching circuit

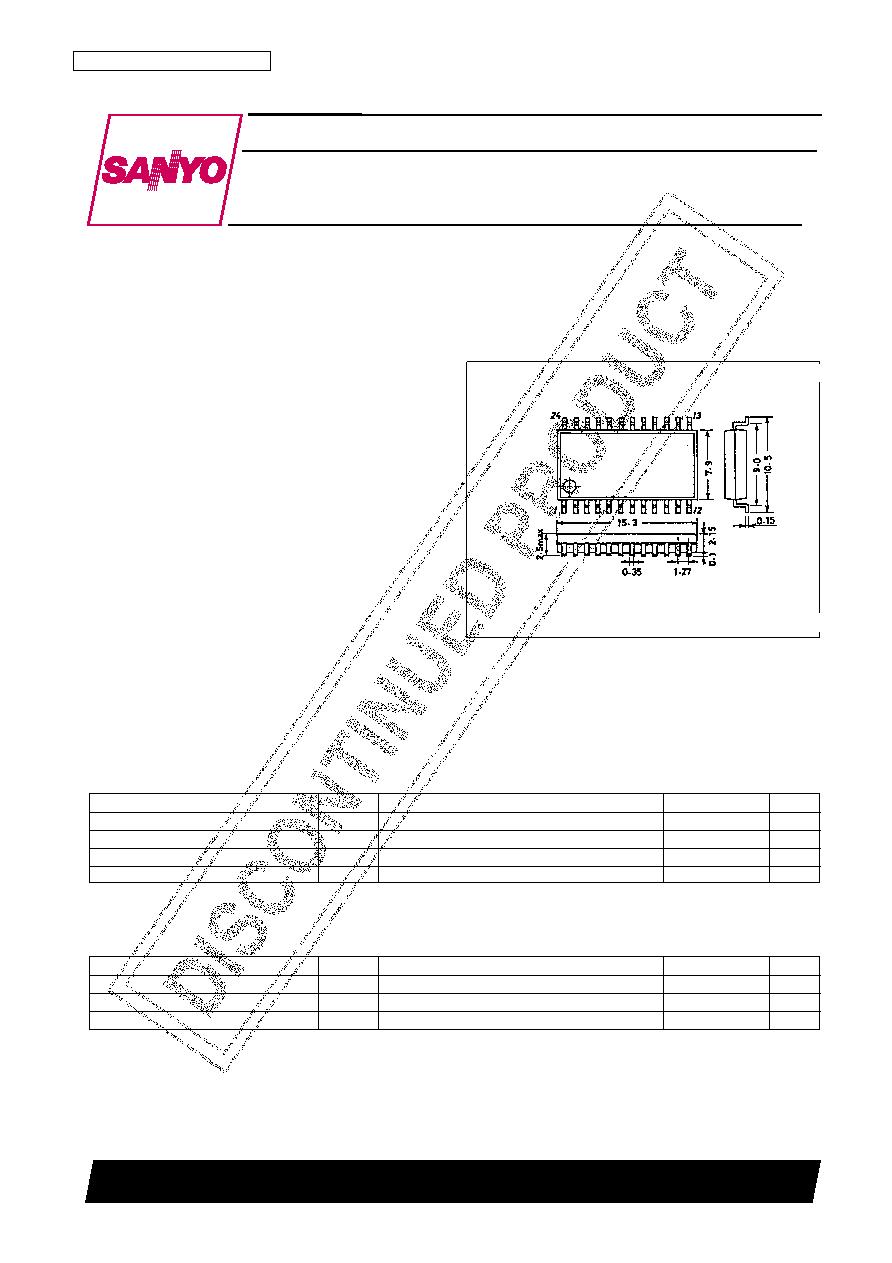

Package Dimensions
unit: mm
3045B-MFP24
Monolithic Linear Integrated Circuit
Ordering number : EN5736
63097HA(OT) No. 5736-1/5
SANYO: MFP24
[LA7775M]
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
Wideband FSK Receiver
LA7775M
Parameter
Symbol
Conditions
Ratings
Unit
Maximum supply voltage
VCC max
7V
Allowable power dissipation
Pd max
350
mW
Operating temperature
Topr
–20 to +75
°C
Storage temperature
Tstg
–55 to +125
°C
Specifications
Maximum Ratings at Ta = 25°C
Parameter
Symbol
Conditions
Ratings
Unit
Recommended supply voltage
VCC
5V
Operating supply voltage range
VCCop
4.5 to 5.5
V
Input frequency
fin21, fin24
40 to 350
MHz
Operating Conditions at Ta = 25°C
相關PDF資料 |
