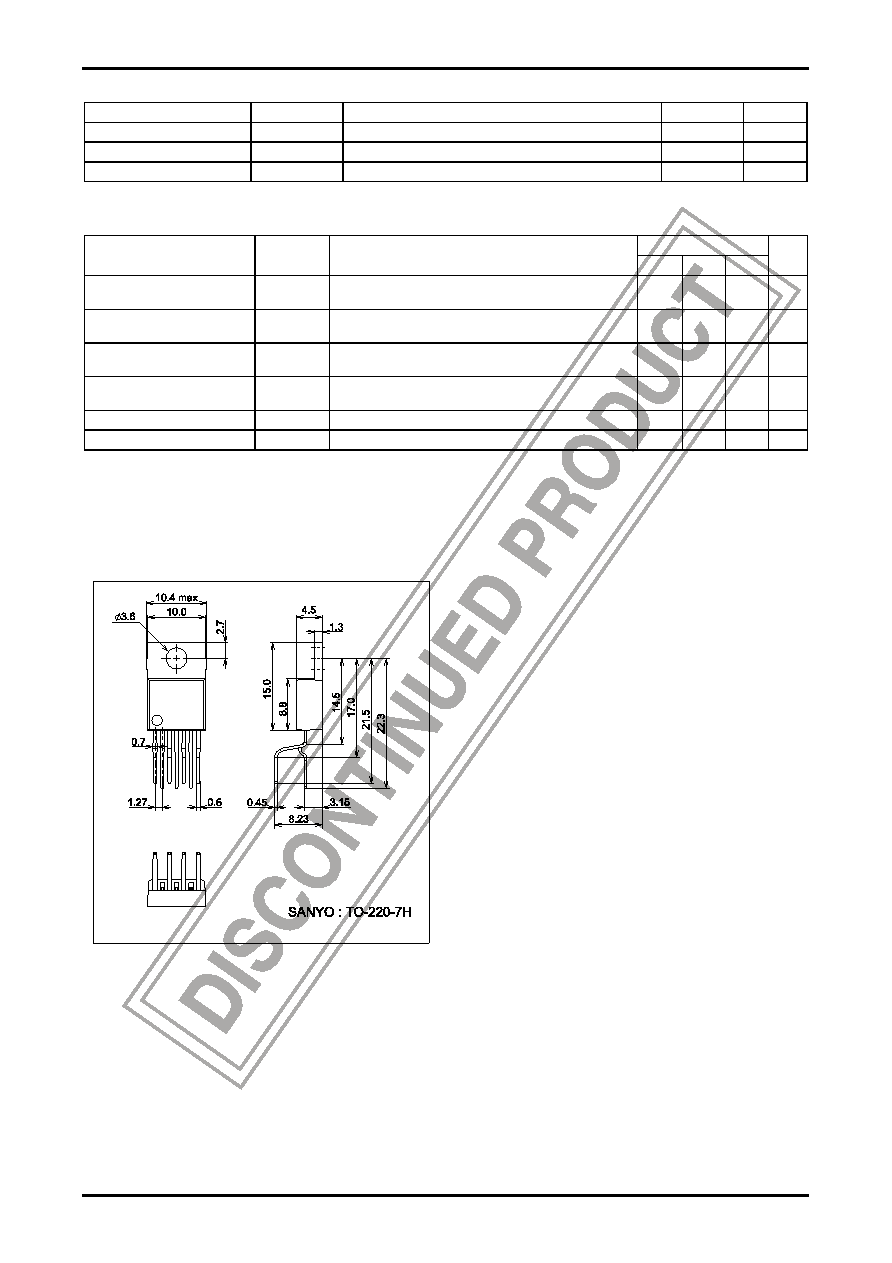

LA78040N
No.7880-2/4
Operating Conditions at Ta = 25
°C
Parameter
Symbol
Conditions
Ratings
Unit
Recommended supply voltage
+B2
24
V
Operating supply voltage range
+B2op
16 to 33
V
Deflection output current
I5p-p
To 1.8
Ap-p
Operating Characteristics at Ta = 25
°C, +B2 = 24V
Ratings
Parameter
Symbol
Conditions
min
typ
max
Unit
Deflection output saturation
voltage (lower)
Vsat5-4
I5 = 0.9A
1.3
V
Deflection output saturation
voltage (upper)
Vsat6-5
I5 = -0.9A
3.2
V
Pump-up charge saturation
voltage
Vsat3-4
I3 = 20mA
1.8
V
Pump-up discharge saturation
voltage
Vsat2-3
I3 = 0.9A
3.0
V
Idling current
Idl
20
50
mA
Midpoint voltage
Vmid
11.0
12.0
13.0
V
Note: Current flowing into the IC is positive (+) and current flowing out is negative (-).
Package Dimensions
unit : mm
3286
