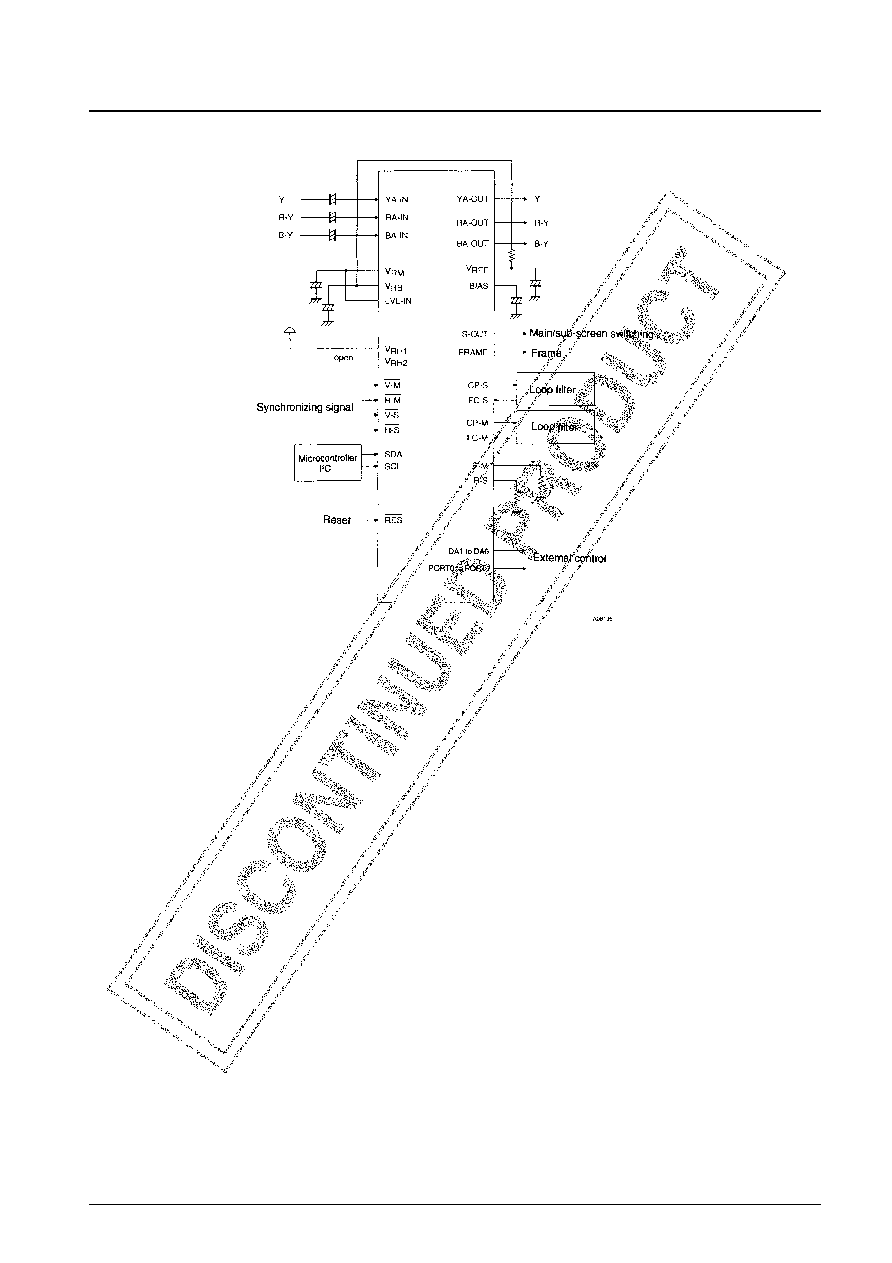

LC74411N and LC74411NE Based PIP System
Function Overview
Reduction sizes
– Vertical
: 1/3, 1/4; The vertical filter coefficient can be selected.
– Horizontal : 1/3, 1/4; Variable at the PLL.
Still image
– Field still image
Display position
– Eight bits in each of the vertical and horizontal directions
Frame
– Frame or no frame can be selected.
– Frame types differ according to the insertion method
Pin frame : A pin output that goes high at the frame position (for frame insertion by the application)
DAC frame : Frame overlapped onto the image signal. Four bits for each of the Y, R-Y, and B-Y signals.
Wipe
– Supports eleven different types of wipe.
Blanking size
– The vertical and horizontal directions can be specified independently (6 bits each)
– Eleven form specification types
Memory clear
– The image data written to memory can be set to a fixed value.
– Either 25% white or blue can be selected.
Wide-aspect-ratio TV support
– Aspect compensation function
Support for NTSC, PAL, and multi-format systems
External control function using the I2C bus
– Incorporates six on-chip 8-bit D/A converter circuits
– Provides eight general-purpose port pins.
Wide range of settings and adjustments
– Sub-screen displacement, color shifting, and other settings can be adjusted using the I2C bus.
No. 5519-4/14
LC74411N, LC74411NE
