Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft’s
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges,or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.

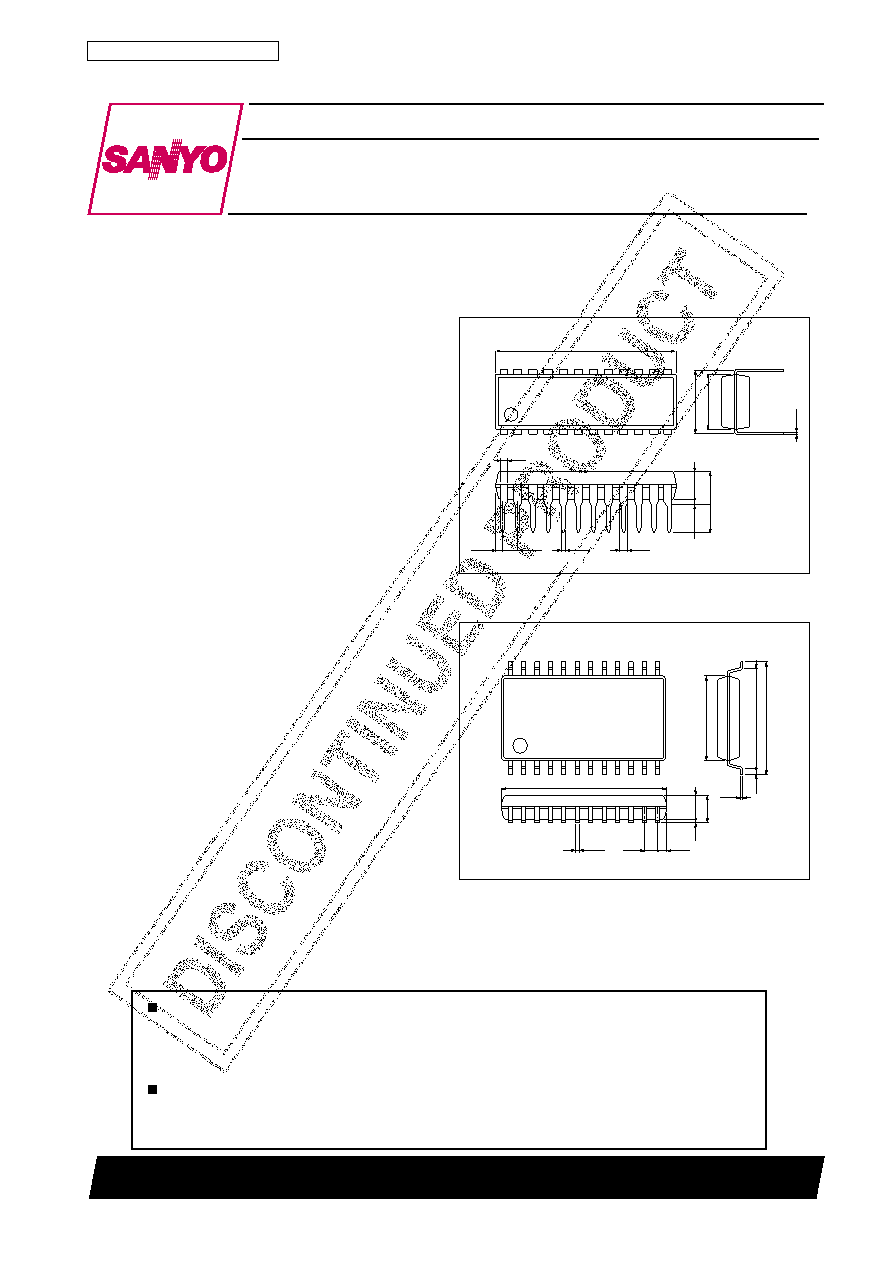

CMOS IC
On-screen Video Display Controllers
for NTSC or PAL-M
Ordering number:ENN4359A
LC74721, LC74721M
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
80101TN (KT)/D2293 JN B8-0377, A8-9893 No.4359–1/12
Overview
The LC74721 and LC74721M are CMOS, video display
controllers for superimposing text and low-level graphics
onto an NTSC or PAL-M compatible television receiver.
Up to 240, 8
× 8-pixel characters can be displayed under
microprocessor control on a 24-character by 10-line dis-
play.
The LC74721 and LC74721M feature selectable pixel width
and height, and 64 vertical and 64 horizontal display start
positions. It also features a flashing enable bit for each char-
acter position.
The LC74721 and LC74721M operate from a 5V supply.
The LC74721 is available in 24-pin DIPs, and the
LC74721M, in 24-pin MFPs.
Features
Complete text and graphics vide overlay circuitry.
64-character internal character generator ROM.
8
× 8-pixel characters.
Three pixel widths and three pixel heights.
Selectable background color.
Built-in synchronization check and separation circuitry.
Approximately 0.5 or 1 s period character flashing op-
tion.
NTSC or PAL-M format compatibility.
8-bit serial input format.
5V supply.
24-pin plastic DIP (300mil) and 24-pin plastic MFP
(375mil).
0.48
(3.25)
3.3
3.9max
0.51min
21.0
(0.71)
1.78
0.25
7.62
6.4
1
12
24
13
0.95
0.9
Package Dimensions
unit:mm
3067A-DIP24S
[LC74721]
SANYO : DIP24S
0.15
15.3
1
12
24
13
0.67
0.35
1.27
7.9
0.75
9.0
10.5
2.5max
2.15
0.1
unit:mm
3045B-MFP24
[LC74721M]
SANYO : MFP24
