LM2476
Monolithic Triple Channel 6.5 ns High Gain CRT Driver
and Bias Clamp
General Description
The LM2476 is a monolithic triple channel CRT driver and
triple bias clamp for low-cost color monitor applications. The
highly integrated IC contains three wide-band amplifiers for
driving the RGB cathodes of a CRT through external cou-
pling capacitors and three low-band clamp amplifiers for DC
restoration and cutoff adjustment of the video outputs. The
CRT drivers have a high, fixed gain of -27 and can drive CRT
capacitive loads as well as resistive loads present in other
applications, limited only by the package’s power dissipation.
The IC is packaged in a 19-lead TO-247 molded plastic
package and must be operated with a properly chosen heat
sink. See the Package Mounting and Thermal Consider-
ations sections for more information.
Features
n
Well-matched to the LM123X/4X family of preamplifiers
n
Operates with V
CC = 60V to 90V
n
Convenient TO-247 staggered lead package style
CRT Drivers
n
High gain of –27 for up to 60V
P-P output swing
n
Stable with capacitive loads and inductive peaking
networks
Bias Clamps
n
Gain of –17 for up to 60V DC output range
Applications
n
1024 x 768 displays up to 85 Hz refresh rate
n
Pixel clock frequencies up to 95 MHz
n
Monitors using video blanking
Pinout Diagram and Pin Descriptions
Pin Name
Pin Description
IND
Driver Input Pins (1, 3, 4)
INC
Clamp Input Pins (6, 7, 8)
V
BB
Bias Voltage Pin (2)
V
CC
Supply Voltage Pin (14)
GND*
Ground Pins (5, 10, 12, 16, 18)
OUTC
Clamp Output Pins (9, 11, 13)
OUTD
Driver Output Pins (15, 17, 19)
*Note: All GND pins should be connected together via low HF impedance
traces on the PCB.
20121901
Note: Tab is at GND

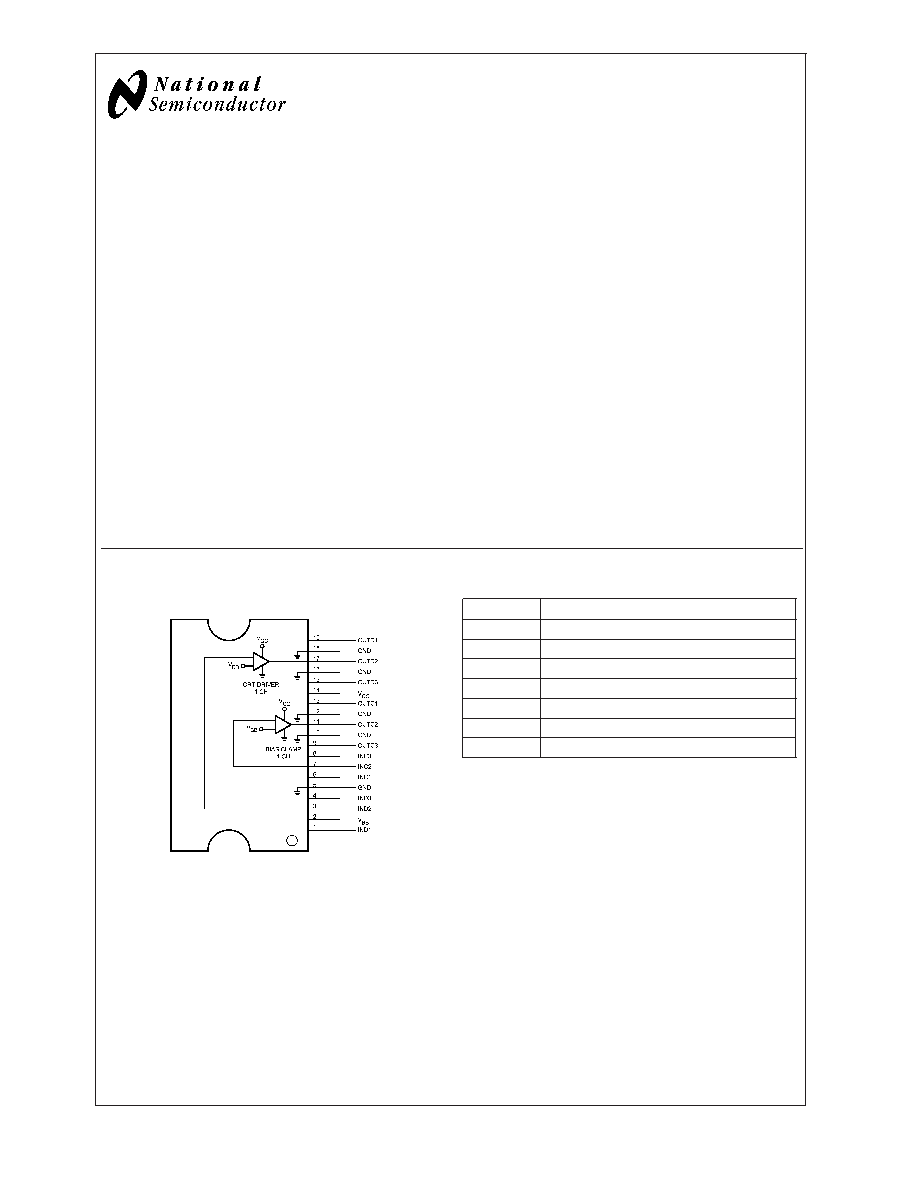

FIGURE 1. Pinout and Connection Diagram
January 2004
LM2476
Monolithic
T
riple
Channel
6.5
ns
High
Gain
CRT
Driver
and
Bias
Clamp
2005 National Semiconductor Corporation
DS201219
www.national.com
