Typical Applications
(Continued)
TL/H/7848–10

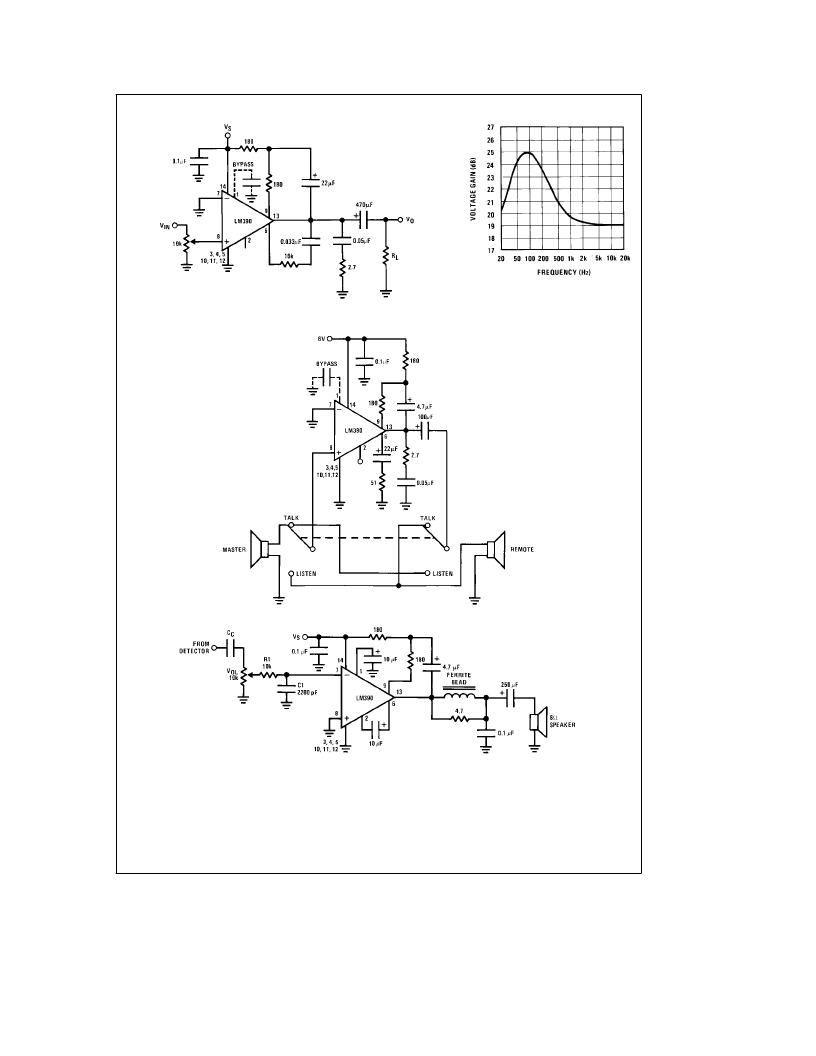

FIGURE 6(a). Amplifier with Bass Boost
TL/H/7848–11
FIGURE 6(b). Frequency Response
with Bass Boost
TL/H/7848–12
FIGURE 7. Intercom
TL/H/7848–13
FIGURE 8. AM Radio Power Amplifier
Note 1:
Twist supply lead and supply ground very tightly.
Note 2:
Twist speaker lead and ground very tightly.
Note 3:
Ferrite bead is Ferroxcube K5-001-001/3B with 3 turns of wire.
Note 4:
R1C1 band limits input signals.
Note 5:
All components must be spaced very close to IC.
5
