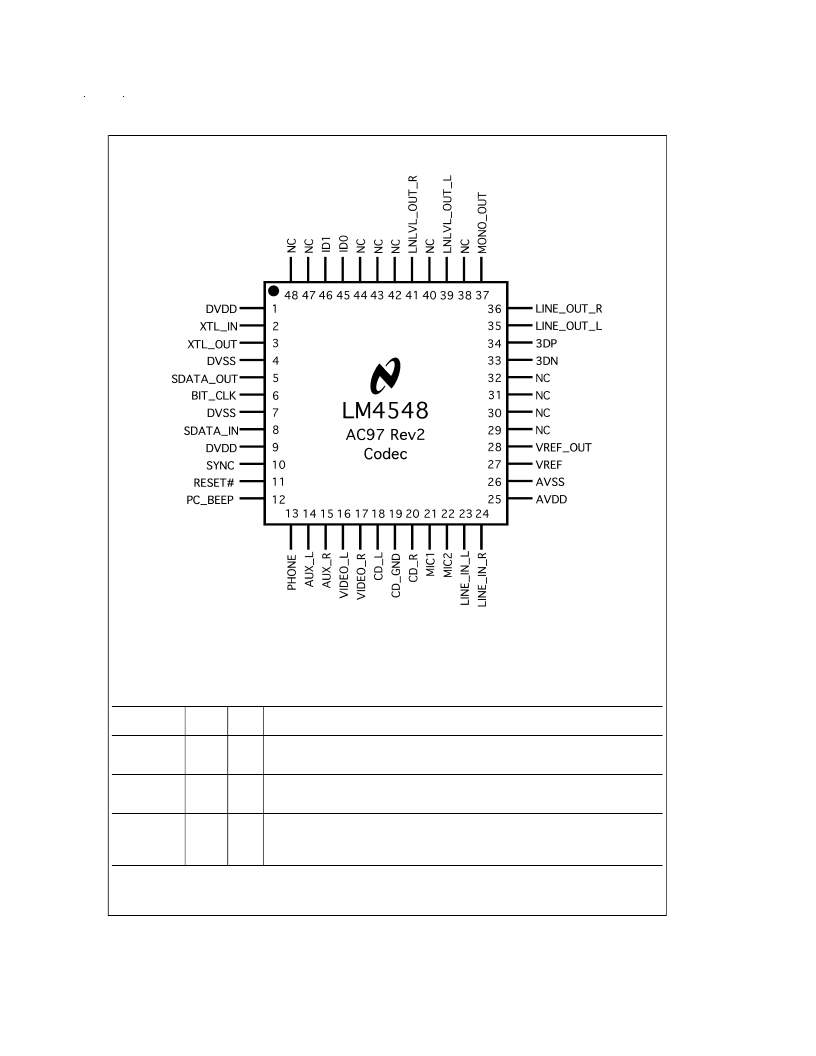

Connection Diagram
Pin Description
Analog I/O
Name
Pin
I / O
Functional Description
This is a mono input which gets summed into both the stereo line out and the true line level
out after the National 3D Sound block. The PC_BEEP level can be adjusted from 0dB to
45dB in 3dB steps, or muted, via register 0Ah.
This is a mono input which gets summed into both the stereo line out and the true line level
out after the National 3D Sound block. The PHONE level can be adjusted from +12dB to
34.5dB in 1.5dB steps as well as muted via register 0Ch.
This line level input can be routed through the Input Mux and recorded by the left ADC. In
addition, this analog input gets summed into the left output stream. The amount of AUX_L
signal mixed in the left output stream can be adjusted from +12dB to 34.5dB in 1.5dB steps
as well as muted via register 16h.
PC_BEEP
12
I
PHONE
13
I
AUX_L
14
I
DS100987-2
Top View
Order Number LM4548VH
See NS Package Number VBH48A
www.national.com
7
