Application Information
(Continued)
LATCH-UP
In the past, most CMOS IC’s were susceptible to a damaging
phenomena known as latch-up. This occurred when an ESD
current spike or other large signal was applied to any of the
pins of an IC. The LMC7215 and LMC7225 both are de-
signed to make them highly resistant to this type of damage.
They have passed qualification tests with input currents on
any lead up to 300 mA at temperatures up to 125C.
SPICE MODELS
For a SPICE model of the LMC7215, LMC7225 and many
other op-amps and comparators, contact the NSC Customer
Response Center at 800-272-9959 or on the World Wide
Web at http://www.national.com/models/index.html.

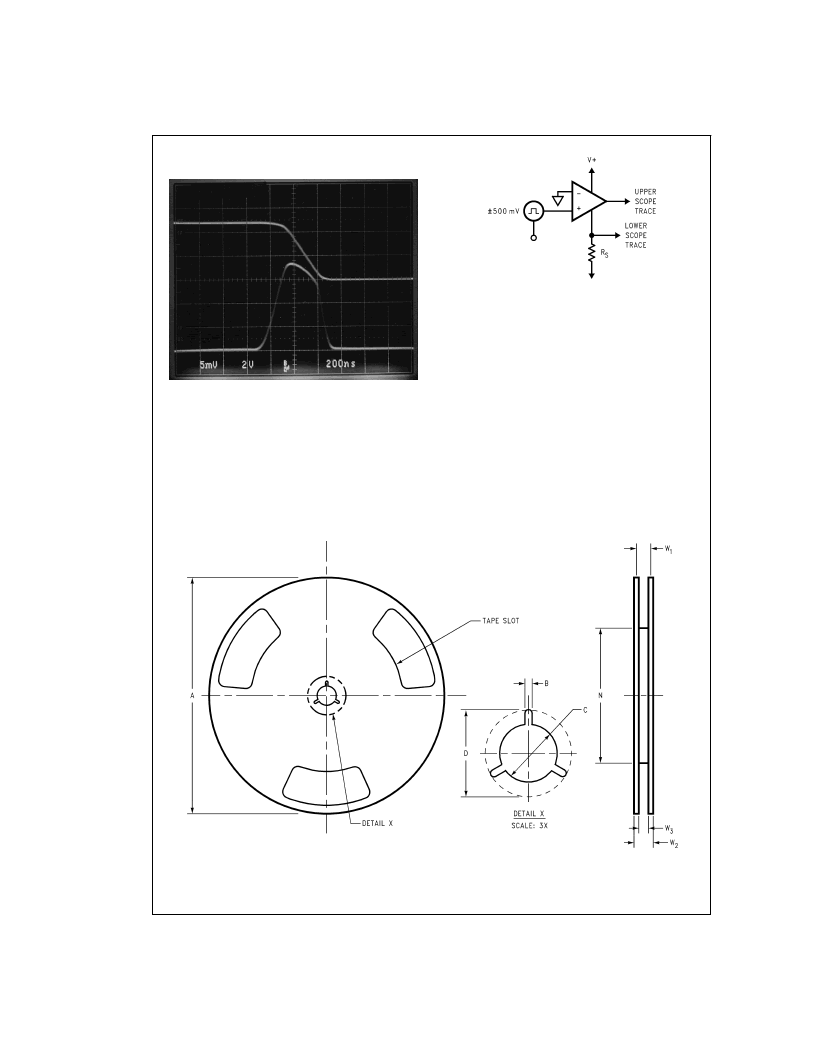

SOT-23-5 Tape and Reel Specification
REEL DIMENSIONS
DS012853-8
FIGURE 5. R
S
= 10
DS012853-9
FIGURE 6.
DS012853-10
www.national.com
8
