參數資料
| 型號： | LOG100JP |
| 廠商： | TEXAS INSTRUMENTS INC |
| 元件分類： | 模擬運算功能 |
| 英文描述： | LOG OR ANTILOG AMPLIFIER, 0.045 MHz BAND WIDTH, CDIP14 |
| 封裝： | HERMETIC SEALED, CERAMIC, DIP-14 |
| 文件頁數： | 1/11頁 |
| 文件大小： | 112K |
| 代理商： | LOG100JP |
optical networking, optical power monitor(ing), laser diode control, optical amplifier control, EDFA control, Erbium Doped Fiber Amplifier control

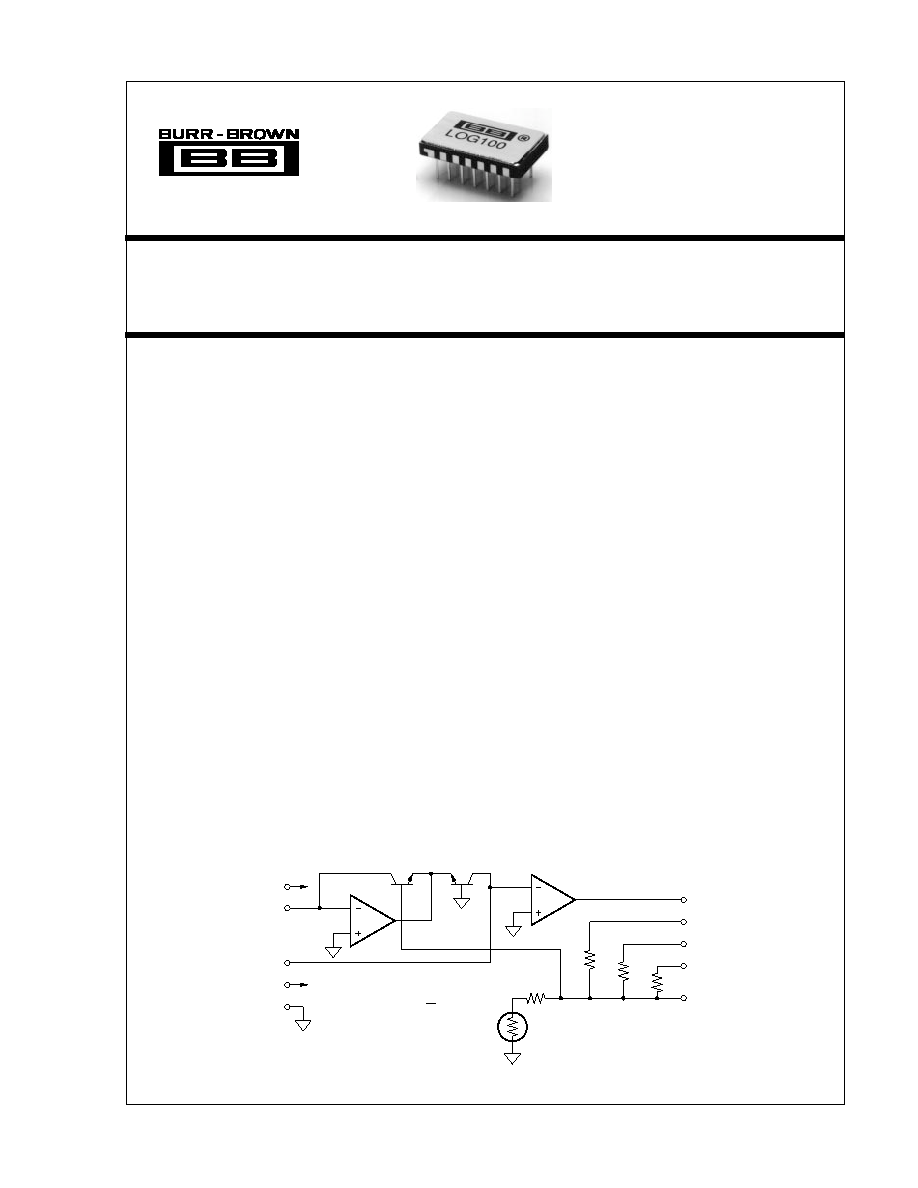

LOG100
Precision
LOGARITHMIC AND LOG RATIO AMPLIFIER
resistors. The resistors are laser-trimmed for maxi-
mum precision. FET input transistors are used for the
amplifiers whose low bias currents (1pA typical) per-
mit signal currents as low as 1nA while maintaining
guaranteed total errors of 0.37% FSO maximum.
Because scaling resistors are self-contained, scale
factors of 1V, 3V or 5V per decade are obtained
simply by pin selections. No other resistors are re-
quired for log ratio applications. The LOG100 will
meet its guaranteed accuracy with no user trimming.
Provisions are made for simple adjustments of scale
factor, offset voltage, and bias current if enhanced
performance is desired.
DESCRIPTION
The LOG100 uses advanced integrated circuit tech-
nologies to achieve high accuracy, ease of use, low
cost, and small size. It is the logical choice for your
logarithmic-type computations. The amplifier has guar-
anteed maximum error specifications over the full six-
decade input range (1nA to 1mA) and for all possible
combinations of I
1 and I2. Total error is guaranteed so
that involved error computations are not necessary.
The circuit uses a specially designed compatible thin-
film monolithic integrated circuit which contains am-
plifiers, logging transistors, and low drift thin-film
PDS-437E
FEATURES
q ACCURACY
0.37% FSO max Total Error
Over 5 Decades
q LINEARITY
0.1% max Log Conformity
Over 5 Decades
q EASY TO USE
Pin-selectable Gains
Internal Laser-trimmed Resistors
q WIDE INPUT DYNAMIC RANGE
6 Decades, 1nA to 1mA
q HERMETIC CERAMIC DIP
APPLICATIONS
q LOG, LOG RATIO AND ANTILOG
COMPUTATIONS
q ABSORBANCE MEASUREMENTS
q DATA COMPRESSION
q OPTICAL DENSITY MEASUREMENTS
q DATA LINEARIZATION
q CURRENT AND VOLTAGE INPUTS
International Airport Industrial Park
Mailing Address: PO Box 11400
Tucson, AZ 85734
Street Address: 6730 S. Tucson Blvd.
Tucson, AZ 85706
Tel: (520) 746-1111
Twx: 910-952-1111
Cable: BBRCORP
Telex: 066-6491
FAX: (520) 889-1510
Immediate Product Info: (800) 548-6132
7
A
2
A
1
1
14
I
1
9
–V
CC
6
+V
CC
10
Com
I
2
Q
1
Q
2
V
OUT
3
K = 1
4
K = 3
5
K = 5
2
Scale
Factor
Trim
39k
24k
7.5k
270
220
Resistor values nominal only;
laser-trimmed for precision gain.
V
OUT = K LOG
I
1
I
2
1981 Burr-Brown Corporation
PDS-437E
Printed in U.S.A. January, 1995
SBFS014
