MAX9613/MAX9615
Low-Power, High-Efficiency,
Single/Dual, Rail-to-Rail I/O Op Amps
19-5338; Rev 0; 8/10

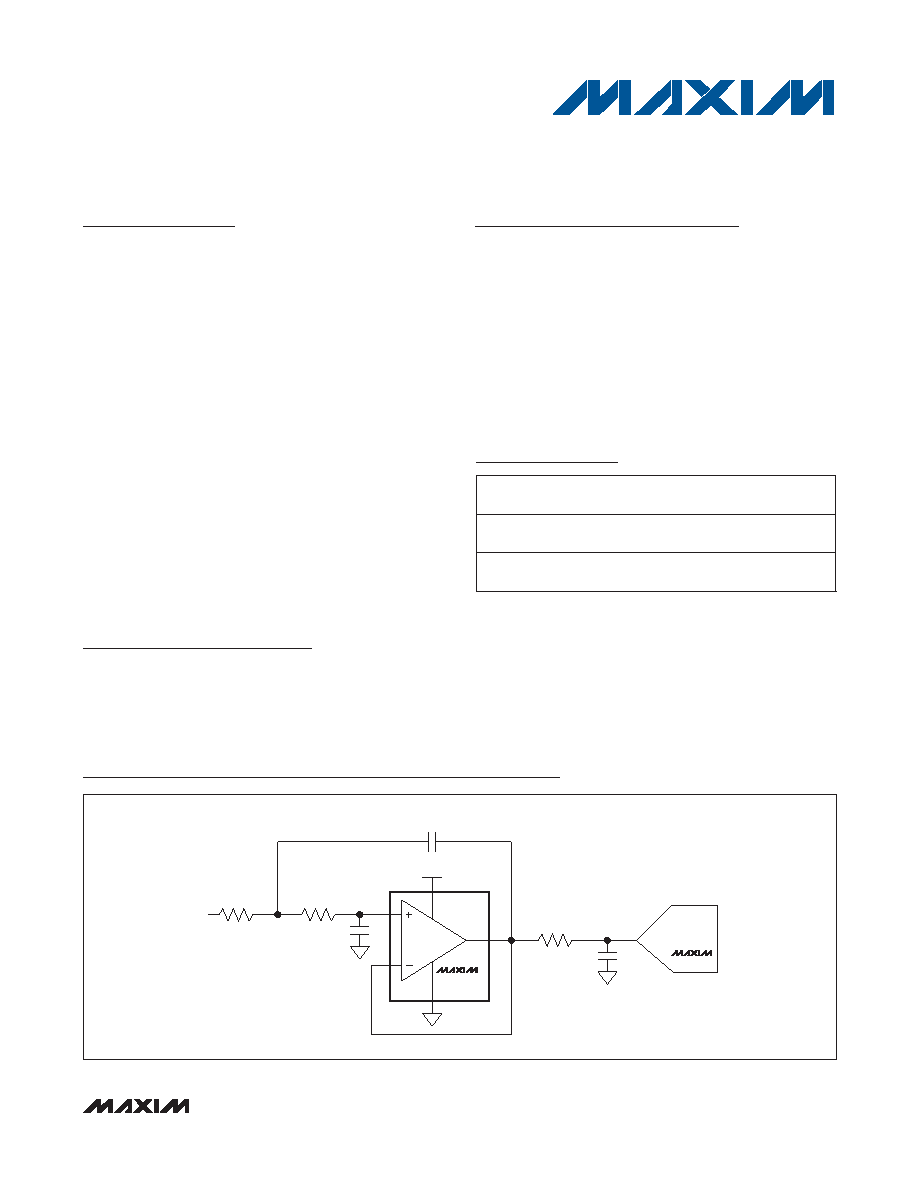

Typical Application Circuit
General Description
The MAX9613/MAX9615 are low-power precision op amps
with rail-to-rail inputs and rail-to-rail outputs. They feature
precision MOS inputs powered from an internal charge
pump to eliminate crossover distortion that is common
to complementary input-pair type amplifier architectures.
These devices are ideal for a large number of signal pro-
cessing applications such as photodiode transimped-
ance amplifiers and filtering/amplification of a wide
variety of signals in industrial equipment. The devices
also feature excellent RF immunity, making them ideal for
portable applications.
The MAX9613/MAX9615 feature a self-calibration system
(on power-up), eliminating the effects of temperature and
power-supply variations.
The MAX9613/MAX9615 are capable of operating from a
1.7V to 5.5V supply voltage over the 0NC to +70NC tem-
perature range, and from 1.8V to 5.5V over the -40NC to
+125NC automotive temperature range.
Both singles and duals are available in tiny SC70 pack-
ages. The MAX9613 features a high-impedance output
while in shutdown.
Applications
Notebooks, Portable Media Players
Industrial and Medical Sensors
General Purpose Signal Processing
Features
S
VCC = 1.7V to 5.5V (0°C to +70°C)
S
VCC = 1.8V to 5.5V (-40°C to +125°C)
S
Low 100V (max) VOS
S
Rail-to-Rail Inputs and Outputs
S
Low 220A Supply Current, 1A in Shutdown
S
Autotrim Offset Calibration
S
2.8MHz Bandwidth
S
Excellent RF Immunity
+Denotes lead(Pb)-free/RoHS-compliant package.
T = Tape and reel.
Ordering Information
2.4kI
22kI
10kI
+3.3V
15nF
330pF
3.3nF
SALLEN-KEY FILTER
CORNER FREQUENCY = 10kHz
ADC
MAX9613
MAX11613
PART
TEMP
RANGE
PIN-
PACKAGE
TOP
MARK
MAX9613AXT+T
-40NC to
+125NC
6 SC70
+ADK
MAX9615AXA+T
-40NC to
+125NC
8 SC70
+AAD
