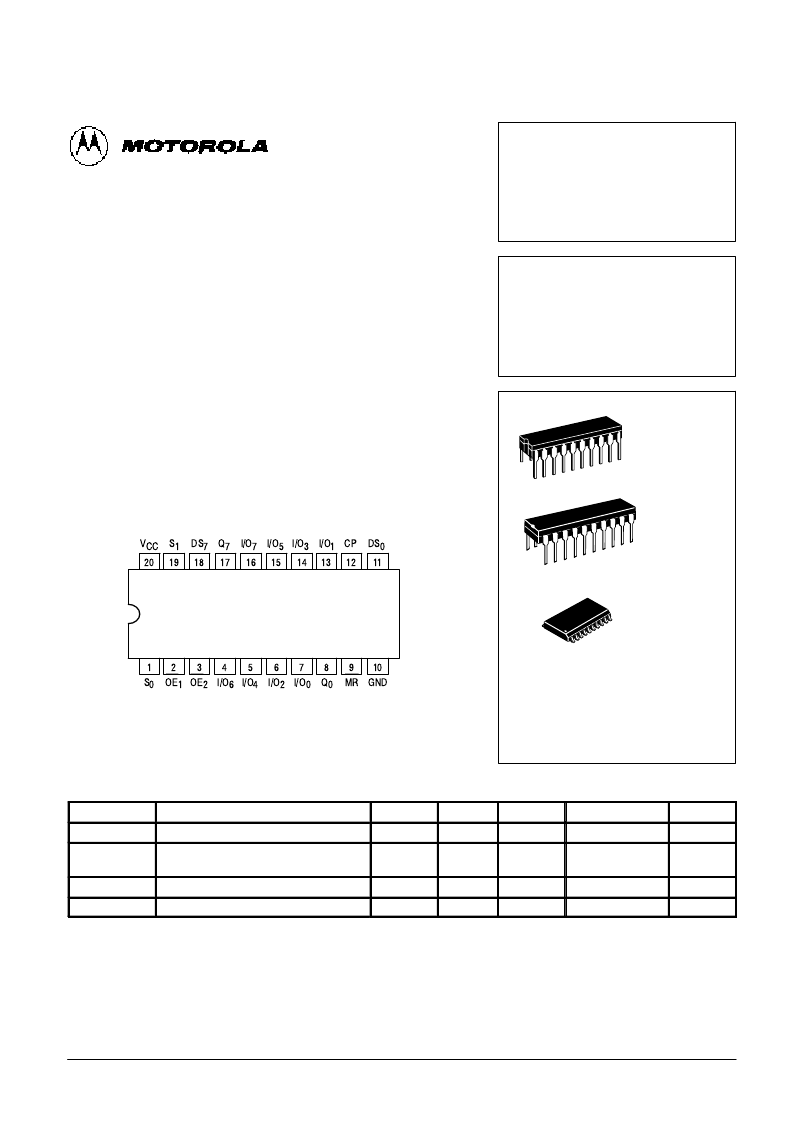

4-242
FAST AND LS TTL DATA
8-INPUT UNIVERSAL
SHIFT/STORAGE REGISTER
WITH COMMON PARALLEL I/O PINS
The MC74F299 is an 8-Bit Universal Shift/Storage Register with 3-state
outputs. Four modes of operation are possible: hold (store), shift left, shift right
and load data.
The parallel load inputs and flip-flop outputs are multiplexed to reduce the
total number of package pins. Separate outputs are provided for flip-flops Q0
and Q7 to allow easy cascading. A separate active LOW Master Reset is used
to reset the register.
Common I/O for Reduced Pin Count
Four Operation Modes: Shift left, Shift Right, Load and Store
Separate Shift Right Serial Input and Shift Left Serial Input for Easy
Cascading
3-State Outputs for Bus Oriented Applications
Input Clamp Diodes Limit High-Speed Termination Effects
CONNECTION DIAGRAM
GUARANTEED OPERATING RANGES
Symbol
Parameter
Min
Typ
Max
Unit
VCC
Supply Voltage
74
4.5
5.0
5.5
V
TA
Operating Ambient
Temperature Range
74
0
25
70
°
C
IOH
IOL
Output Current — High
74
–1.0/–3.0
mA
Output Current — Low
74
20/24
mA
MC74F299
8-INPUT UNIVERSAL
SHIFT/STORAGE REGISTER
WITH COMMON
PARALLEL I/O PINS
FAST
SCHOTTKY TTL
ORDERING INFORMATION
MC74FXXXJ
MC74FXXXN
MC74FXXXDW SOIC
Ceramic
Plastic
20
1
J SUFFIX
CERAMIC
CASE 732-03
20
1
N SUFFIX
PLASTIC
CASE 738-03
20
1
DW SUFFIX
SOIC
CASE 751D-03
