MC74VCX162244
MOTOROLA
LCX DATA
BR1339 — REV 2
6

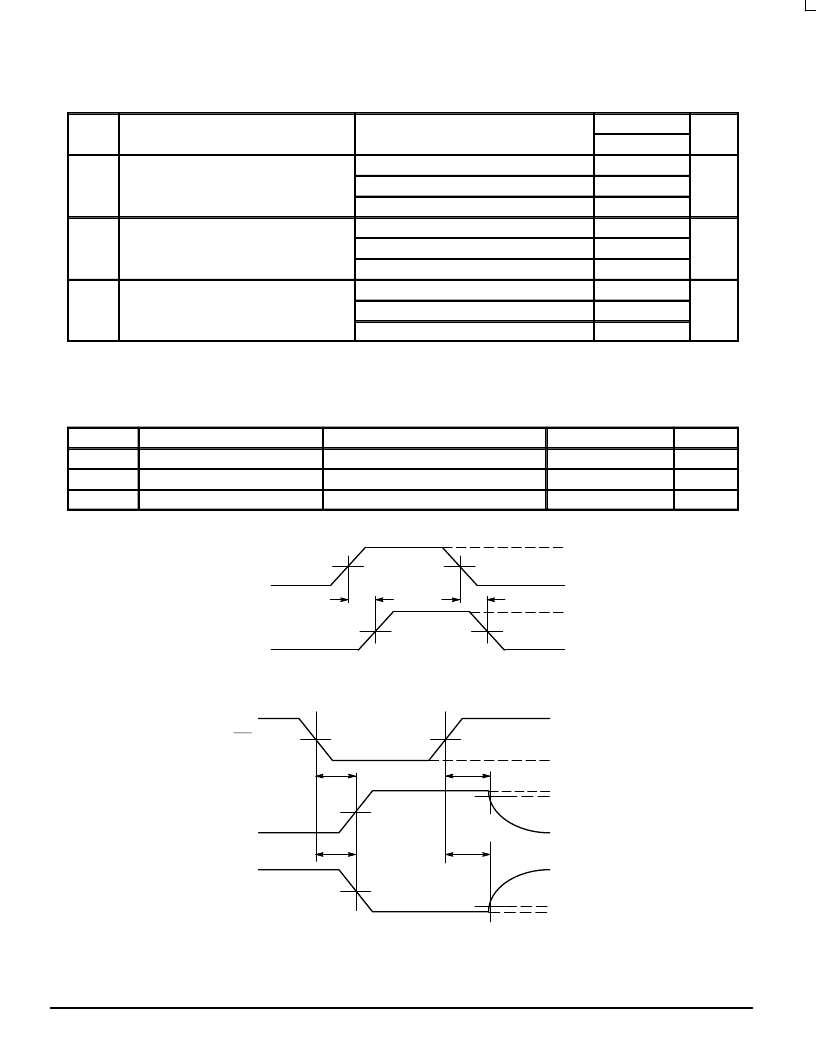

DYNAMIC SWITCHING CHARACTERISTICS
TA = +25
°
C
Symbol
Characteristic
Condition
Typ
Unit
VOLP
Dynamic LOW Peak Voltage
VCC = 1.8V, CL = 30pF, VIH = VCC, VIL = 0V
0.15
V
(Note 6.)
VCC = 2.5V, CL = 30pF, VIH = VCC, VIL = 0V
0.25
VCC = 3.3V, CL = 30pF, VIH = VCC, VIL = 0V
0.35
VOLV
Dynamic LOW Valley Voltage
VCC = 1.8V, CL = 30pF, VIH = VCC, VIL = 0V
–0.15
V
(Note 6.)
VCC = 2.5V, CL = 30pF, VIH = VCC, VIL = 0V
–0.25
VCC = 3.3V, CL = 30pF, VIH = VCC, VIL = 0V
–0.35
VOHV
Dynamic HIGH Valley Voltage
VCC = 1.8V, CL = 30pF, VIH = VCC, VIL = 0V
1.55
V
(Note 7.)
VCC = 2.5V, CL = 30pF, VIH = VCC, VIL = 0V
2.05
VCC = 3.3V, CL = 30pF, VIH = VCC, VIL = 0V
2.65
6. Number of outputs defined as “n”. Measured with “n–1” outputs switching from HIGH–to–LOW or LOW–to–HIGH. The remaining output is
measured in the LOW state.
7. Number of outputs defined as “n”. Measured with “n–1” outputs switching from HIGH–to–LOW or LOW–to–HIGH. The remaining output is
measured in the HIGH state.
CAPACITIVE CHARACTERISTICS
Symbol
Parameter
Condition
Typical
Unit
CIN
Input Capacitance
Note 8.
6
pF
COUT
Output Capacitance
Note 8.
7
pF
CPD
8. VCC = 1.8, 2.5 or 3.3V; VI = 0V or VCC.
Power Dissipation Capacitance
Note 8., 10MHz
20
pF
WAVEFORM 1 – PROPAGATION DELAYS
tR = tF = 2.0ns, 10% to 90%; f = 1MHz; tW = 500ns
VIH
0V
VOH
VOL
Dn
On
tPHL
tPLH
WAVEFORM 2 – OUTPUT ENABLE AND DISABLE TIMES
tR = tF = 2.0ns, 10% to 90%; f = 1MHz; tW = 500ns
Figure 3. AC Waveforms
VIH
0V
≈
0V
OEn
On
tPZH
≈
VCC
tPHZ
tPZL
tPLZ
On
Vm
Vm
Vm
Vm
Vm
Vm
Vm
VOH
Vy
Vx
VOL
Vm
