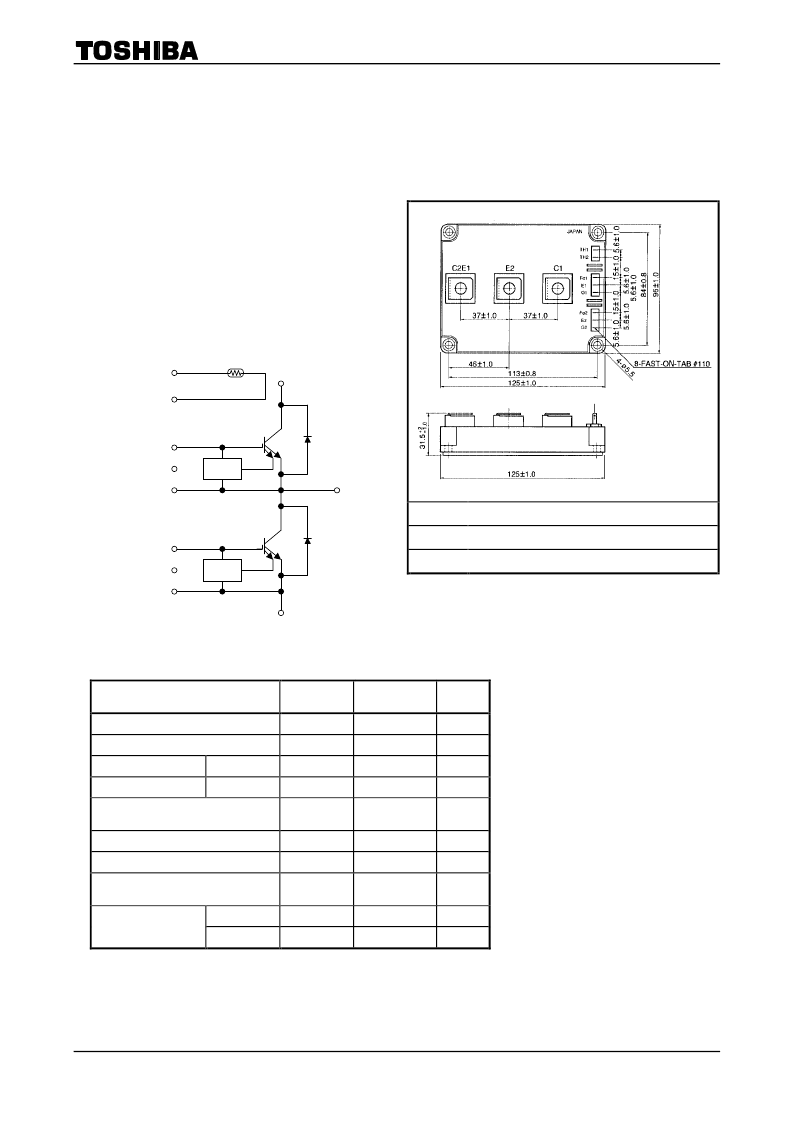

MG800J2YS50A
2002-10-31
1
TOSHIBA IGBT Module Silicon N Channel IGBT
MG800J2YS50A
High power switching applications
Motor control applications
The electrodes are isolated from case.
Enhancement-mode
Thermal output terminal (TH)
Equivalent Circuit
Maximum Ratings
(Ta 25°C)
Characteristics
Symbol
Rating
Unit
Collector-emitter voltage
V
CES
600
V
Gate-emitter voltage
V
GES
20
V
Collector current
DC
I
C
800
A
Forward current
DC
I
F
800
A
Collector power dissipation
(Tc 25°C)
P
C
2900
W
Junction temperature
T
j
150
°C
Storage temperature range
T
stg
40~125
°C
Isolation voltage
V
Isol
2500
(AC 1 min)
V
Terminal: M8
10
N
m
Screw torque
Mounting: M5
3
N
m
Unit: mm
JEDEC
―
JEITA
―
TOSHIBA
2-126A1A
Weight: 680 g (typ.)
TH1
TH2
G1
Fo1
E1
G2
Fo2
E2
E1/C2
Ｃ
1
E2
