MIG300Q2CMB1X
2001-11-13
1
TOSHIBA Intelligent Power Module Silicon N Channel IGBT
MIG300Q2CMB1X
(1200V/300A 2in1)
High Power
Switching
Applications
Motor Control Applications
Integrates inverter power circuits and control circuits (IGBT drive unit, units for protection against short-circuit
current, overcurrent, undervoltage and overtemperature) into a single package.
The electrodes are isolated from the case.
Low thermal resistance
V
CE (sat)
= 2.4 V (typ.)
UL recognized: File No.E87989
Weight: 380 g (typ.)

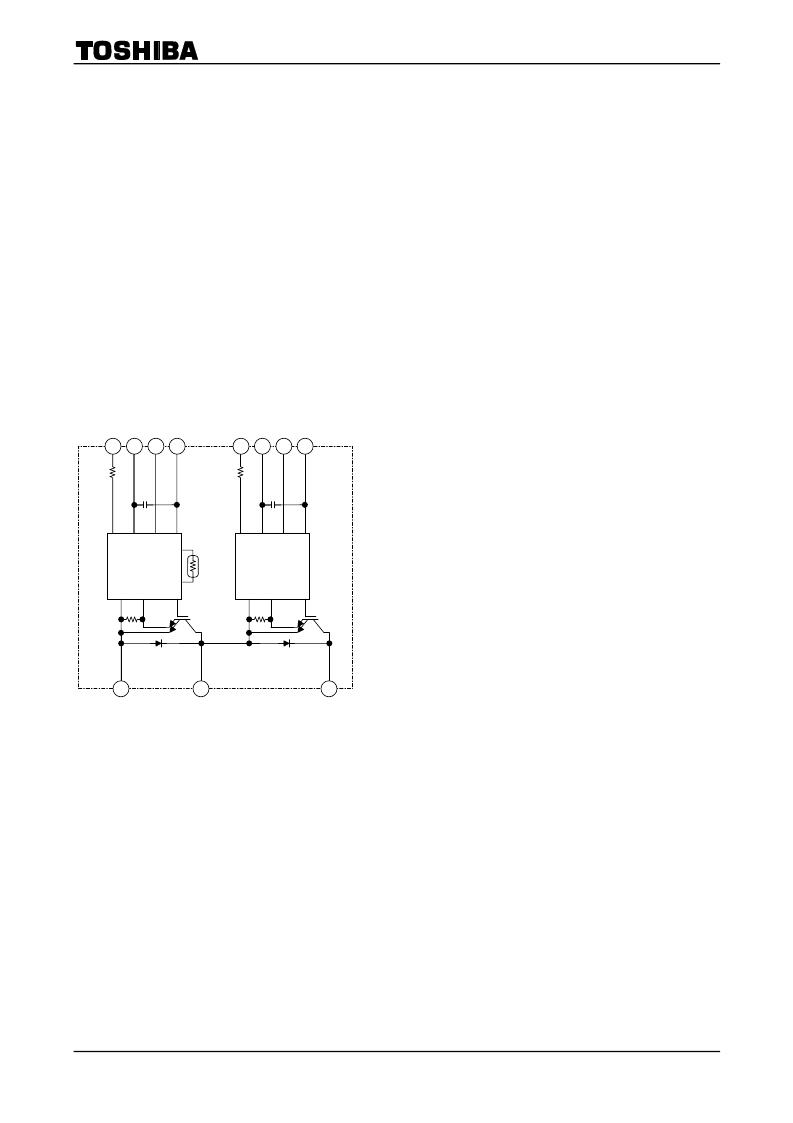

Equivalent Circuit
1.
FO (L)
2.
GND (L)
3.
IN (L)
4.
V
D
(L)
5.
FO (H)
6.
GND (H)
7.
IN (H)
8.
V
D
(H)
FO GND IN V
D
1
2
3
4
GND V
S
OUT
C2/E1
FO GND IN V
D
5
6
7
8
GND V
S
OUT
C1
E2
