DESCRIPTION
The laser driver IC were designed for use in
2.5Gb/s lightwave applications.
FEATURES
-High speed operation
tr/tf = 80ps (RL=25
)
-ECL/SCFL compatible interface
-Adjustable outout current
Iout = 60mA
-Low Power Dissipation
Vss = -5.2V, P
D
= 700mW
APPLICATION
- 2.5Gb/s optical transmitter

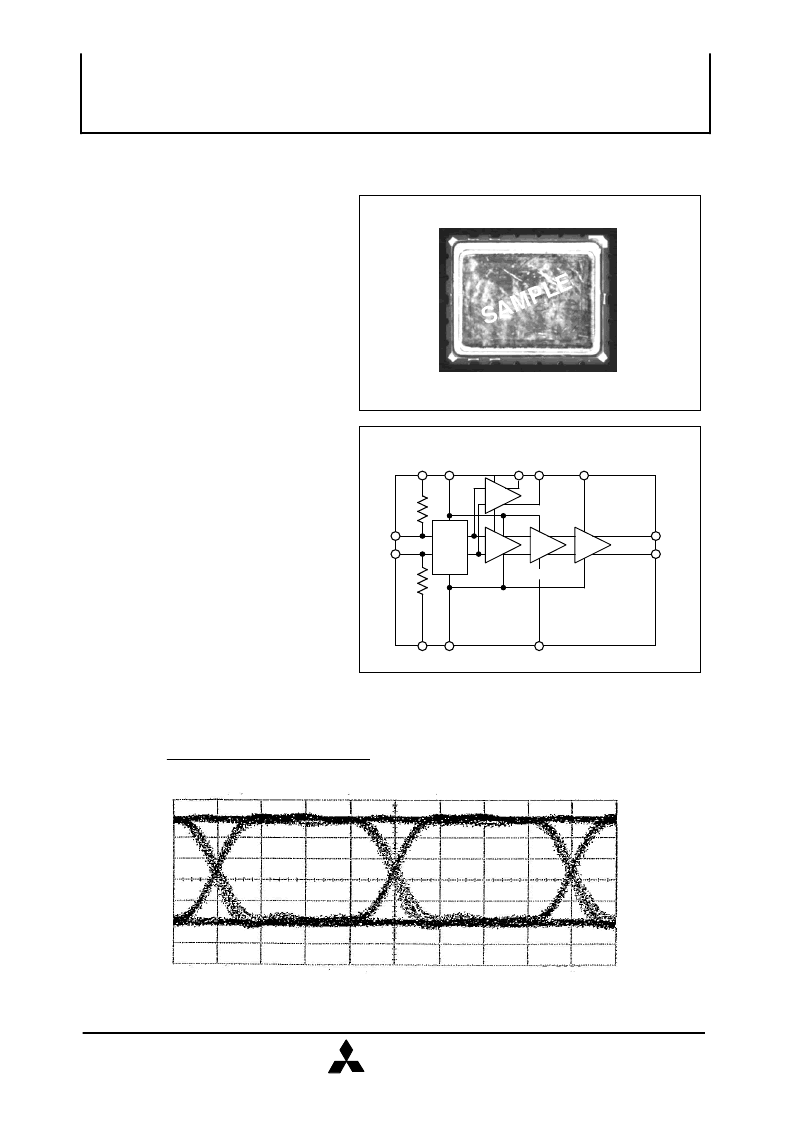

TYPICAL CHARACTERISTIC (Ta = 25oC)
Output waveform (@2.5Gb/s)
Photograph of Laser Driver IC
Package Size : 9.6mm x 7.6mm x 1.6mm
10 mA/div. 100 ps/div.
CIRCUIT DIAGRAM
V
T+
GND
V
IN
V
REF
I
OUT
I
MON
V
SS
V
T-
Driverr
V
MWA
VMARK+VMARK-
IMOD
Level
Shift
Mark
Density
Input Buffer
Vss = -5.2V, I
MOD
= 3.2mA (@2.5Gb/s), PN : 2
11
-1
MITSUBISHI
ELECTRIC
(1/2) as of Sep. , 1997
MITSUBISHI SEMICONDUCTOR <GaAs digital IC>
2.5Gb/s LASER DRIVER
FOR OPTICAL TRANSMITTER
Some parametric limits are subject to change.
PRELIMINARY
ML0131
