1

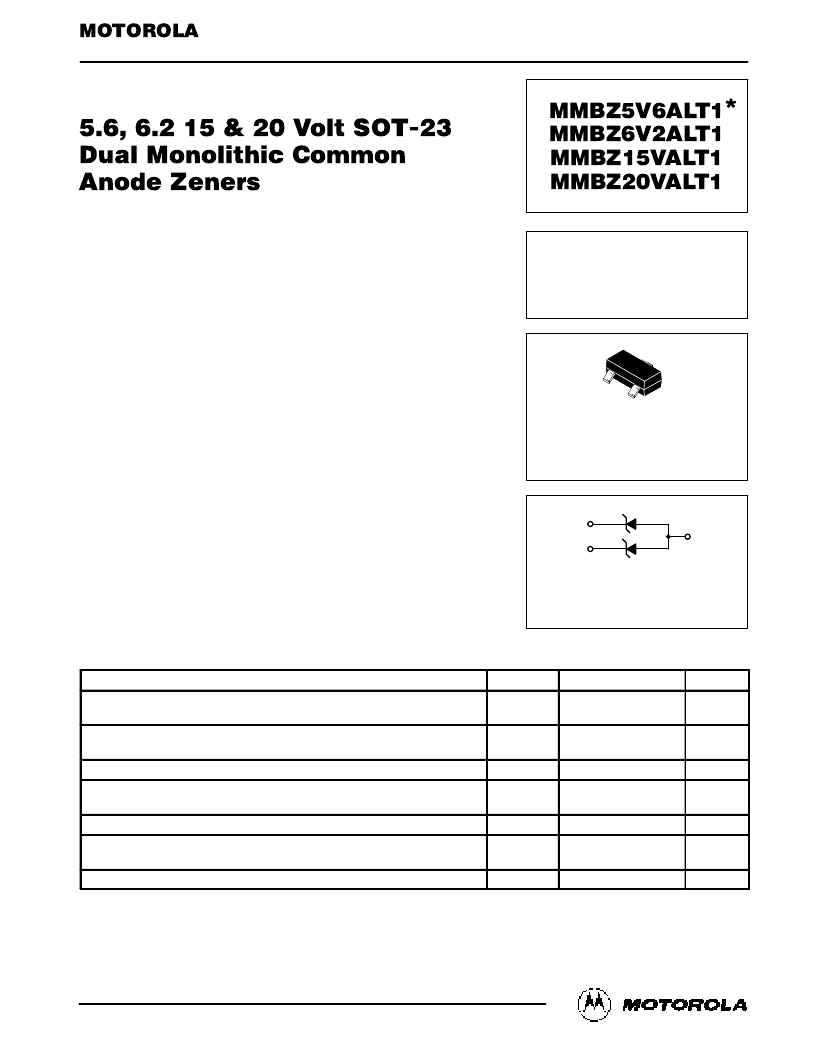

MOTOROLA
MMBZ5V6ALT1 MMBZ6V2ALT1 MMBZ15VALT1 MMBZ20VALT1
"%
& "!"% " "!
!" !#$
Transient Voltage Suppressors
for ESD Protection
These dual monolithic silicon zener diodes are designed for applications
requiring transient overvoltage protection capability. They are intended for use
in voltage and ESD sensitive equipment such as computers, printers, business
machines, communication systems, medical equipment and other applications.
Their dual junction common anode design protects two separate lines using
only one package. These devices are ideal for situations where board space is
at a premium.
Specification Features:
SOT–23 Package Allows Either Two Separate Unidirectional
Configurations or a Single Bidirectional Configuration
Peak Power — 24 or 40 Watts @ 1.0 ms (Unidirectional),
per Figure 5 Waveform
Maximum Clamping Voltage @ Peak Pulse Current
Low Leakage < 5.0
μ
A
ESD Rating of Class N (exceeding 16 kV) per the Human Body Model
Mechanical Characteristics:
Void Free, Transfer–Molded, Thermosetting Plastic Case
Corrosion Resistant Finish, Easily Solderable
Package Designed for Optimal Automated Board Assembly
Small Package Size for High Density Applications
Available in 8 mm Tape and Reel
Use the Device Number to order the 7 inch/3,000 unit reel. Replace
the “T1” with “T3” in the Device Number to order the 13 inch/10,000 unit reel.
THERMAL CHARACTERISTICS
(TA = 25
°
C unless otherwise noted)
Characteristic
Symbol
Value
Unit
Peak Power Dissipation @ 1.0 ms (1)
@ TA
≤
25
°
C
MMBZ5V6ALT1, MMBZ6V2ALT1
MMBZ15VALT1, MMBZ20VALT1
Ppk
24
40
Watts
Total Power Dissipation on FR–5 Board (2) @ TA = 25
°
C
Derate above 25
°
C
°
PD
°
225
1.8
°
mW
°
mW/
°
C
Thermal Resistance Junction to Ambient
R
θ
JA
°
PD
°
556
°
C/W
Total Power Dissipation on Alumina Substrate (3) @ TA = 25
°
C
Derate above 25
°
C
300
2.4
°
mW
mW/
°
C
Thermal Resistance Junction to Ambient
R
θ
JA
TJ
Tstg
417
°
C/W
Junction and Storage Temperature Range
– 55 to +150
°
C
Lead Solder Temperature — Maximum (10 Second Duration)
TL
260
°
C
(1) Non–repetitive current pulse per Figure 5 and derate above TA = 25
°
C per Figure 6.
(2) FR–5 = 1.0 x 0.75 x 0.62 in.
(3) Alumina = 0.4 x 0.3 x 0.024 in., 99.5% alumina
*Other voltages may be available upon request
Thermal Clad is a trademark of the Bergquist Company
Preferred
devices are Motorola recommended choices for future use and best overall value.
SEMICONDUCTOR TECHNICAL DATA
Order this document
by MMBZ5V6ALT1/D
Rev 1
SOT–23 COMMON ANODE DUAL
ZENER OVERVOLTAGE
TRANSIENT SUPPRESSORS
24 & 40 WATTS
PEAK POWER
CASE 318–08
STYLE 12
LOW PROFILE SOT–23
PLASTIC
PIN 1. CATHODE
2. CATHODE
3. ANODE
1
3
2
Motorola Preferred Devices
1
2
3
