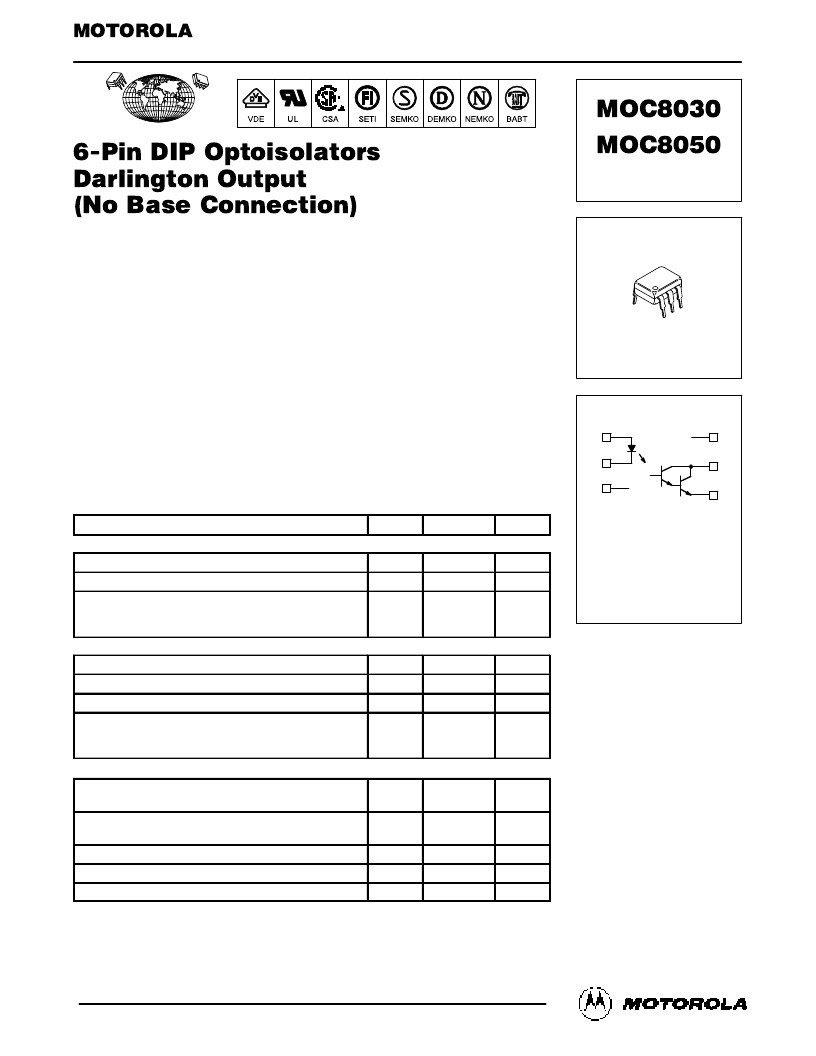

1
Motorola Optoelectronics Device Data
! !
! "!"!
!
The MOC8030 and MOC8050 devices consist of gallium arsenide infrared
emitting diodes optically coupled to monolithic silicon photodarlington detec-
tors. The chip to Pin 6 base connection has been eliminated to improve output
performance in high noise environments.
They are best suited for use in applications susceptible to high EMI levels.
No Base Connection for Improved Noise Immunity
High Collector–Emitter Breakdown Voltage — 80 Volts Minimum
Higher Sensitivity to Low Input Drive Current
To order devices that are tested and marked per VDE 0884 requirements, the
suffix ”V” must be included at end of part number. VDE 0884 is a test option.
Applications
Appliances, Measuring Instruments
I/O Interfaces for Computers
Programmable Controllers
Portable Electronics
Interfacing and coupling systems of different potentials and impedance
Solid State Relays
MAXIMUM RATINGS
(TA = 25
°
C unless otherwise noted)
Rating
Symbol
Value
Unit
INPUT LED
Reverse Voltage
VR
IF
PD
3
Volts
Forward Current — Continuous
60
mA
LED Power Dissipation @ TA = 25
°
C
with Negligible Power in Output Detector
Derate above 25
°
C
120
1.41
mW
mW/
°
C
OUTPUT DETECTOR
Collector–Emitter Voltage
VCEO
IC
80
Volts
Collector Current Continuous
150
mA
Emitter–Collector Voltage
VECO
PD
5
Volts
Detector Power Dissipation @ TA = 25
°
C
with Negligible Power in Input LED
Derate above 25
°
C
150
1.76
mW
mW/
°
C
TOTAL DEVICE
Isolation Surge Voltage(1)
(Peak ac Voltage, 60 Hz, 1 sec Duration)
VISO
7500
Vac(pk)
Total Device Power Dissipation @ TA = 25
°
C
Derate above 25
°
C
Ambient Operating Temperature Range(2)
Storage Temperature Range(2)
PD
250
2.94
mW
mW/
°
C
TA
Tstg
TL
–55 to +100
°
C
°
C
°
C
–55 to +150
Soldering Temperature (10 sec, 1/16
″
from case)
1. Isolation surge voltage is an internal device dielectric breakdown rating.
1.
For this test, Pins 1 and 2 are common, and Pins 4 and 5 are common.
2. Refer to Quality and Reliability Section in Opto Data Book for information on test conditions.
Preferred
devices are Motorola recommended choices for future use and best overall value.
GlobalOptoisolator is a trademark of Motorola, Inc.
260
Order this document
by MOC8050/D
SEMICONDUCTOR TECHNICAL DATA
GlobalOptoisolator
SCHEMATIC
[CTR = 500% Min]
STANDARD THRU HOLE
CASE 730A–04
STYLE 3 PLASTIC
[CTR = 300% Min]
Motorola Preferred Devices
PIN 1. LED ANODE
2. LED CATHODE
3. N.C.
4. EMITTER
5. COLLECTOR
6. N.C.
1
2
3
6
5
4
6
1
REV 2
