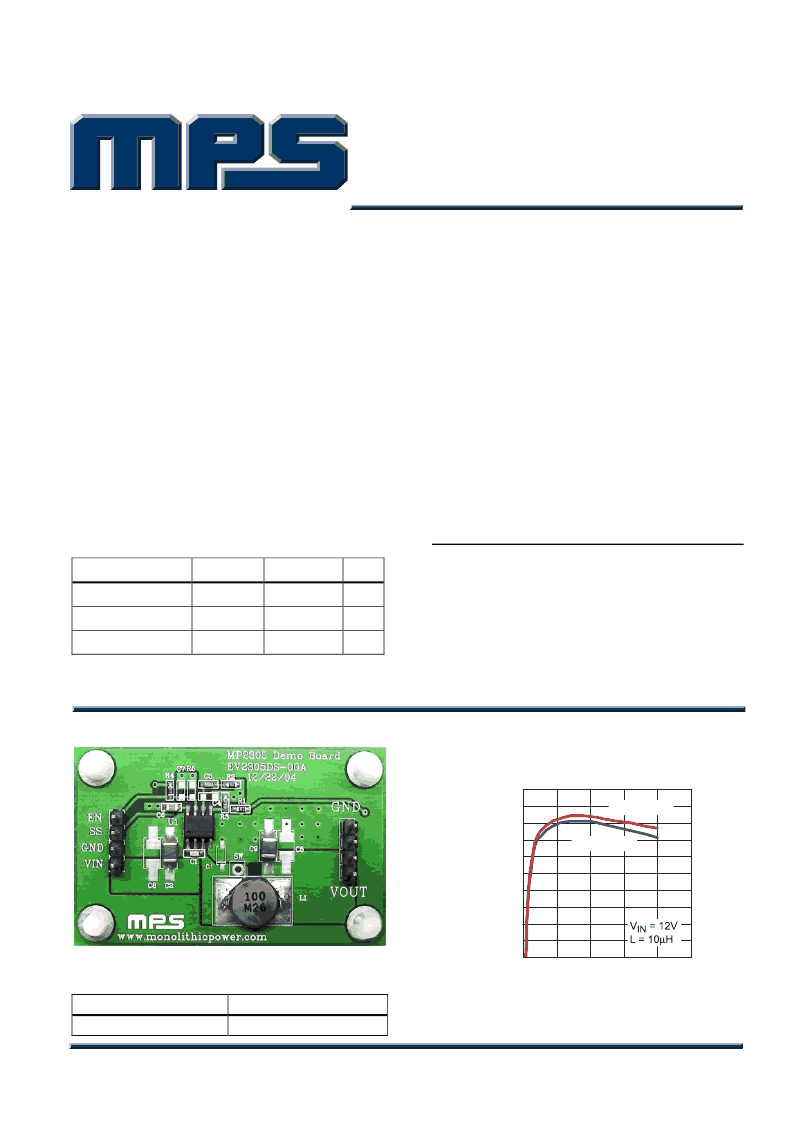

EV2305DS-00A
4.75V to 23V IN, 2A OUT
Synchronous Buck Converter
EVALUATION BOARD
EV2305DS-00A Rev. 1.5f
9/14/2005
www.MonolithicPower.com
1
MPS Proprietary Information. Unauthorized Photocopy and Duplication Prohibited.
2005 MPS. All Rights Reserved.
The Future of Analog IC Technology
TM
TM
DESCRIPTION
The EV2305DS-00A is the evaluation board of
MPS’ MP2305 synchronous buck converter. It
has a wide supply range from 4.75V to 23V and
a continuous output current up to 2A. It features
synchronous rectification for high efficiency with
integrated
high-side
MOSFETs. The output voltage is preset to 3.3V,
but can be easily adjusted to other levels from
0.923V. Current mode control and integrated
power MOSFETs minimize component counts,
board area, and solution cost. Fault condition
protections include cycle-by-cycle current limiting,
thermal shutdown and under-voltage lockout.
Programmable soft-start reduces turn-on stress.
Small SO-8 package minimizes board area.
ELECTRICAL SPECIFICATIONS
and
low-side
power
Parameter
Symbol
Value
Units
Supply Voltage
V
IN
4.75 to 23
V
Output Voltage
V
OUT
3.3
V
Output Current
I
OUT
0 to 2
A
FEATURES
Up to 2A Output Current
Wide 4.75V to 23V Operating Input Range
Monolithic Synchronous Buck with 130m
High-Side and Low-Side FETs
Fixed 340KHz Frequency
All Ceramic Input and Output Capacitors
Programmable Soft-Start
Programmable Input Under Voltage Lockout
APPLICATIONS
Distributed Power Systems
Networking Systems
FPGA, DSP, ASIC Power Supplies
Green Electronics/ Appliances
Notebook Computers
“MPS” and “The Future of Analog IC Technology” are Trademarks of Monolithic
Power Systems, Inc.
EV2305DS-00A EVALUATION BOARD
(L x W x H) 2.0” x 1.5” x 0.5”
(5.0cm x 3.8cm x 1.2cm)
Board Number
EV2305DS-00A
MPS IC Number
MP2305DS
100
95
90
85
80
75
70
65
60
55
50
E
0
1.0
2.0
2.5
1.5
0.5
LOAD CURRENT (A)
MP2305-EC01
Efficiency vs
Load Current
V
OUT
= 3.3V
V
OUT
= 2.5V
