參數資料
| 型號： | MPF102G |
| 廠商： | ON SEMICONDUCTOR |
| 元件分類： | 功率晶體管 |
| 英文描述： | JFET VHF Amplifier |
| 中文描述： | VHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, JFET, TO-92 |
| 封裝： | LEAD FREE, CASE 29-11, TO-226AA, 3 PIN |
| 文件頁數： | 1/7頁 |
| 文件大小： | 155K |
| 代理商： | MPF102G |
Semiconductor Components Industries, LLC, 2006
January, 2006 Rev. 3
1
Publication Order Number:
MPF102/D
MPF102
Preferred Devices

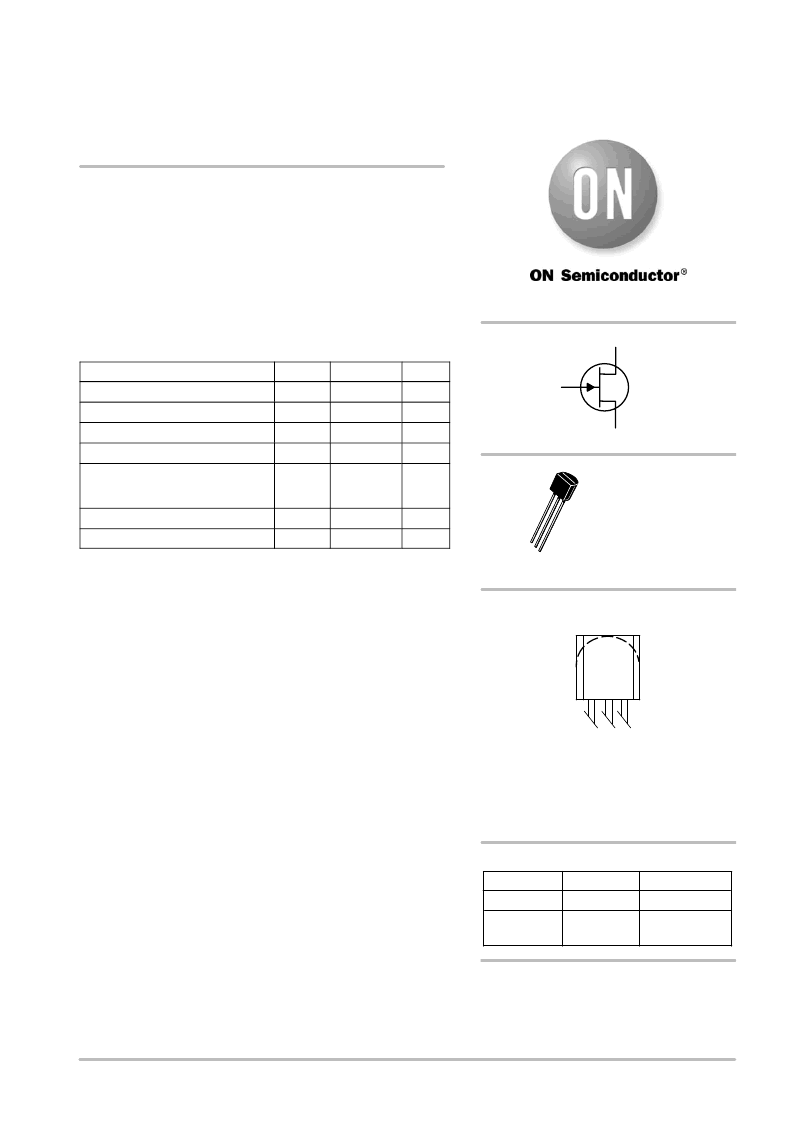

JFET VHF Amplifier
NChannel Depletion
Features
PbFree Package is Available*
MAXIMUM RATINGS
Rating
Symbol
Value
Unit
DrainSource Voltage
V
DS
25
Vdc
DrainGate Voltage
V
DG
25
Vdc
GateSource Voltage
V
GS
25
Vdc
Gate Current
I
G
10
mAdc
Total Device Dissipation
@ T
= 25
°
C
Derate above 25
°
C
P
D
350
2.8
mW
mW/
°
C
Junction Temperature Range
T
J
125
°
C
Storage Temperature Range
T
stg
65 to +150
°
C
Maximum ratings are those values beyond which device damage can occur.
Maximum ratings applied to the device are individual stress limit values (not
normal operating conditions) and are not valid simultaneously. If these limits are
exceeded, device functional operation is not implied, damage may occur and
reliability may be affected.
*For additional information on our PbFree strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
http://onsemi.com
2 SOURCE
3
GATE
1 DRAIN
TO92 (TO226AA)
CASE 2911
STYLE 5
1
23
MARKING DIAGRAM
MPF102 = Device Code
A
= Assembly Location
Y
= Year
WW
= Work Week
= PbFree Package
(Note: Microdot may be in either location)
MPF
102
AYWW
Preferred
devices are recommended choices for future use
and best overall value.
Device
Shipping
ORDERING INFORMATION
MPF102
1000 Units/Bulk
MPF102G
TO92
(PbFree)
1000 Units/Bulk
Package
TO92
