參數資料
| 型號： | MPN3404 |
| 廠商： | ON SEMICONDUCTOR |
| 元件分類： | 參考電壓二極管 |
| 英文描述： | SILICON PIN SWITCHING DIODE |
| 中文描述： | 20 V, SILICON, PIN DIODE, TO-92 |
| 封裝： | PLASTIC, CASE 182-06, TO-226AC, 2 PIN |
| 文件頁數： | 1/4頁 |
| 文件大小： | 32K |
| 代理商： | MPN3404 |

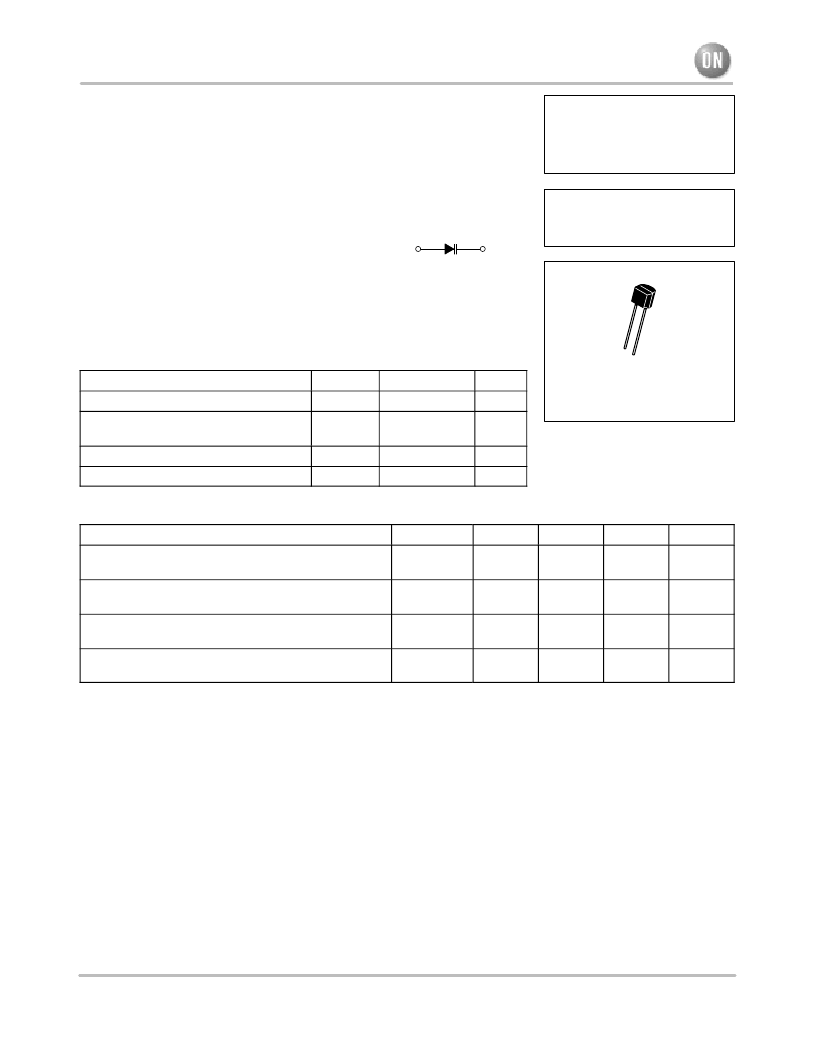

Silicon Pin Diode
This device is designed primarily for VHF band switching
applications but is also suitable for use in general–purpose switching
circuits. It is supplied in a cost–effective TO–92 type plastic package
for economical, high–volume consumer and industrial requirements.
Rugged PIN Structure Coupled with Wirebond
Construction for Optimum Reliability
Low Series Resistance @ 100 MHz
RS = 0.7 Ohms (Typ) @ IF = 10 mAdc
Sturdy TO–92 Style Package for Handling Ease
MAXIMUM RATINGS
Rating
Symbol
Value
Unit
Reverse Voltage
VR
PD
20
Vdc
Forward Power Dissipation @ TA = 25
°
C
Derate above 25
°
C
400
4.0
mW
mW/
°
C
Junction Temperature
TJ
Tstg
+125
°
C
Storage Temperature Range
–55 to +150
°
C
ELECTRICAL CHARACTERISTICS
(TA = 25
°
C unless otherwise noted)
Characteristic
Symbol
Min
Typ
Max
Unit
Reverse Breakdown Voltage
(IR = 10
μ
Adc)
V(BR)R
20
—
—
Vdc
Diode Capacitance
(VR = 15 Vdc, f = 1.0 MHz)
CT
—
1.3
2.0
pF
Series Resistance (Figure 5)
(IF = 10 mAdc)
RS
—
0.7
0.85
Reverse Leakage Current
(VR = 15 Vdc)
IR
—
—
0.1
μ
Adc
ON Semiconductor
Semiconductor Components Industries, LLC, 2001
November, 2001 – Rev. 2
1
Publication Order Number:
MPN3404/D
MPN3404
SILICON PIN
SWITCHING DIODE
1
2
CASE 182–06, STYLE 1
TO–92 (TO–226AC)
2
Cathode
1
Anode
